SEAT BELT & CHILD RESTRAINT SEAT

7102REAR SEAT & SEAT TRACK

→ Go to FIG 71-02

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-30010-A0iJCG1#200105-200706

IVORY,TRIM0#

main73023-30010-B2iJCG1#200105-200706

LT.GRAY,TRIM1#,2#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-30010-A0iJCG1#200105-200706

IVORY,TRIM0#

main73024-30010-B2iJCG1#200105-200706

LT.GRAY,TRIM1#,2#

73161PLATE, FRONT SHOULDER BELT ANCHOR, RH

main73161-51020iJCG1#200105

73162PLATE, FRONT SHOULDER BELT ANCHOR, LH

main73162-51020iJCG1#200105

73174COVER, FRONT SEAT BELT HOLE, LH

main73174-30050-A0iJCG10200105-200706

IVORY,TRIM0#

main73174-30050-C0iJCG10200105-200706

BLACK,TRIM2#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main73178-51010-B0iJCG1#200105-200706

LT.GRAY,TRIM1#

main73178-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

73178CCAP, SEAT BELT ANCHOR COVER

main73179-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main73179-51010-B0iJCG1#200105-200706

LT.GRAY,TRIM1#

main73179-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-51020iJCG1#200105

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-51030-A0iJCG1#200105-200212

IVORY,TRIM0#

main73210-51030-B0iJCG1#200105-200212

GRAY,TRIM1#

main73210-51030-C0iJCG1#200105-200212

BLACK,TRIM2#

main73210-51031-A0iJCG1#200212-200706

IVORY,TRIM0#

main73210-51031-B0iJCG1#200212-200706

GRAY,TRIM1#

main73210-51031-C0iJCG1#200212-200706

BLACK,TRIM2#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-51030-A0iJCG1#200105-200212

IVORY,TRIM0#

main73220-51030-B0iJCG1#200105-200212

GRAY,TRIM1#

main73220-51030-C0iJCG1#200105-200212

BLACK,TRIM2#

main73220-51031-A0iJCG1#200212-200706

IVORY,TRIM0#

main73220-51031-B0iJCG1#200212-200706

GRAY,TRIM1#

main73220-51031-C0iJCG1#200212-200706

BLACK,TRIM2#

73223COVER, SEAT BELT RETRACTOR

main73223-51030iJCG1#200105

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-51020iJCG1#200105

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-51020iJCG1#200105

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-51010-A0iJCG1#200105-200212

IVORY,TRIM0#

main73230-51010-B0iJCG1#200105-200212

LT.GRAY,TRIM1#

main73230-51010-C0iJCG1#200105-200212

BLACK,TRIM2#

main73230-51011-A0iJCG1#200212-200706

IVORY,TRIM0#

main73230-51011-B0iJCG1#200212-200706

LT.GRAY,TRIM1#

main73230-51011-C0iJCG1#200212-200706

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-51010-A0iJCG1#200105-200212

main73230-51010-B0iJCG1#200105-200212

main73230-51010-C0iJCG1#200105-200212

main73230-51011-A0iJCG1#200212-200706

main73230-51011-B0iJCG1#200212-200706

LT.GRAY,TRIM1#

main73230-51011-C0iJCG1#200212-200706

main73240-51010-A0iJCG10200105-200212

IVORY,TRIM0#

main73240-51010-C0iJCG10200105-200212

BLACK,TRIM2#

main73240-51011-A0iJCG10200212-200706

IVORY,TRIM0#

main73240-51011-C0iJCG10200212-200706

BLACK,TRIM2#

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-30060-A0iJCG1#200105-200706

IVORY,TRIM0#

main73343-30060-B2iJCG1#200105-200706

LT.GRAY,TRIM1#

main73343-30060-C0iJCG1#200105-200706

BLACK,TRIM2#

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73344-30050-A0iJCG1#200105-200706

IVORY,TRIM0#

main73344-30050-B2iJCG1#200105-200706

LT.GRAY,TRIM1#

main73344-30050-C0iJCG1#200105-200706

BLACK,TRIM2#

73345GUIDE, REAR SEAT SHOULDER BELT, CENTER

main73343-30060-A0iJCG1#200105-200706

IVORY,TRIM0#

main73343-30060-B2iJCG1#200105-200706

LT.GRAY,TRIM1#

main73343-30060-C0iJCG1#200105-200706

BLACK,TRIM2#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-51030-A0iJCG1#200105-200706

IVORY,TRIM0#

main73360-51030-B0iJCG1#200105-200706

GRAY,TRIM1#

main73360-51030-C0iJCG1#200105-200706

BLACK,TRIM2#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-51030-A0iJCG1#200105-200706

IVORY,TRIM0#

main73360-51030-B0iJCG1#200105-200706

GRAY,TRIM1#

main73360-51030-C0iJCG1#200105-200706

BLACK,TRIM2#

73373COVER, REAR SEAT SHOULDER BELT

main73373-33010-A1iJCG1#200105-200706

IVORY,TRIM0#

main73373-33010-B5iJCG1#200105-200706

LT.GRAY,TRIM1#

main73373-33010-C0iJCG1#200105-200706

BLACK,TRIM2#

73373ACOVER, REAR SEAT SHOULDER BELT, RH

main73373-30021-A0iJCG1#200105-200706

IVORY,TRIM0#

main73373-30021-B3iJCG1#200105-200706

LT.GRAY,TRIM1#

main73373-30021-C0iJCG1#200105-200706

BLACK,TRIM2#

73375COVER, REAR SEAT SHOULDER BELT, LH

main73375-30011-A0iJCG1#200105-200706

IVORY,TRIM0#

main73375-30011-B3iJCG1#200105-200706

LT.GRAY,TRIM1#

main73375-30011-C0iJCG1#200105-200706

BLACK,TRIM2#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-51020-A0iJCG1#200105-200706

IVORY,TRIM0#

main73470-51020-B0iJCG1#200105-200706

GRAY,TRIM1#

main73470-51020-C0iJCG1#200105-200706

BLACK,TRIM2#

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-51020-A0iJCG1#200105-200706

IVORY,TRIM0#

main73480-51020-B0iJCG1#200105-200706

GRAY,TRIM1#

main73480-51020-C0iJCG1#200105-200706

BLACK,TRIM2#

9010511036

main90105-11036

9010511038

main90105-11038

9017911018

main90179-11018

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

9356054016

main93560-54016

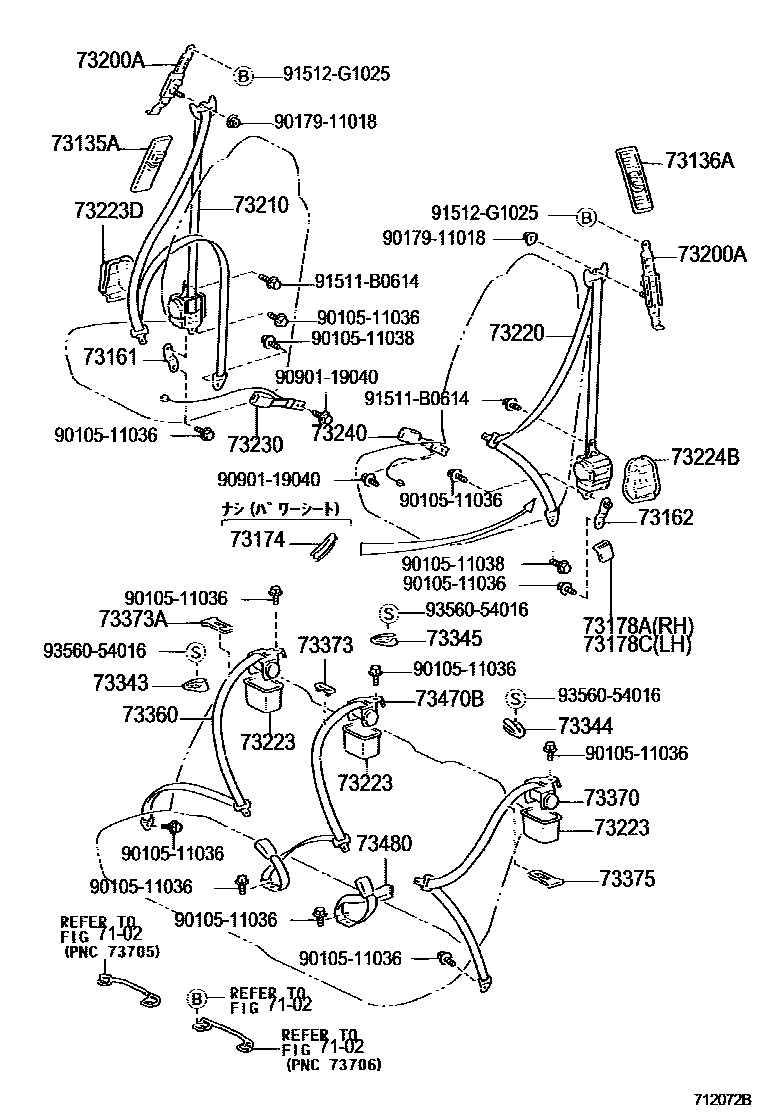

33 parts on this diagram · 1 diagram in section
