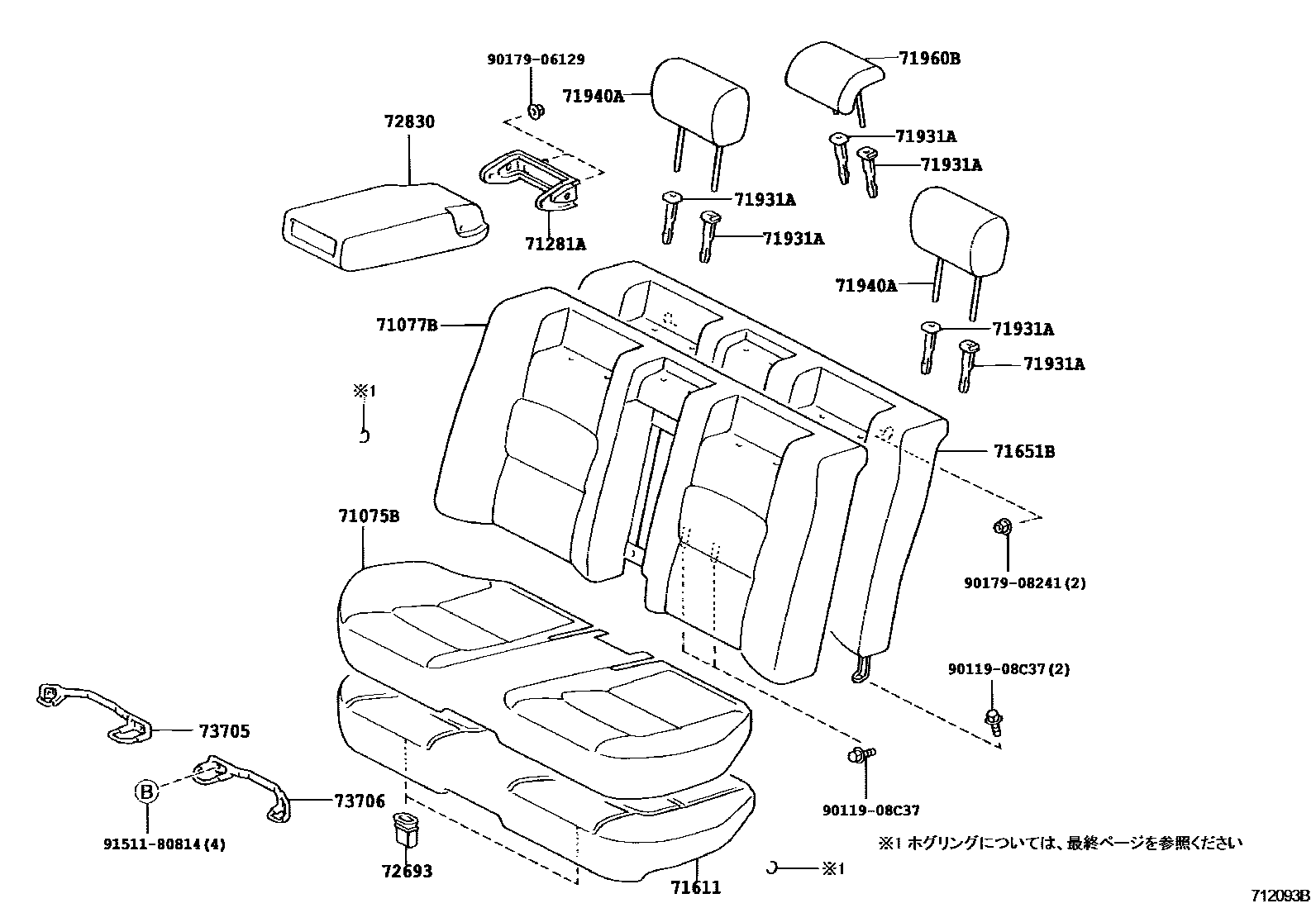

REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
71281AHINGE, REAR SEAT CENTER ARMREST
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
71960BHEADREST ASSY, REAR SEAT, CENTER
72693HOOK, REAR SEAT CUSHION LOCK
72830ARMREST ASSY, REAR SEAT, CENTER
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
9011908C37
main90119-08C37
9017906129
main90179-06129
9017908241
main90179-08241
9151180814
main91511-80814
16 parts on this diagram · 2 diagrams in section
