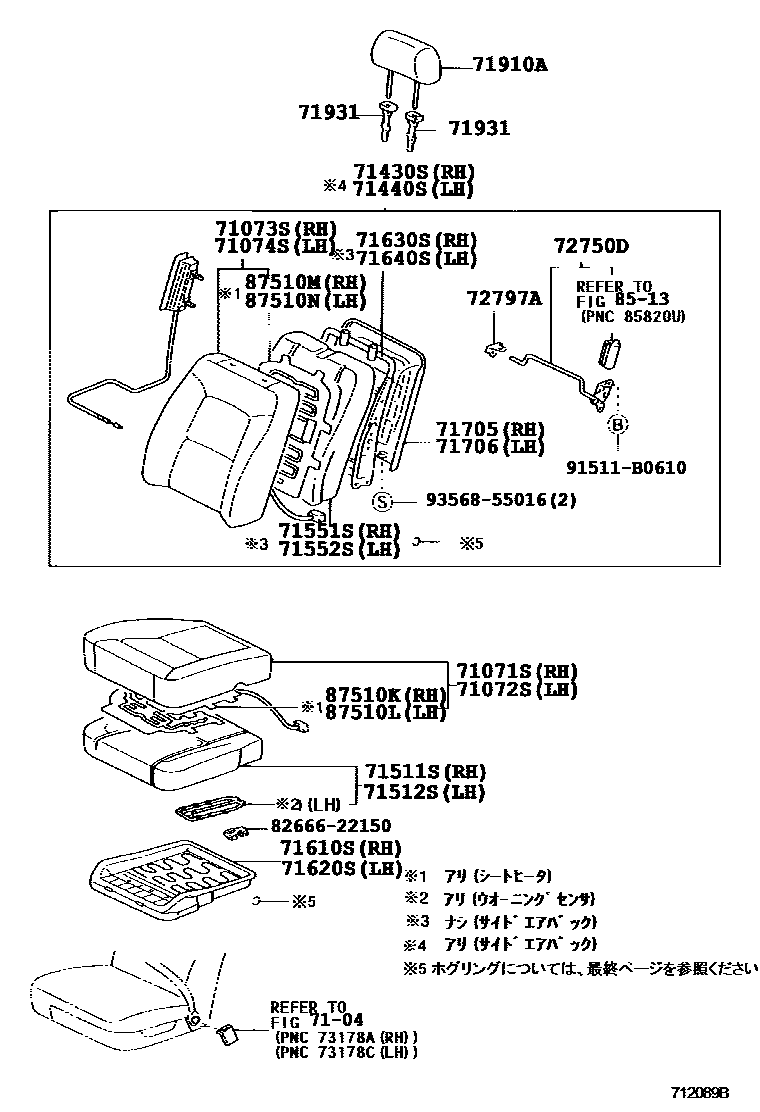

FRONT SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
72797ASPACER, LUMBAR SUPPORT
8513SEAT MOTOR & SEAT HEATER
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510MHEATER ASSY, FRONT SEATBACK, RH
87510NHEATER ASSY, FRONT SEATBACK, LH
8266622150HOLDER, CONNECTOR
main82666-22150
91511B0610
main91511-B0610
9356855016
main93568-55016
29 parts on this diagram · 4 diagrams in section
