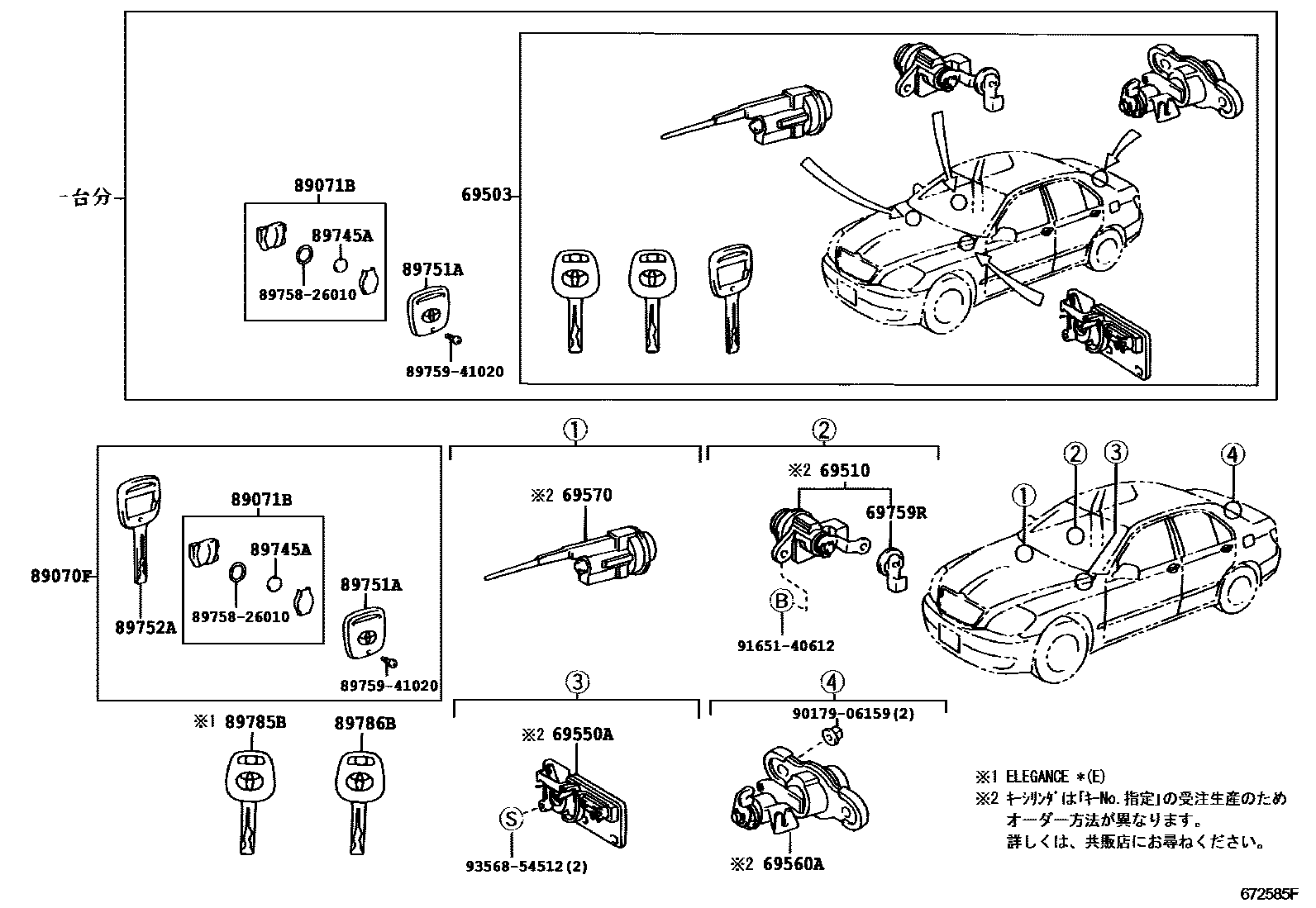

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-51050iJCG1#200105

main69005-51060iJCG10,15200212-200404

ELEGANCE *(E)

main69005-51080iJCG10,15200404

ELEGANCE *(E)

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-51010iJCG1#200105

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30130iJCG1#200105

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-51040iJCG1#200105

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-30210iJCG1#200105

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iJCG1#200105

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-51160iJCG10,11200105-200511

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-30010×2iJCG1#200105-200511

89745ABATTERY, TRANSMITTER

main89745-26010iJCG10,15200212-200404

ELEGANCE *(E)

89751ACOVER, TRANSMITTER HOUSING

main89751-51030×2iJCG1#200105-200511

89752ACASE, TRANSMITTER HOUSING

main89752-51010iJCG1#200105-200706

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-50070iJCG10,15200212-200404

ELEGANCE *(E)

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-50070iJCG1#200105-200706

8975826010PACKING, DOOR CONTROL TRANSMITTER

main89758-26010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9017906159

main90179-06159

9165140612

main91651-40612

9356854512

main93568-54512

18 parts on this diagram · 1 diagram in section
