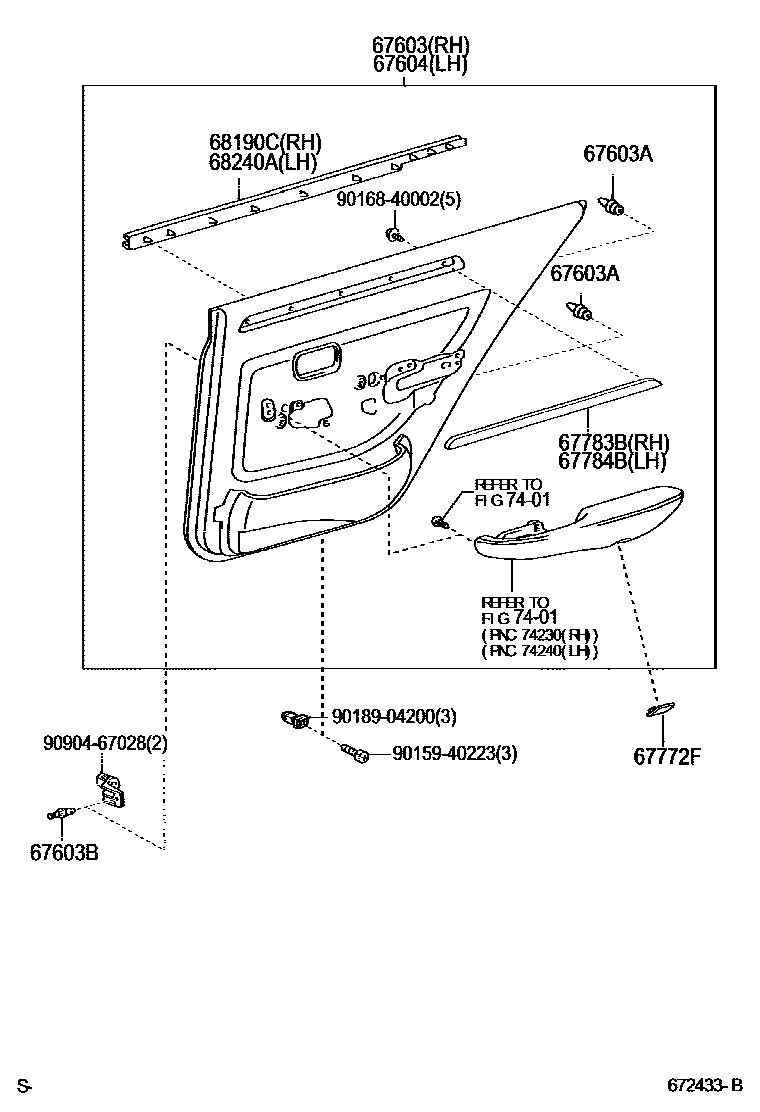

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-51120-A0iJCG1#200105-200301

IVORY,TRIM0#

sub67630-51121

main67630-51120-C0iJCG1#200105-200301

BLACK,TRIM2#

sub67630-51121

main67630-51120-C1iJCG10,15200205-200305

sub67630-51121

main67630-51121-A0iJCG1#200301-200706

sub67630-51121

main67630-51121-C0iJCG1#200301-200404

sub67630-51121

main67630-51121-C2iJCG1#200305-200404

sub67630-51121

main67630-51121-C3iJCG1#200404-200706

sub67630-51121

main67630-51130-A1iJCG1#200105-200301

sub67630-51131

main67630-51130-B0iJCG1#200105-200301

sub67630-51131

main67630-51130-C1iJCG1#200105-200301

sub67630-51131

main67630-51131-A0iJCG1#200301-200706

main67630-51131-B0iJCG1#200301-200706

main67630-51131-C0iJCG1#200301-200404

main67630-51131-C1iJCG1#200404-200706

main67630-51180-C0iJCG1#200404-200512

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-32120iJCG1#200106

main90467-09203iJCG1#200106

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-22iJCG1#200105-200706

BLACK,TRIM2#

sub90467-07066

main90467-07066-A0iJCG1#200105-200706

IVORY,TRIM0#

sub90467-07066

main90467-07066-P5iJCG1#200105-200706

LT.GRAY,TRIM1#

sub90467-07066

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-51120-A0iJCG1#200105-200301

IVORY,TRIM0#

sub67640-51121

main67640-51120-C0iJCG1#200105-200301

BLACK,TRIM2#

sub67640-51121

main67640-51120-C1iJCG10,15200205-200305

sub67640-51121

main67640-51121-A0iJCG1#200301-200706

sub67640-51121

main67640-51121-C0iJCG1#200301-200404

sub67640-51121

main67640-51121-C2iJCG1#200305-200404

sub67640-51121

main67640-51121-C3iJCG1#200404-200706

sub67640-51121

main67640-51130-A1iJCG1#200105-200301

sub67640-51131

main67640-51130-B0iJCG1#200105-200301

sub67640-51131

main67640-51130-C1iJCG1#200105-200301

sub67640-51131

main67640-51131-A0iJCG1#200301-200706

main67640-51131-B0iJCG1#200301-200706

main67640-51131-C0iJCG1#200301-200404

main67640-51131-C1iJCG1#200404-200706

main67640-51180-C0iJCG1#200404-200512

67772FCAP, REAR DOOR TRIM RETAINER

main67772-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main67772-51010-B0iJCG1#200105-200706

LT.GRAY,TRIM1#

main67772-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

67783BORNAMENT SUB-ASSY, REAR DOOR TRIM, RH

main67783-51060-B0iJCG10,15200205-200305

main67783-51060-B0iJCG1#200105-200706

GRAY,TRIM1#

main67783-51060-D0iJCG1#200105-200706

RED,TRIM2#

main67783-51060-E0iJCG1#200305-200404

main67783-51060-E0iJCG1#200105-200706

BROWN,TRIM0#

67784BORNAMENT SUB-ASSY, REAR DOOR TRIM, LH

main67784-51060-B0iJCG10,15200205-200305

main67784-51060-B0iJCG1#200105-200706

GRAY,TRIM1#

main67784-51060-D0iJCG1#200105-200706

RED,TRIM2#

main67784-51060-E0iJCG1#200105-200706

BROWN,TRIM0#

main67784-51060-E0iJCG1#200305-200404

68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH

main68190-51030iJCG1#200105-200706

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-51040iJCG1#200105-200706

7401

9015940223

main90159-40223

9016840002

main90168-40002

9018904200

main90189-04200

9090467028

main90904-67028

14 parts on this diagram · 2 diagrams in section
