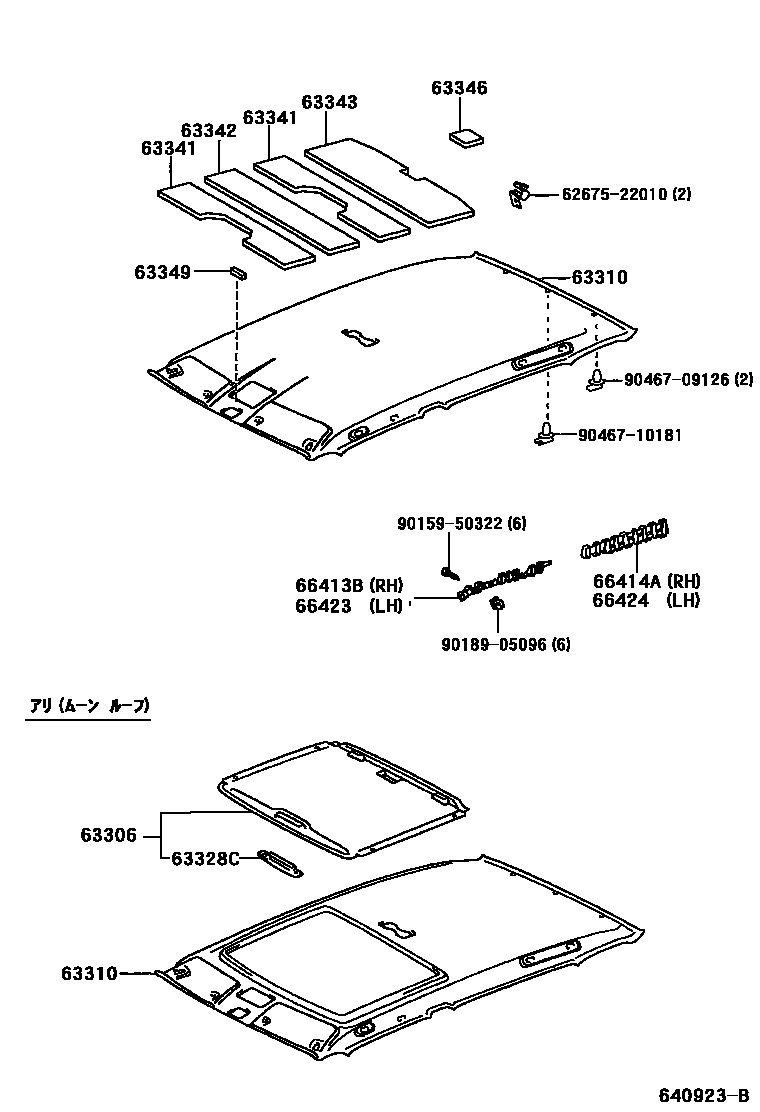

Toyota BREVIS — ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
63328CKNOB, SUNSHADE TRIM
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63346PAD, ROOF SILENCER, NO.6
63349PAD, ROOF SILENCER, NO.9
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
6267522010PLATE, QUARTER TRIM SET, NO.2
9015950322
9018905096
9046709126
9046710181
17 parts on this diagram · 1 diagram in section
ROOF HEADLINING & SILENCER PAD for Toyota BREVIS
This section contains 17 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota BREVIS. Key components include: TRIM SUB-ASSY, SUNSHADE, HEADLINING ASSY, ROOF, KNOB, SUNSHADE TRIM, PAD, ROOF SILENCER, NO.1, PAD, ROOF SILENCER, NO.2.
