SIDE MEMBER

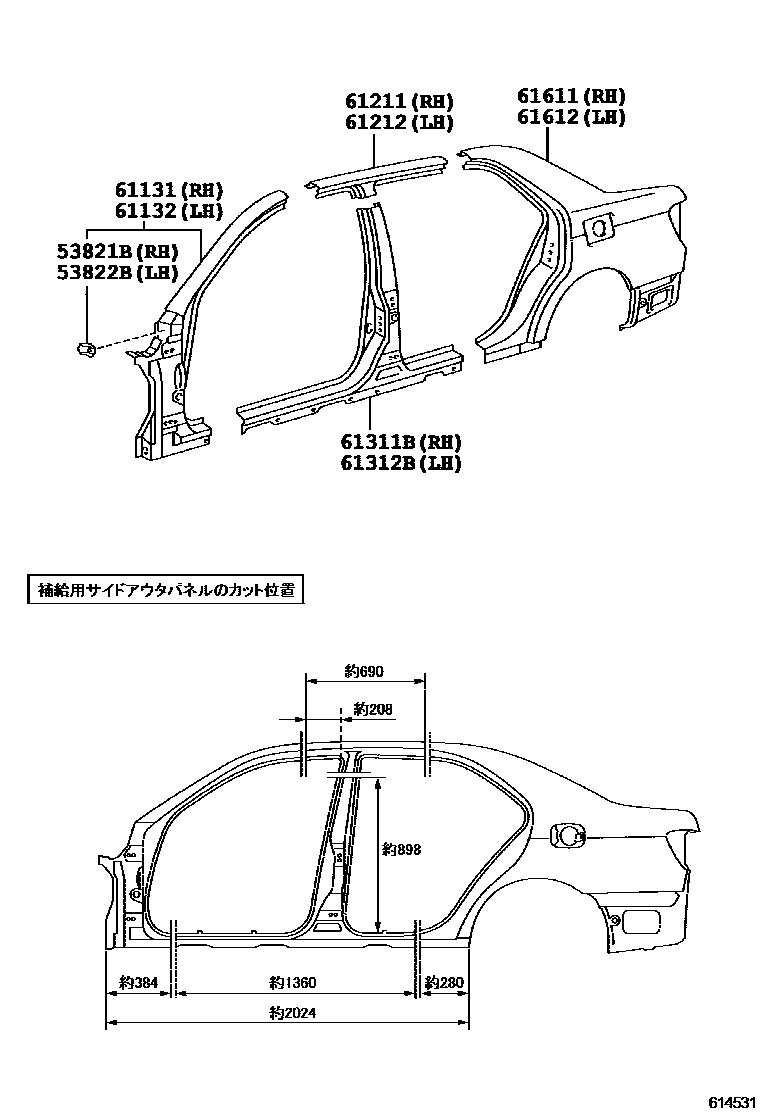

Parts diagram

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010i200105

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010i200105

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-51040i200105

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-51040i200105

61211RAIL, ROOF SIDE, OUTER RH

main61211-51040i200105

61212RAIL, ROOF SIDE, OUTER LH

main61212-51040i200105

61311BPILLAR, CENTER BODY, OUTER RH

main61311-51040i200105

61312BPILLAR, CENTER BODY, OUTER LH

main61312-51040i200105

61611PANEL, QUARTER, RH

main61611-51030i200105-200108

main61611-51031i200108

61612PANEL, QUARTER, LH

main61612-51030i200105-200108

main61612-51031i200108

10 parts on this diagram · 2 diagrams in section
