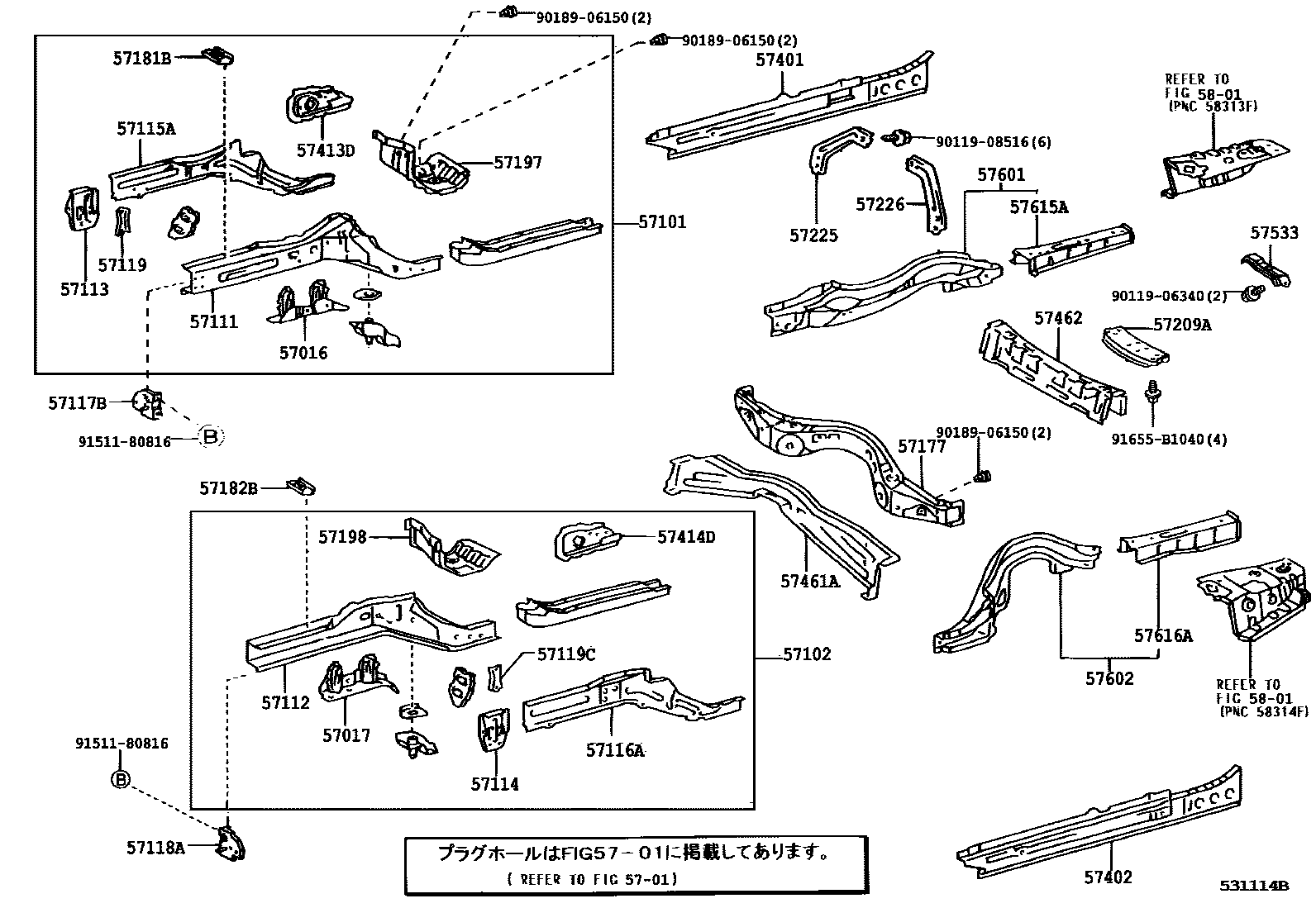

FLOOR SIDE MEMBER
5701HOLE PLUG
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57119PLATE, FRONT SIDE MEMBER, FRONT
57119CPLATE, FRONT SIDE MEMBER, FRONT
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
57181BPLATE, FRONT SIDE MEMBER, NO.3 RH
57182BPLATE, FRONT SIDE MEMBER, NO.3 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57413DEXTENSION, FLOOR SIDE, INNER RH
57414DEXTENSION, FLOOR SIDE, INNER LH
57461AMEMBER, CENTER FLOOR CROSS
57462MEMBER, CENTER FLOOR CROSS, NO.2
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
5801FLOOR PAN & LOWER BACK PANEL
9011906340
main90119-06340
9011908516
main90119-08516
9018906150
main90189-06150
9151180816
main91511-80816
91655B1040
main91655-B1040
40 parts on this diagram · 2 diagrams in section
