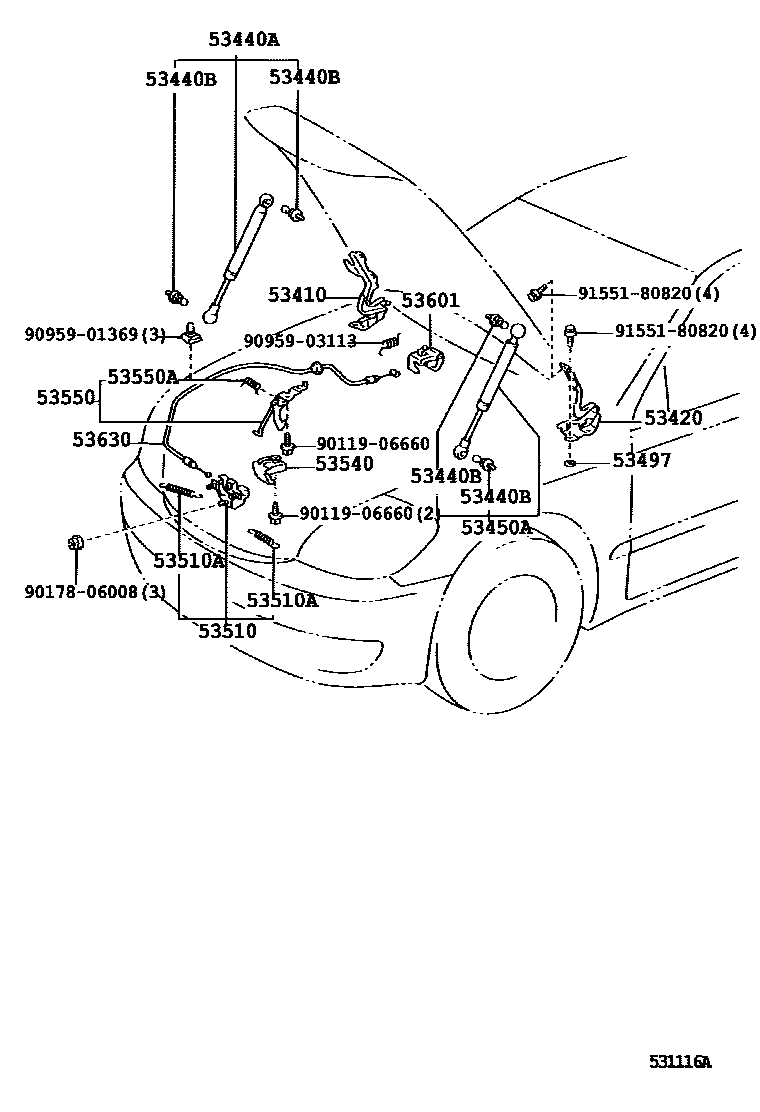

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-30160iJCG1#200105-200706

53420HINGE ASSY, HOOD, LH

main53420-30160iJCG1#200105-200706

53440ASUPPORT ASSY, HOOD, RH

main53440-59075iJCG1#200105

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×4iJCG1#200105

53450ASUPPORT ASSY, HOOD, LH

main53450-59055iJCG1#200105

53497PAD, HOOD HINGE, NO.1

main53497-12050×4iJCG1#200105-200110

main53497-20070×4iJCG1#200105-200110

main53497-50020×4iJCG1#200110

53510LOCK ASSY, HOOD

main53510-51011iJCG1#200105

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iJCG1#200105

main90506-16071iJCG1#200105

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30020iJCG1#200105-200404

main53540-30040iJCG1#200404

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-51040iJCG1#200105

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iJCG1#200105

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-22010-A0iJCG1#200105-200706

IVORY,TRIM0#

main53611-22010-B6iJCG1#200105-200706

LT.GRAY,TRIM1#

main53611-22010-C0iJCG1#200105-200706

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-51020iJCG1#200105

9011906660

main90119-06660

9017806008

main90178-06008

9095901369

main90959-01369

9095903113

main90959-03113

9155180820

main91551-80820

18 parts on this diagram · 1 diagram in section
