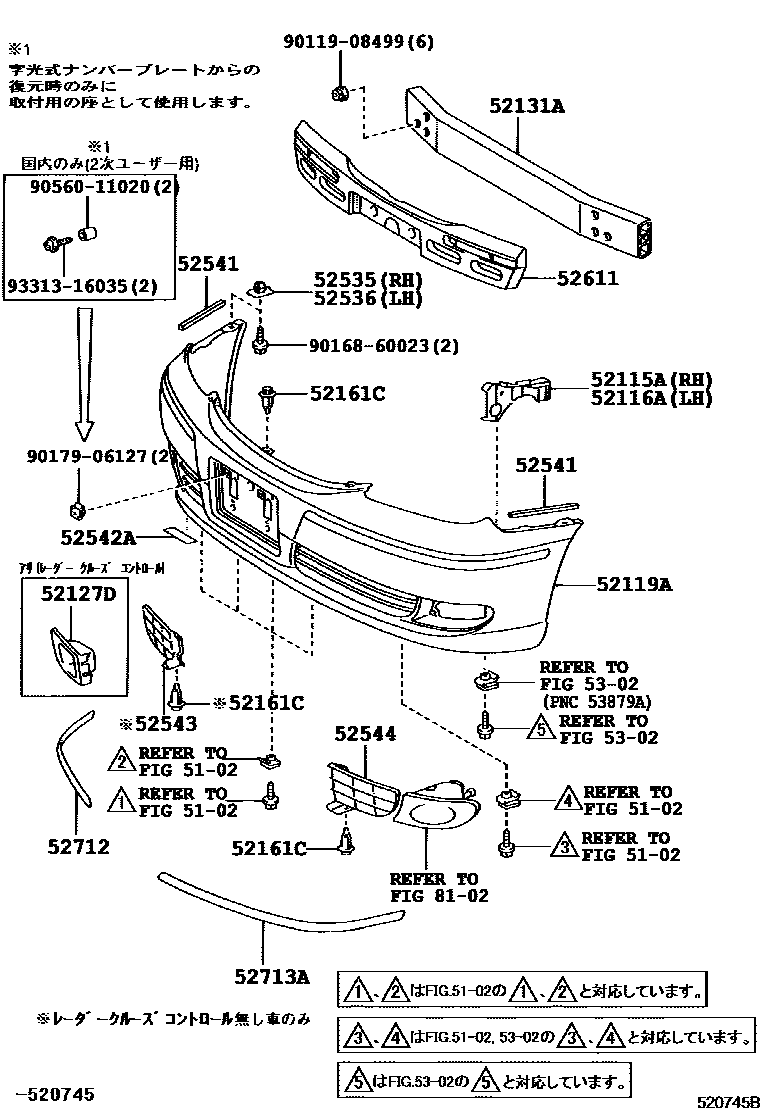

FRONT BUMPER & BUMPER STAY

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12380iJCG1#200105-200706

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12340iJCG1#200105-200706

52119ACOVER, FRONT BUMPER

main52119-51040-A0iJCG1#200105-200706

WHITE PEARL CS.,065

main52119-51040-B0iJCG1#200105-200706

SILVER ME.,1C0

main52119-51040-B1iJCG1#200105-200212

DK.GRAY MC.,1E0

main52119-51040-B2iJCG1#200212-200706

GRAY ME.,1D2

main52119-51040-B3iJCG1#200512-200706

SILVER ME.,1F7

main52119-51040-C0iJCG1#200404-200706

BLUE BLACK MC.CC.,210

main52119-51040-C2iJCG1#200512-200706

BLACK,202

main52119-51040-D0iJCG1#200105-200706

BORDEAUX MC.,3P2

main52119-51040-D1iJCG1#200105-200212

SHELL M.M.,3P7

main52119-51040-H0iJCG1#200105-200205

TURQUOISE M.M.,770

main52119-51040-J0iJCG1#200105-200706

DARK BLUE MC.,8P8

main52119-51040-J1iJCG1#200212-200706

BLUE ME.,8N0

main52119-51040-J2iJCG1#200512-200706

DK.BLUE MC.,8S6

main52119-51050-A0iJCG10,11200105-200706

main52119-51050-B0iJCG10,11200105-200512

main52119-51050-B1iJCG10,11200105-200212

main52119-51050-B2iJCG10,11200212-200706

main52119-51050-B3iJCG10,11200512-200706

main52119-51050-C0iJCG10,11200404-200706

main52119-51050-C2iJCG10,11200512-200706

main52119-51050-D0iJCG10,11200105-200706

main52119-51050-D1iJCG10,11200105-200212

main52119-51050-H0iJCG10,11200105-200205

main52119-51050-J0iJCG10,11200105-200512

main52119-51050-J1iJCG10,11200212-200706

main52119-51050-J2iJCG10,11200512-200706

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-51040-A0iJCG10,11200105-200706

WHITE PEARL CS.,065

main52127-51040-B0iJCG10,11200105-200512

SILVER ME.,1C0

main52127-51040-B1iJCG10,11200105-200212

DK.GRAY MC.,1E0

main52127-51040-B2iJCG10,11200212-200706

GRAY ME.,1D2

main52127-51040-B3iJCG10,11200512-200706

SILVER ME.,1F7

main52127-51040-C0iJCG10,11200305-200404

main52127-51040-C2iJCG10,11200512-200706

BLACK,202

main52127-51040-D0iJCG10,11200105-200706

BORDEAUX MC.,3P2

main52127-51040-D1iJCG10,11200105-200212

SHELL M.M.,3P7

main52127-51040-H0iJCG10,11200105-200205

TURQUOISE M.M.,770

main52127-51040-J0iJCG10,11200105-200512

DARK BLUE MC.,8P8

main52127-51040-J1iJCG10,11200212-200706

BLUE ME.,8N0

main52127-51040-J2iJCG10,11200512-200706

DK.BLUE MC.,8S6

52131AREINFORCEMENT, FRONT BUMPER

main52131-51030iJCG1#200105-200706

52161CPIECE, FRONT BUMPER

main52161-16010×2iJCG1#; JCG10,11200105-200706

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30150iJCG1#200105-200706

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-30150iJCG1#200105-200706

52541PROTECTOR, FRONT BUMPER

main52541-51040×2iJCG1#200105-200706

52542APROTECTOR, FRONT BUMPER, NO.2

main52542-51010×2iJCG1#200105-200706

52543SEAL, FRONT BUMPER SIDE, RH

main52543-51010iJCG1#200105-200706

52544SEAL, FRONT BUMPER SIDE, LH

main52544-51010iJCG1#200105-200706

52611ABSORBER, FRONT BUMPER ENERGY

main52611-51030iJCG1#200105-200706

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-51010iJCG1#200105-200706

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-51010iJCG1#200105-200706

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8102FOG LAMP

→ Go to FIG 81-02

9011908499

main90119-08499

9016860023

main90168-60023

9017906127

main90179-06127

9056011020

main90560-11020

9331316035

main93313-16035

23 parts on this diagram · 1 diagram in section
