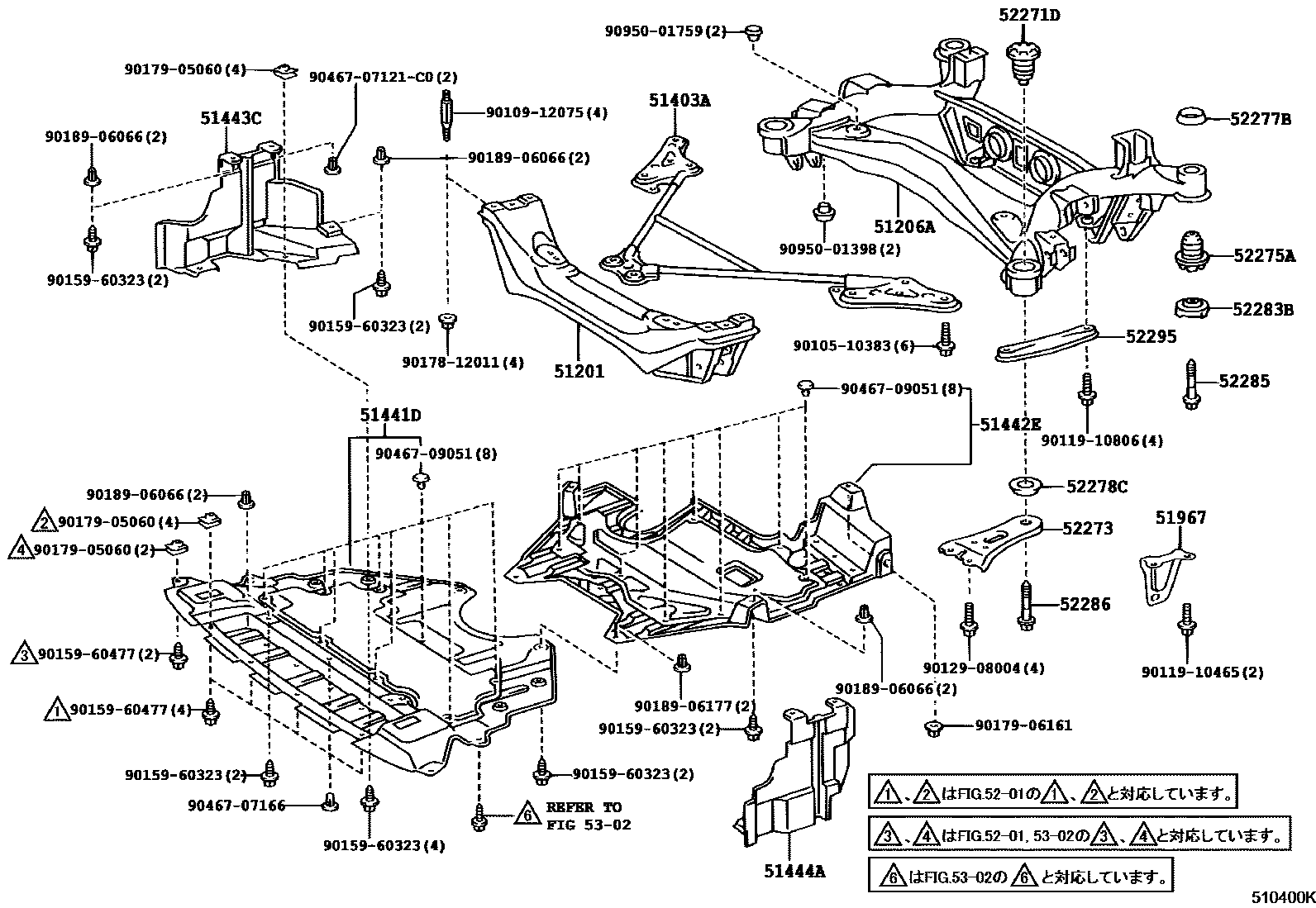

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22582iJCG15200110

main51201-51011iJCG10,11200105

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-51030iJCG1#200105-200503

main51206-53020iJCG1#200504

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-53010iJCG10,11200105

51441DCOVER, ENGINE UNDER

main51410-51010iJCG10,11200105

main51410-51020iJCG15200110

51442ECOVER, ENGINE UNDER, NO.2

main51420-51030iJCG10,11200105

51443CCOVER, ENGINE UNDER, REAR RH

main51443-51010iJCG10,11200105

51444ACOVER, ENGINE UNDER, REAR LH

main51444-51010iJCG10,11200105

51967HOOK, TRANSPORT, REAR

main51967-22070iJCG1#200105

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-51010iJCG1#200105

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-51010iJCG1#200105

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30080iJCG1#200105

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30020iJCG1#200105

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-51010iJCG1#200105

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050iJCG1#200105

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iJCG1#200105

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iJCG1#200105-200507

main52286-53020iJCG1#200508

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iJCG1#200105

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9010510383

main90105-10383

9010912075

main90109-12075

9011910465

main90119-10465

9011910806

main90119-10806

9012908004

main90129-08004

9015960323

main90159-60323

9015960477

main90159-60477

9017812011

main90178-12011

9017905060

main90179-05060

9017906161

main90179-06161

9018906066

main90189-06066

9018906177

main90189-06177

9046707121C0

main90467-07121C0

9046707166

main90467-07166

9046709051

main90467-09051

9095001398

main90950-01398

9095001759

main90950-01759

35 parts on this diagram · 2 diagrams in section
