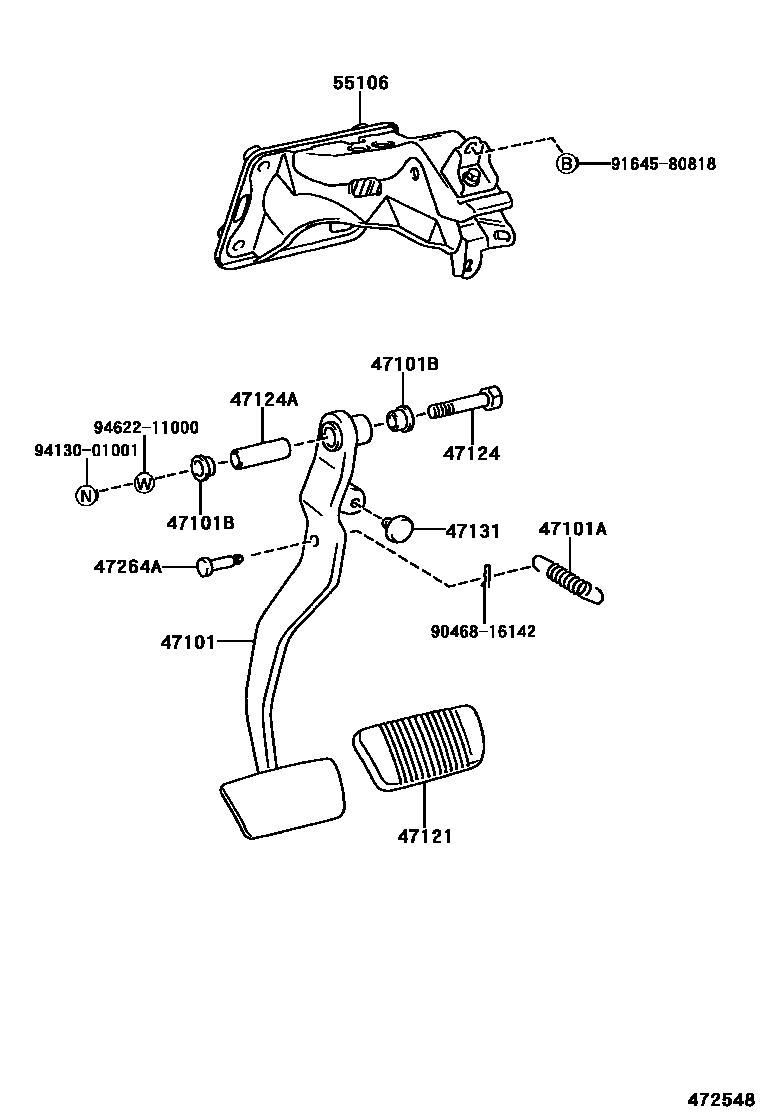

BRAKE PEDAL & BRACKET

0001 1 0002 1������ �����

47101PEDAL SUB-ASSY, BRAKE

main47101-51010iJCG10,15200105

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14032iJCG10,15200105

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iJCG10,15200105

47121PAD, BRAKE PEDAL

main47121-50020iJCG10,15200105

47124SHAFT, BRAKE PEDAL

main90101-10015iJCG10,15200105

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iJCG10,15200105

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iJCG10,15200105

47264APIN(FOR PUSH ROD)

main90249-10064iJCG10,15200105

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-51012iJCG10,15200105-200706

9046816142

main90468-16142

9164580818

main91645-80818

9413001001

main94130-01001

9462211000

main94622-11000

13 parts on this diagram · 2 diagrams in section
