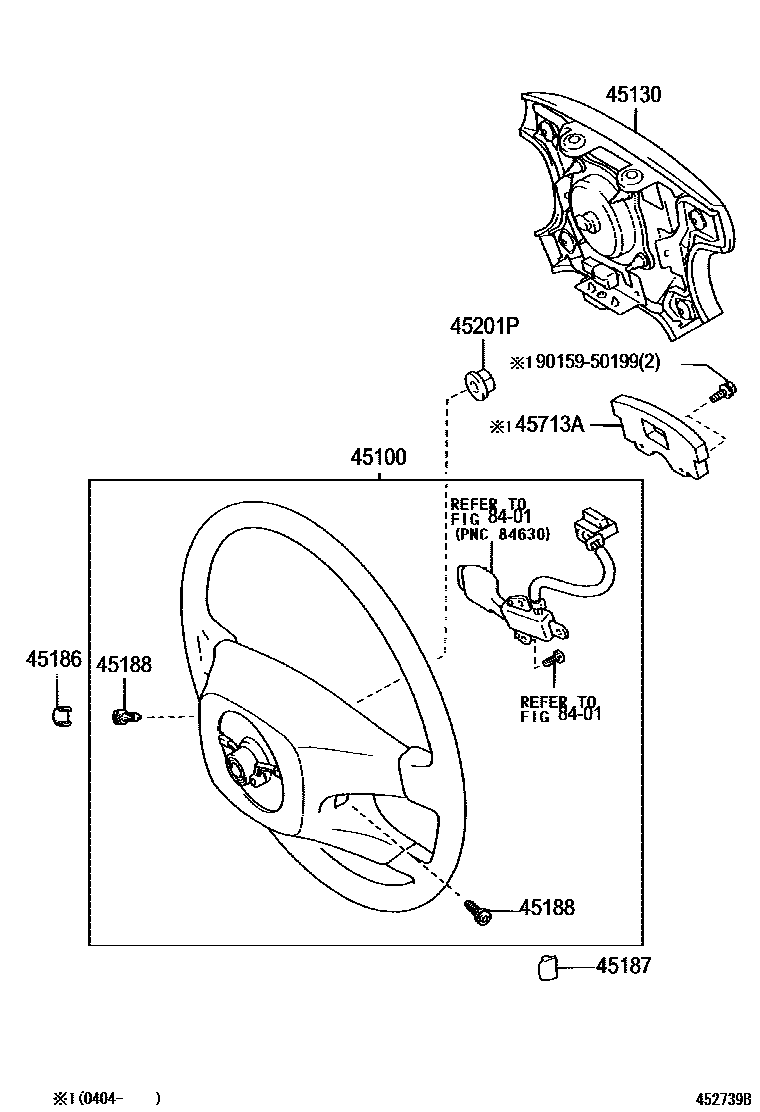

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-51110-A0iJCG10,15200105-200404

main45100-51110-B0iJCG10,15200105-200404

main45100-51110-C0iJCG10,15200105-200404

main45100-51120-A0iJCG11,15200105-200404

main45100-51120-B0iJCG11,15200105-200404

main45100-51120-C0iJCG11,15200105-200404

main45100-51130-A0iJCG10,11200105-200404

main45100-51130-B0iJCG10,11200105-200404

main45100-51130-C0iJCG10,11200105-200404

main45100-51140-B0iJCG10,15200205-200305

main45100-51140-E0iJCG10,15200305-200404

main45100-51150-A0iJCG10,15200212-200404

main45100-51150-C0iJCG10,15200212-200404

main45100-51160-E0iJCG11200305-200404

main45100-51200-A0iJCG10,15200404-200706

main45100-51200-B0iJCG10,15200404-200706

main45100-51200-C0iJCG10,15200404-200706

main45100-51210-A0iJCG10,15200404-200706

main45100-51210-B0iJCG10,15200404-200706

main45100-51210-C0iJCG10,15200404-200706

main45100-51220-A0iJCG1#200404-200408

main45100-51220-B0iJCG1#200404-200408

main45100-51220-C1iJCG1#200404-200408

main45100-51221-A0iJCG1#200409-200512

main45100-51221-B0iJCG1#200409-200512

main45100-51221-C1iJCG1#200409-200512

main45100-51230-A0iJCG1#200404-200408

main45100-51230-B0iJCG1#200404-200408

main45100-51230-C1iJCG1#200404-200408

main45100-51231-A0iJCG1#200409-200706

main45100-51231-B0iJCG1#200409-200706

main45100-51231-C1iJCG1#200409-200706

main45100-51240-A0iJCG10,11200404-200408

main45100-51240-B0iJCG10,11200404-200408

main45100-51240-C1iJCG10,11200404-200408

main45100-51241-A0iJCG10,11200409-200512

main45100-51241-B0iJCG10,11200409-200512

main45100-51241-C1iJCG10,11200409-200512

main45100-51250-A0iJCG10,11200404-200408

main45100-51250-B0iJCG10,11200404-200408

main45100-51250-C1iJCG10,11200404-200408

main45100-51251-A0iJCG10,11200409-200706

main45100-51251-B0iJCG10,11200409-200706

main45100-51251-C1iJCG10,11200409-200706

45130BUTTON ASSY, HORN

main45130-51020-A0iJCG10,11; JCG15200404-200706

IVORY,TRIM0#; IVORY,TRIM0#,1#

main45130-51020-B0iJCG10,11200404-200706

LT.GRAY,TRIM1#

main45130-51020-C0iJCG1#200404-200706

BLACK,TRIM2#

main45130-51040-A0iJCG1#200105-200404

IVORY,TRIM0#

main45130-51040-B0iJCG1#200105-200404

LT.GRAY,TRIM1#

main45130-51040-C0iJCG1#200105-200404

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-A0iJCG1#200105-200404

main45186-33050-B7iJCG1#200105-200404

main45186-33050-C0iJCG1#200105-200404

main45186-44010-A0iJCG1#200105-200404

main45186-44010-C0iJCG1#200105-200404

main45186-58010-A0iJCG10,15200404-200706

IVORY,TRIM0#

main45186-58010-B2iJCG10,15200404-200706

LT.GRAY,TRIM1#

main45186-58010-C0iJCG10,15200404-200706

BLACK,TRIM2#

main45186-58020-A0iJCG1#200404-200706

main45186-58020-B3iJCG1#200404-200706

main45186-58020-C0iJCG1#200404-200706

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-51010-A0iJCG1#200105-200404

IVORY,TRIM0#

main45187-51010-B0iJCG1#200105-200404

LT.GRAY,TRIM1#

main45187-51010-C0iJCG1#200105-200404

BLACK,TRIM2#

main45187-58010-A0iJCG10,15200404-200706

IVORY,TRIM0#

main45187-58010-B3iJCG10,15200404-200706

LT.GRAY,TRIM1#

main45187-58010-C0iJCG1#200404-200706

BLACK,TRIM2#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iJCG1#200105-200404

45201PNUT, STEERING WHEEL SET

main90179-12071iJCG1#200105

45713ADAMPER, STEERING SHAKE

main45713-48110iJCG1#200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
