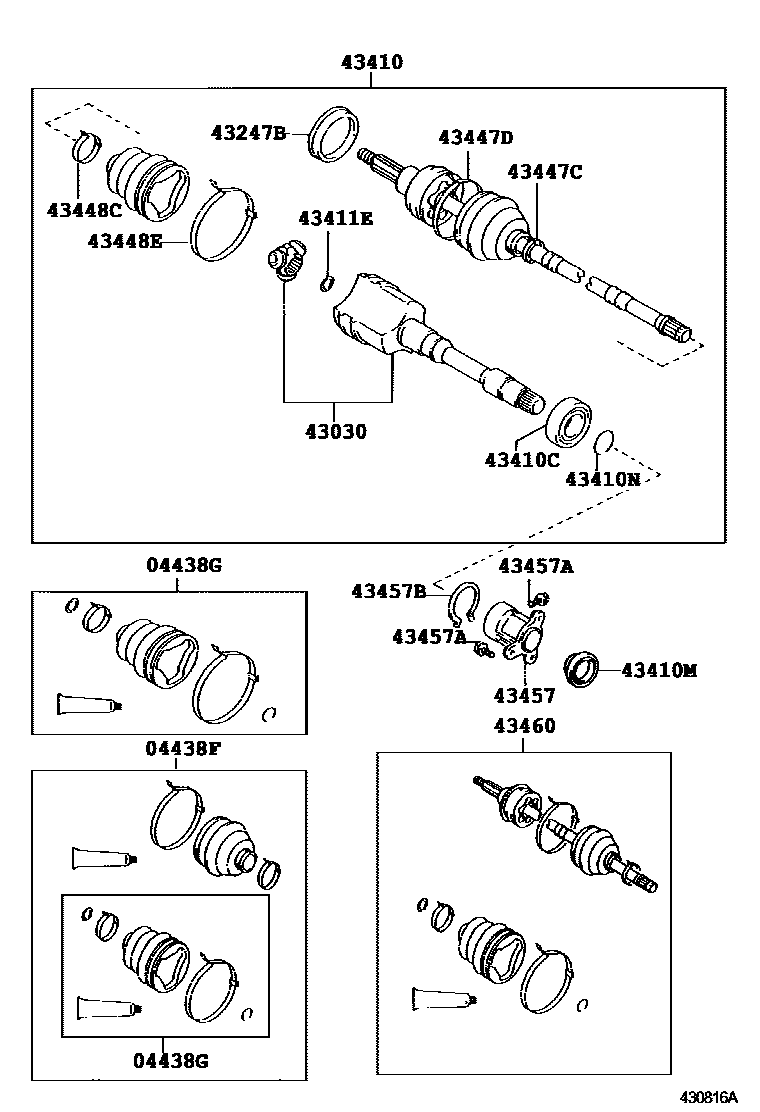

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-30080iJCG15200508

sub04428-30081

main04438-22010iJCG15200110-200508

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-10070iJCG15200110-200508

main04438-30050iJCG15200508

sub04438-30051

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-22010iJCG15200110

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iJCG15200110-200706

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-22010iJCG15200110

sub43410-22011

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iJCG15200110

sub90363-36004

sub90363-36010

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iJCG15200110-200706

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iJCG15200110

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iJCG15200110

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iJCG15200110

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iJCG15200110

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iJCG15200110

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iJCG15200110

43457BRACKET, DRIVE SHAFT BEARING

main43044-22010iJCG15200110

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10392×3iJCG15200110

main90901-19023iJCG15200110-200312

main90901-19060iJCG15200312

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iJCG15200110

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-29426iJCG15200110-200508

sub43470-80322

main43470-80074iJCG15200508

sub43470-80322

17 parts on this diagram · 2 diagrams in section
