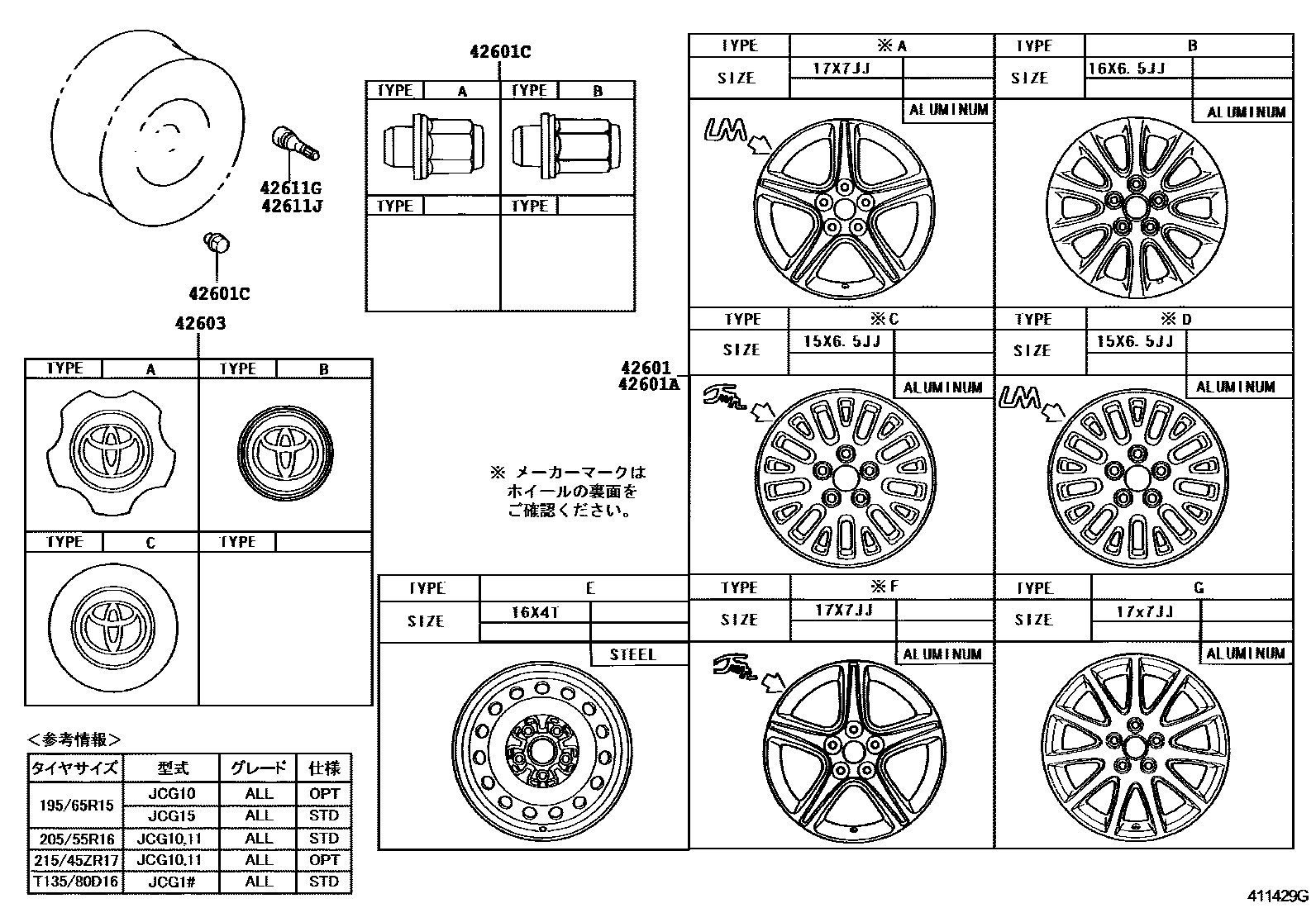

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-2A150×4iJCG10,11200404-200512

main42611-3A160×4iJCG15200110

main42611-3A170×4iJCG15200110

main42611-51060×4iJCG10,11200105

main42611-53040×4iJCG10,11200105-200507

main42611-53041×4iJCG10,11200507

main42611-53080×4iJCG10,11200109-200507

main42611-53081×4iJCG10,11200507

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iJCG1#200105

main42611-3A160iJCG15200110-200404

main42611-3A170iJCG15200110-200404

main42611-51060iJCG10,11200105

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iJCG10,11200105

main90942-01058×20iJCG15200110

main90942-01083×20iJCG1#200305-200404

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-51060×4iJCG10,11200105

main42603-51070×4iJCG1#200305-200404

main42603-51080×4iJCG10,11200105

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iJCG1#200105

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJCG1#200105

6 parts on this diagram · 2 diagrams in section
