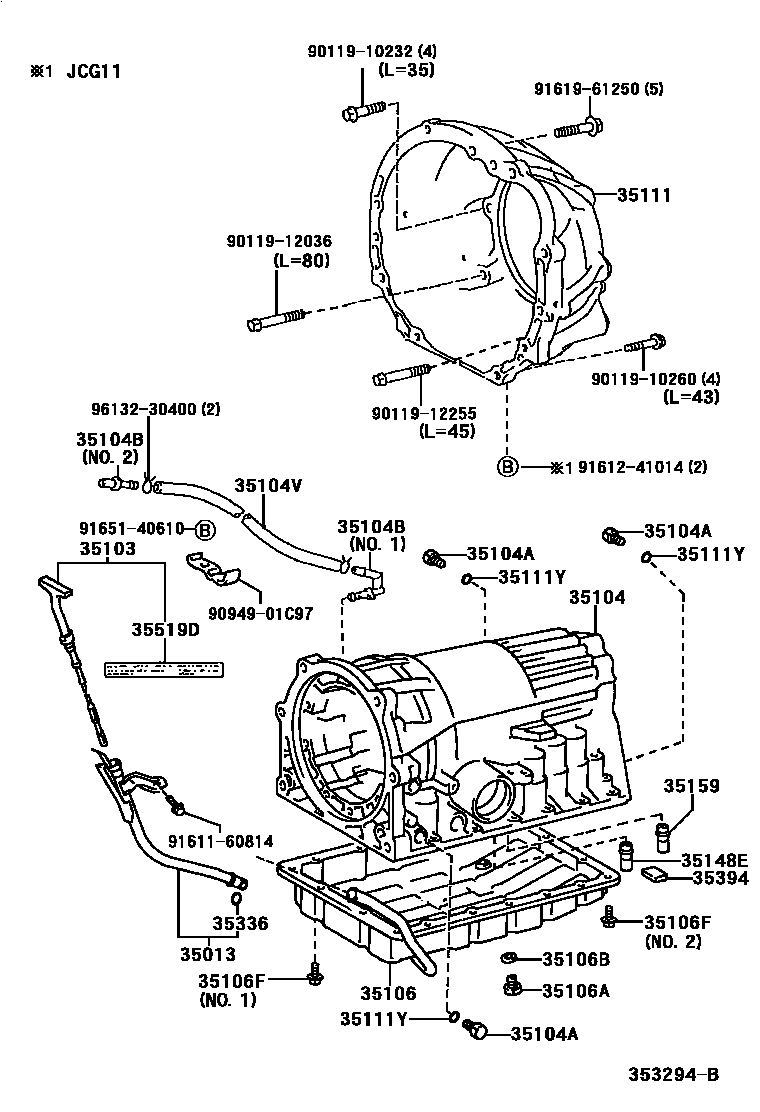

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A650E 0002 1A340H

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30530iJCG10,11200105

main35013-51030iJCG15200110

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22470iJCG10200105

main35103-51020iJCG11200105

main35103-51030iJCG15200110

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30190iJCG15200110-200510

main35104-30191iJCG15200510

main35104-30200iJCG10,11200105

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×3iJCG10,11200105

main90341-14011iJCG15200110

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iJCG1#200105

main90930-03168iJCG1#200105

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iJCG1#200105-200203

main90445-11154iJCG1#200203

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22081iJCG15200110

main35106-30220iJCG10,11200105

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iJCG1#200304

main90341-10018iJCG1#200105-200304

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iJCG1#200304

main35178-50010iJCG1#200105-200304

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×18iJCG10,11200105

main90119-06866iJCG10,11200105

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-30150iJCG1#200105

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×3iJCG10,11200105

35148EGASKET, BRAKE DRUM, NO.2

main35148-30010iJCG10,11200105

35159GASKET, BRAKE DRUM

main35159-30010iJCG15200110

main35159-30020iJCG10,11200105

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iJCG1#200105

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iJCG10,11200105

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iJCG1#200105

9011910232

main90119-10232

9011910260

main90119-10260

9011912036

main90119-12036

9011912255

main90119-12255

9094901C97

main90949-01C97

9161160814

main91611-60814

9161241014

main91612-41014

9161961250

main91619-61250

9165140610

main91651-40610

9613230400

main96132-30400

27 parts on this diagram · 2 diagrams in section
