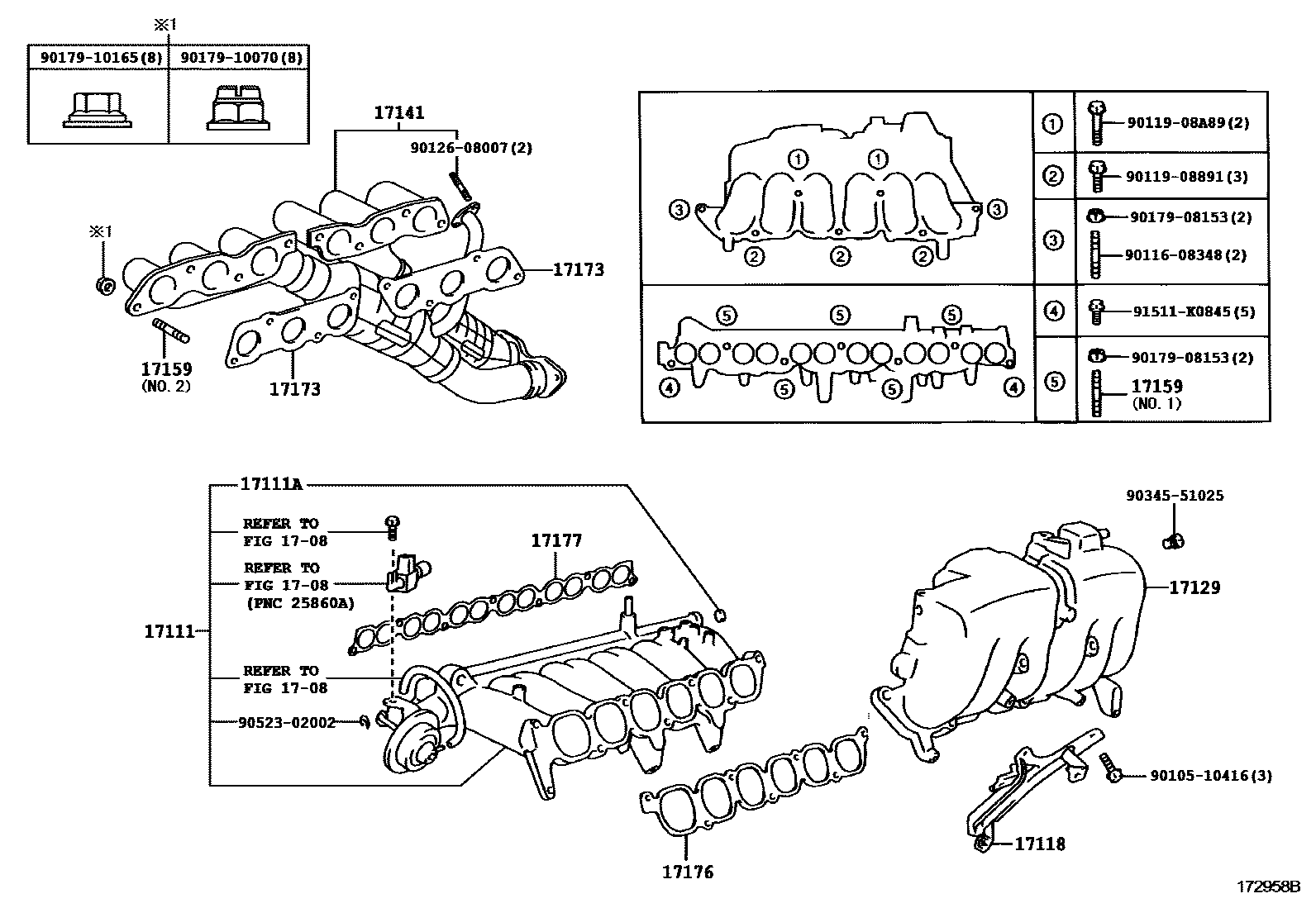

MANIFOLD

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17101-46011i2JZFSE..JCG11200105

main17101-46040i1JZFSE..JCG10,15200105

17111APLUG, NO.1

main96411-41400i1JZFSE,2JZFSE..JCG1#200105

17118STAY, MANIFOLD

main17118-46021i1JZFSE,2JZFSE..JCG1#200105-200402

main17118-46022i1JZFSE,2JZFSE..JCG1#200402

17129TANK, INTAKE AIR SURGE

main17109-46112i2JZFSE..JCG11200105

main17109-46120i1JZFSE..JCG10,15200105

17141MANIFOLD, EXHAUST

main17140-46101i2JZFSE..JCG11200105-200303

main17140-46102i2JZFSE..JCG11200303

main17140-46150i1JZFSE..JCG10200105-200303

main17140-46151i1JZFSE..JCG10200303

main17140-46160i1JZFSE..JCG15200110-200303

main17140-46161i1JZFSE..JCG15200303

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1JZFSE,2JZFSE..JCG1#200105

main90126-10014×8i1JZFSE,2JZFSE..JCG1#200105

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46051×2i1JZFSE,2JZFSE..JCG1#200105

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-46050i1JZFSE,2JZFSE..JCG1#200105

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-46070i1JZFSE,2JZFSE..JCG1#200105

9010510416

main90105-10416

9011608348

main90116-08348

9011908891

main90119-08891

9011908A89

main90119-08A89

9012608007

main90126-08007

9017908153

main90179-08153

9017910070

main90179-10070

9017910165

main90179-10165

9034551025

main90345-51025

9052302002

main90523-02002

91511K0845

main91511-K0845

21 parts on this diagram · 2 diagrams in section
