V-BELT

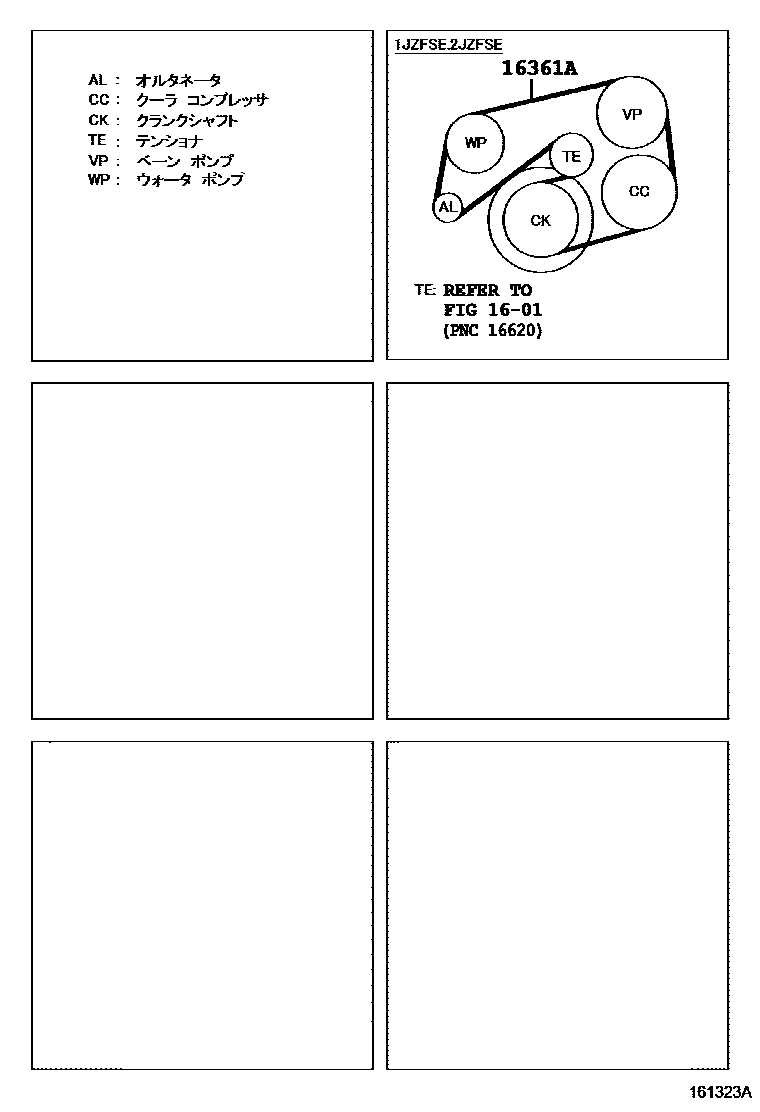

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02485i200105-200406

main90916-02514i200105-200406

main90916-02630i200407

2 parts on this diagram · 1 diagram in section
