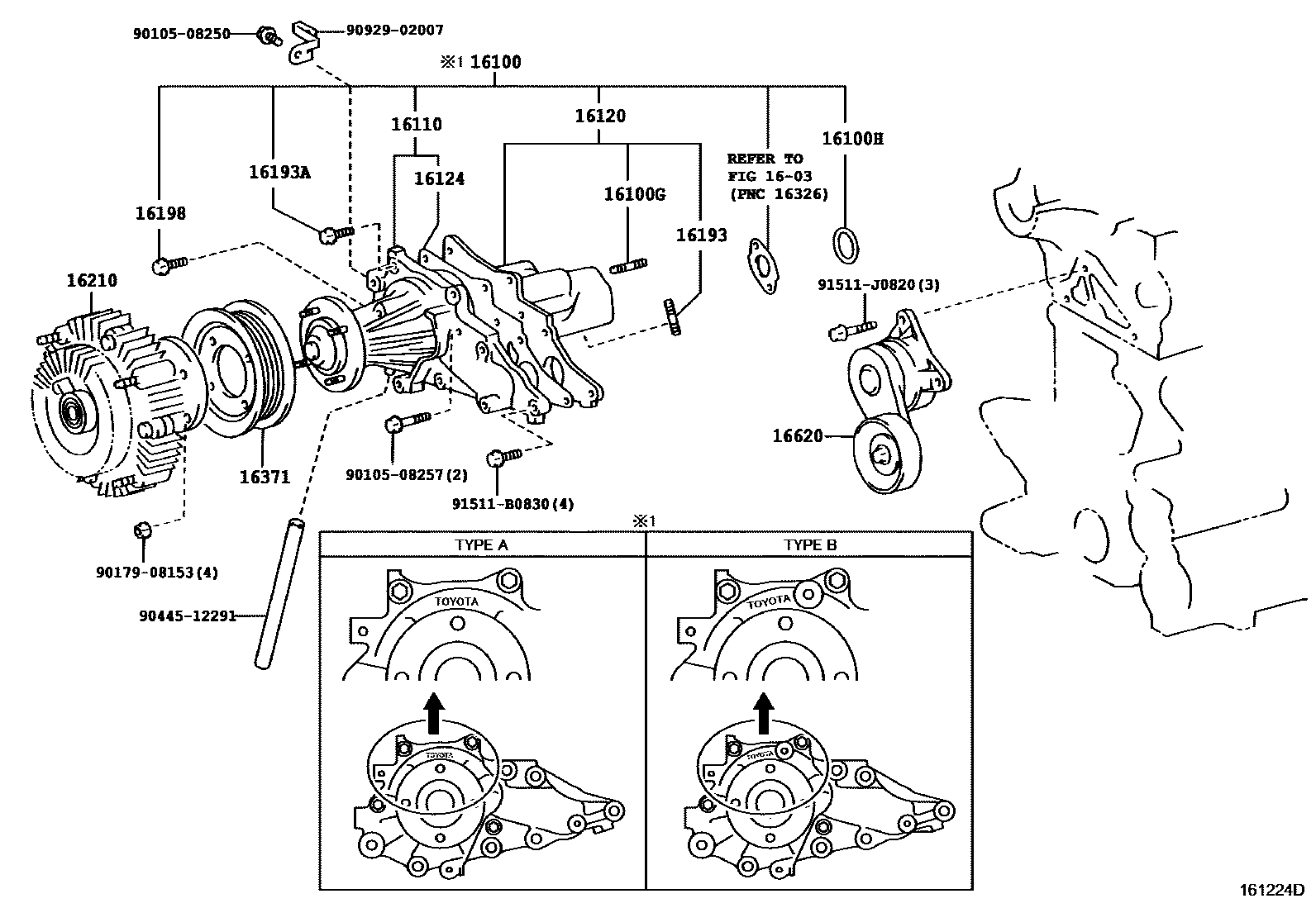

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-49867i1JZFSE,2JZFSE..JCG1#200105-200108

main16100-49868i1JZFSE,2JZFSE..JCG10,11200108-200706

main16100-49876i1JZFSE..JCG15200110-200706

16100GBOLT, STUD(FOR WATER PUMP SET)

main92122-60816×2i1JZFSE,2JZFSE..JCG1#200105-200706

16100HRING, O(FOR WATER PUMP)

main96761-24040i1JZFSE,2JZFSE..JCG1#200105

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49147i1JZFSE,2JZFSE..JCG1#200105-200108

main16110-49148i1JZFSE,2JZFSE..JCG10,11200108

main16110-49156i1JZFSE..JCG15200110

16120COVER ASSY, WATER PUMP

main16102-46072i1JZFSE,2JZFSE..JCG1#200105-200108

main16102-46073i1JZFSE,2JZFSE..JCG1#200108

16124GASKET, WATER PUMP COVER

main16124-46070i1JZFSE,2JZFSE..JCG1#200105-200108

main16124-46071i1JZFSE,2JZFSE..JCG10,11200108-200706

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030×2i1JZFSE,2JZFSE..JCG1#200105

16193ABOLT(FOR WATER PUMP COVER)

main90029-00002×3i1JZFSE,2JZFSE..JCG1#200105-200706

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46031i1JZFSE,2JZFSE..JCG1#200105

16210COUPLING ASSY, FLUID

main16210-46052i1JZFSE,2JZFSE..JCG10,11200105

16371PULLEY, FAN

main16371-46030i1JZFSE,2JZFSE..JCG10,11200105

main16371-46040i1JZFSE..JCG15200110

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W015i1JZFSE..JCG10,15200105-200702

main16620-0W016i1JZFSE..JCG10,15200702

main16620-0W025i2JZFSE..JCG11200105-200702

main16620-0W026i2JZFSE..JCG11200702

9010508250

main90105-08250

9010508257

main90105-08257

9017908153

main90179-08153

9044512291

main90445-12291

9092902007

main90929-02007

91511B0830

main91511-B0830

91511J0820

main91511-J0820

20 parts on this diagram · 2 diagrams in section
