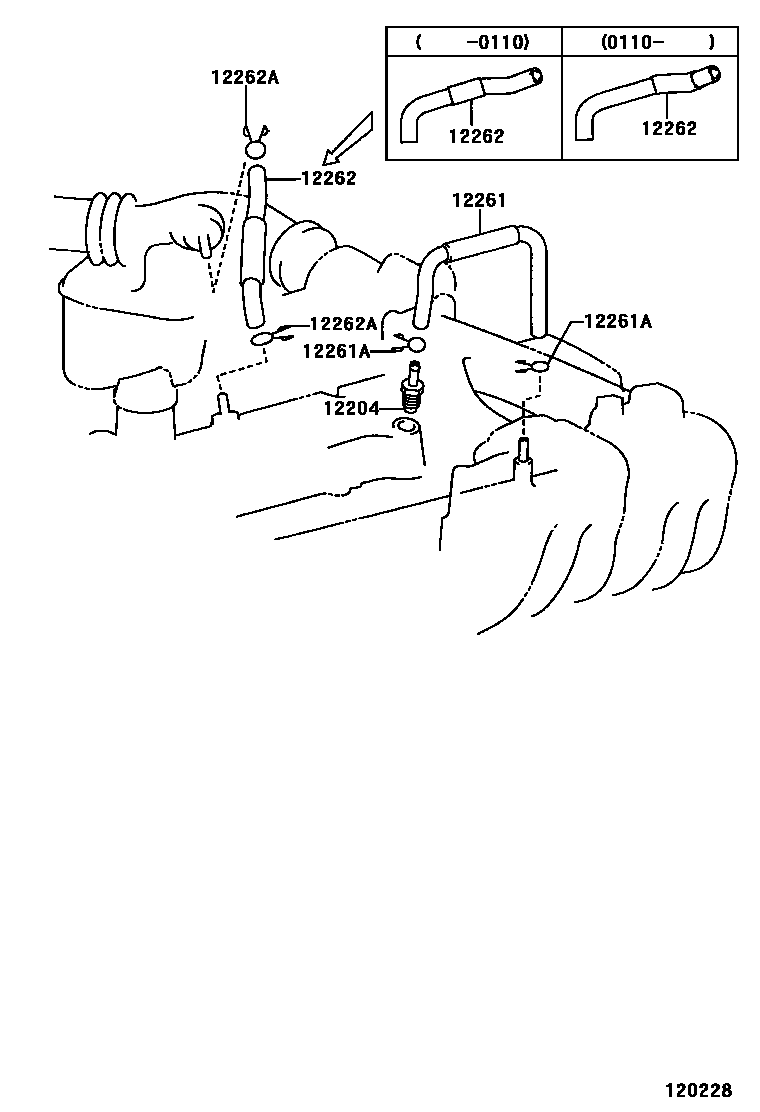

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-46040i1JZFSE,2JZFSE..JCG1#200105

12261HOSE, VENTILATION

main12261-46070i1JZFSE,2JZFSE..JCG1#200105

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001×2i1JZFSE,2JZFSE..JCG1#200105

12262HOSE, VENTILATION, NO.2

main12262-46100i1JZFSE,2JZFSE..JCG1#200105-200110

main12262-46101i1JZFSE,2JZFSE..JCG1#200110

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-18003×2i1JZFSE,2JZFSE..JCG1#200105

5 parts on this diagram · 1 diagram in section
