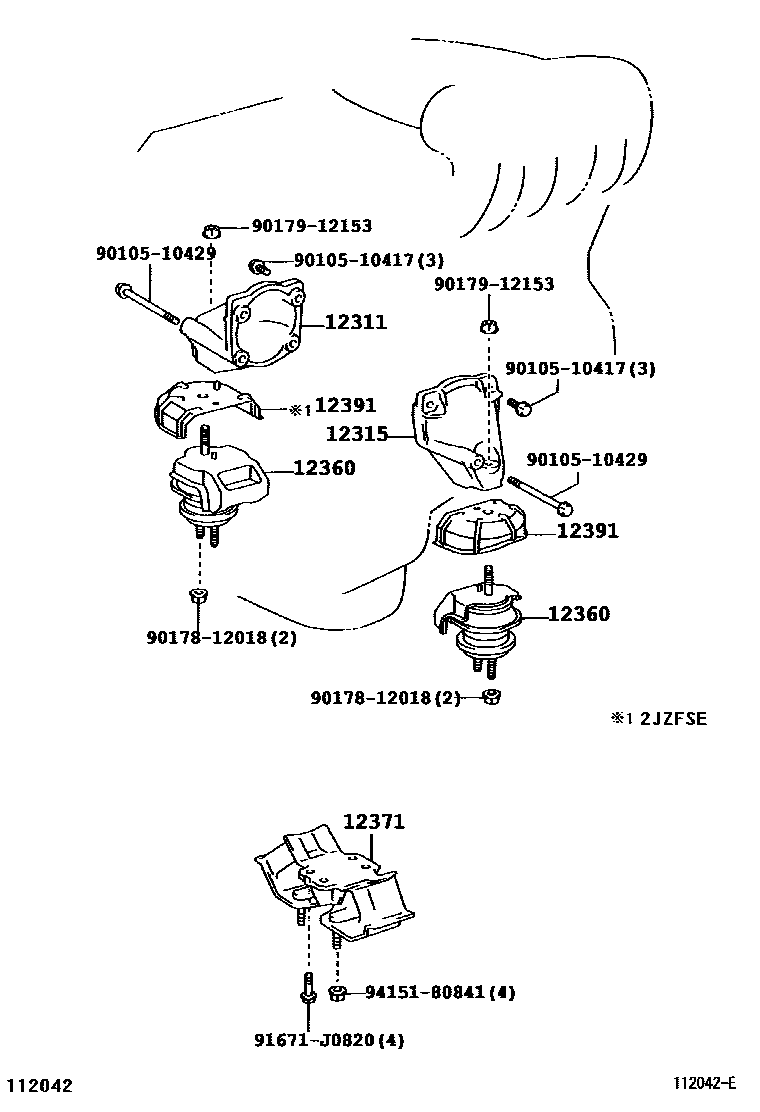

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46140i1JZFSE,2JZFSE..JCG10,11200105

main12311-46150i1JZFSE..JCG15200110

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46120i1JZFSE,2JZFSE..JCG10,11200105

main12315-46130i1JZFSE..JCG15200110

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46180×2i1JZFSE,2JZFSE..JCG10,11200105

main12360-46220i1JZFSE..JCG15200110

main12380-46060i1JZFSE..JCG15200110

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46130i1JZFSE..JCG15200110-200111

main12371-46200i1JZFSE,2JZFSE..JCG10,11200105

main12371-46240i1JZFSE..JCG15200111

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46040i1JZFSE..JCG10; 2JZFSE..JCG11200105

9010510417

main90105-10417

9010510429

main90105-10429

9017812018

main90178-12018

9017912153

main90179-12153

91671J0820

main91671-J0820

9415180841

main94151-80841

11 parts on this diagram · 2 diagrams in section
