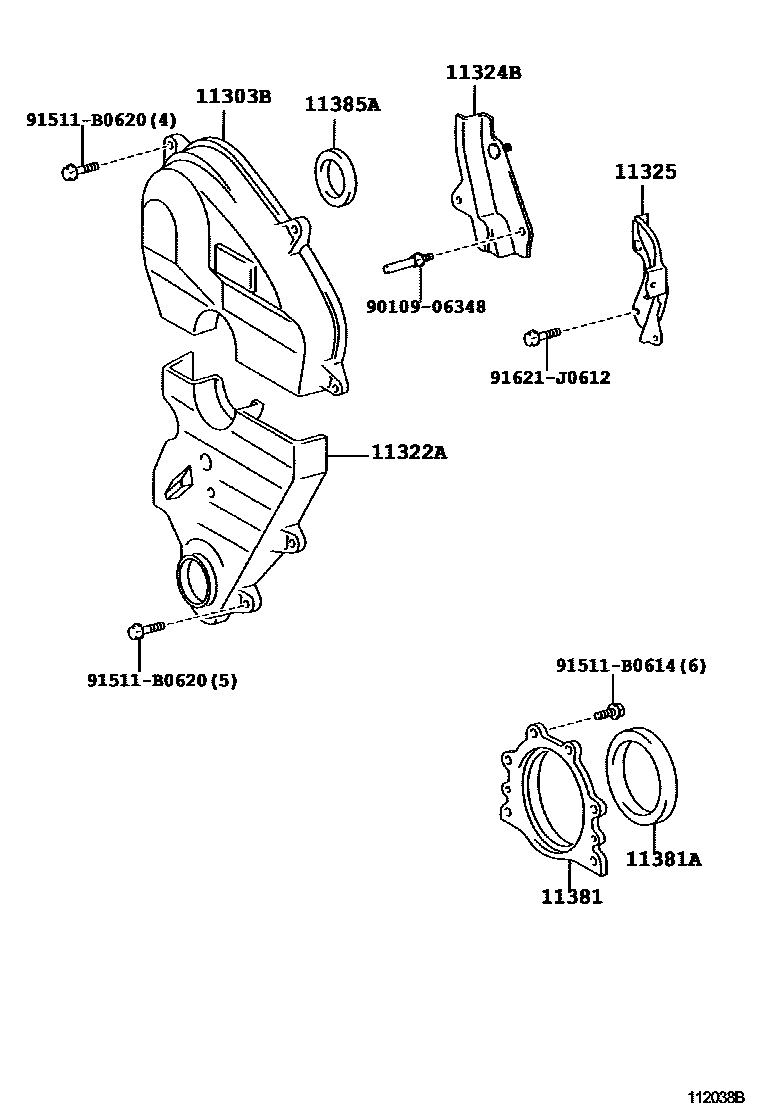

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-46050i1JZFSE,2JZFSE..JCG1#200105

11322ACOVER, TIMING BELT, NO.1

main11302-46040i2JZFSE..JCG11200105

main11302-46050i1JZFSE..JCG10,15200105

11324BCOVER, TIMING BELT, NO.5

main11324-46041i1JZFSE..JCG10,15200105

11325COVER, TIMING BELT, NO.4

main11325-46050i2JZFSE..JCG11200105

main11325-46060i1JZFSE..JCG10,15200105

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i1JZFSE,2JZFSE..JCG1#200105

11381ASEAL, ENGINE REAR OIL

main90311-90006i1JZFSE,2JZFSE..JCG1#200105

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-34027i1JZFSE,2JZFSE..JCG1#200105

9010906348

main90109-06348

91511B0614

main91511-B0614

91511B0620

main91511-B0620

91621J0612

main91621-J0612

11 parts on this diagram · 2 diagrams in section
