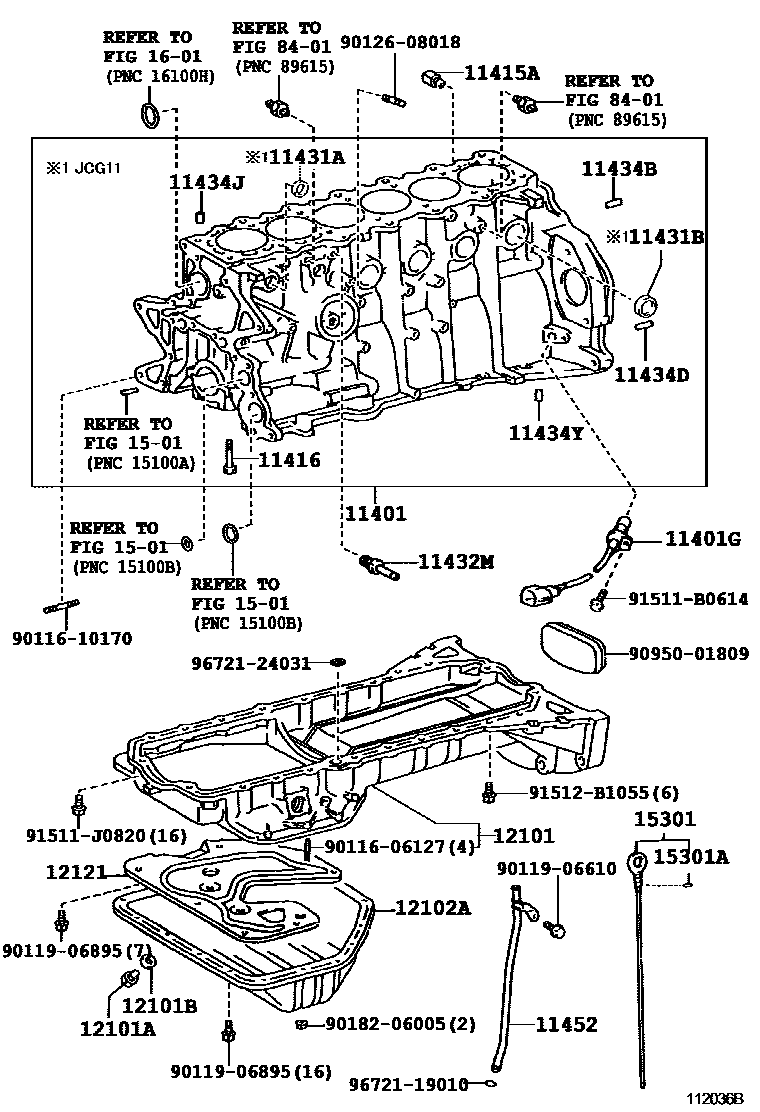

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-49706i2JZFSE..JCG11200105

sub11401-49707

main11401-49725i1JZFSE..JCG10200105

sub11401-49726

main11401-49765i1JZFSE..JCG15200110

11401GSENSOR, CRANK POSITION

main90919-05046i1JZFSE,2JZFSE..JCG1#200105

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09102i1JZFSE,2JZFSE..JCG1#200105

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02104i1JZFSE,2JZFSE..JCG1#200105

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i2JZFSE..JCG11200105-200706

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2JZFSE..JCG11200105-200706

11432MUNION(FOR CYLINDER BLOCK)

main90404-53064i1JZFSE,2JZFSE..JCG1#200105

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10192i1JZFSE,2JZFSE..JCG1#200105

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1JZFSE,2JZFSE..JCG1#200105

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-14003i1JZFSE,2JZFSE..JCG1#200105

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-10192i1JZFSE,2JZFSE..JCG1#200105

11452GUIDE, OIL LEVEL GAGE

main11452-46010i1JZFSE,2JZFSE..JCG10,11200105

main11452-46140i1JZFSE..JCG15200110

12101PAN SUB-ASSY, OIL

main12101-46032i1JZFSE..JCG15200110

main12111-46062i1JZFSE,2JZFSE..JCG10,11200105

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1JZFSE,2JZFSE..JCG1#200105-200706

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1JZFSE,2JZFSE..JCG1#200105

12102APAN SUB-ASSY, OIL, NO.2

main12102-46040i1JZFSE,2JZFSE..JCG10,11200105

main12102-46061i1JZFSE..JCG15200110

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-46010i1JZFSE,2JZFSE..JCG10,11200105-200706

main12121-46070i1JZFSE..JCG15200110-200706

main12122-46021i1JZFSE..JCG15200110-200706

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-46023i1JZFSE,2JZFSE..JCG10,11200105

main15301-46051i1JZFSE..JCG15200110

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1JZFSE,2JZFSE..JCG10,11200105

1601

8401

9011606127

main90116-06127

9011610170

main90116-10170

9011906610

main90119-06610

9011906895

main90119-06895

9012608018

main90126-08018

9018206005

main90182-06005

9095001809

main90950-01809

91511B0614

main91511-B0614

91511J0820

main91511-J0820

91512B1055

main91512-B1055

9672119010

main96721-19010

9672124031

main96721-24031

34 parts on this diagram · 2 diagrams in section
