STANDARD TOOL

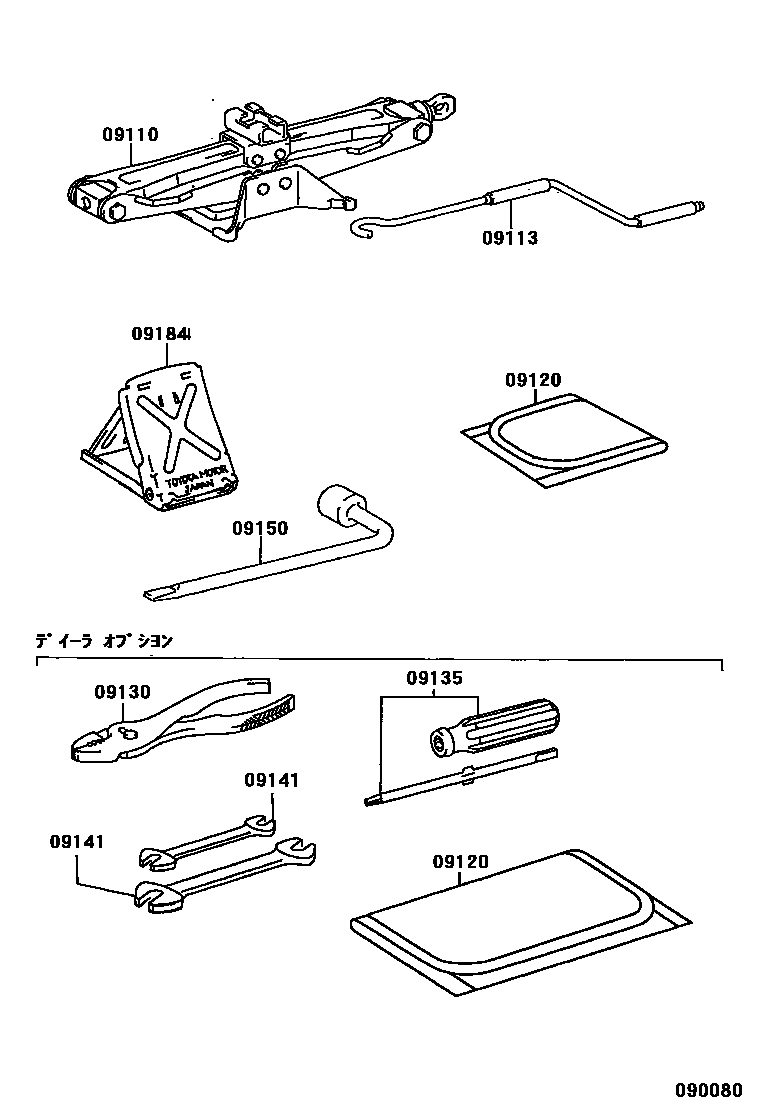

Parts diagram
09110JACK ASSY
main09111-30120i200105-200402
main09111-50051i200403
sub09111-76011
09113HANDLE, JACK
main09113-22020i200105
09120BAG, TOOL
main09120-24010i200105
main09120-28040i200105
09130PLIERS
main99913-11500i200105
09135DRIVER, SCREW
main99915-10700i200105
09141SPANNER
main99914-10810i200105
main99914-11214i200105
09150WRENCH, HUB NUT BOX
main09150-40010i200105
09184STOPPER, WHEEL
main09184-00010i200105-200706

8 parts on this diagram · 1 diagram in section
