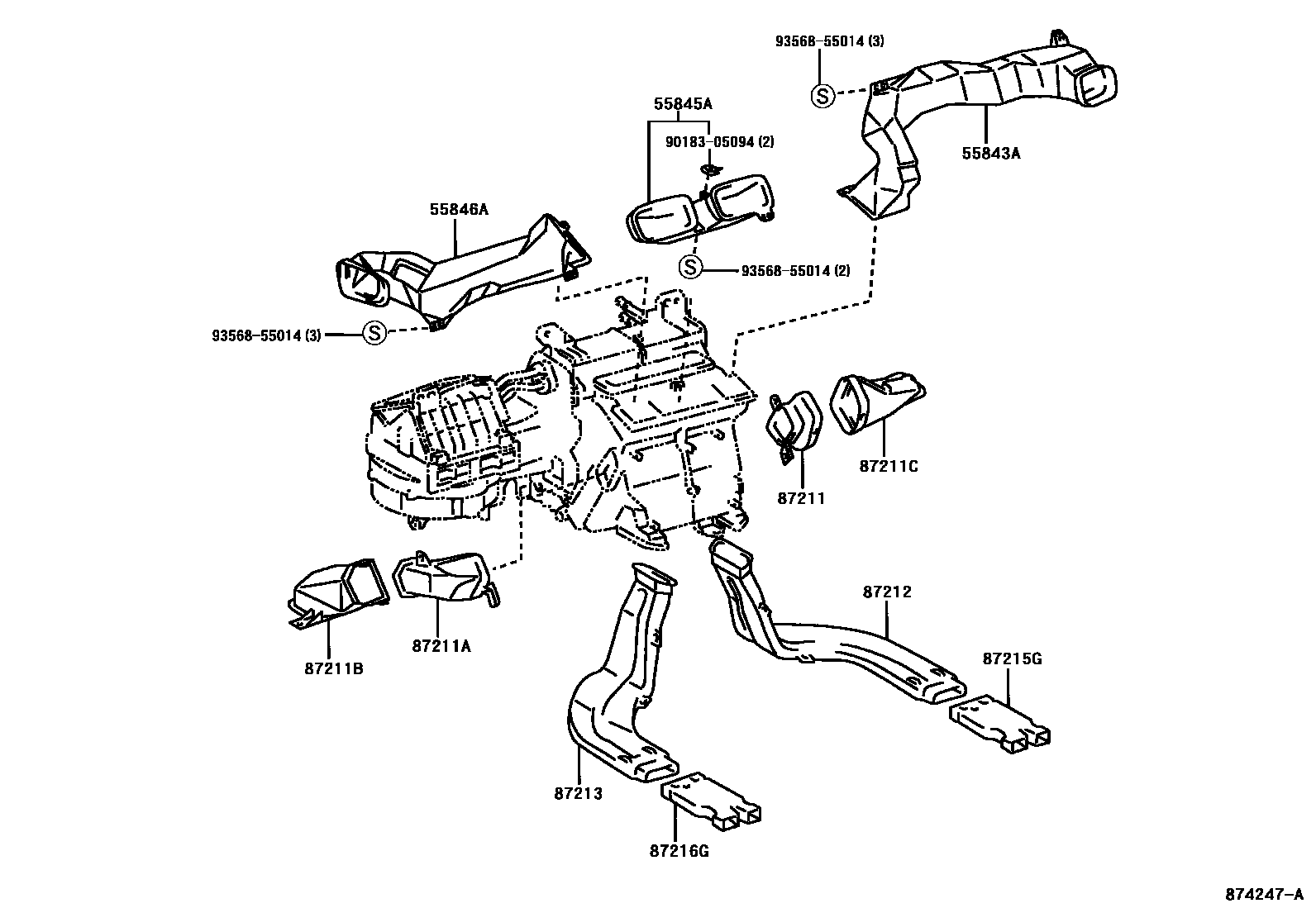

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55843ADUCT, HEATER TO REGISTER, NO.1
55845ADUCT, HEATER TO REGISTER, NO.3
55846ADUCT, HEATER TO REGISTER, NO.4
87211DUCT, AIR, NO.1
87211ADUCT, AIR, NO.2
87211BDUCT, AIR, NO.3
87211CDUCT, AIR, NO.4
87212DUCT, AIR, REAR NO.1
87213DUCT, AIR, REAR NO.2
87215GGUIDE, AIR DUCT, REAR RH
87216GGUIDE, AIR DUCT, REAR LH
9018305094
main90183-05094
9356855014
main93568-55014
13 parts on this diagram · 2 diagrams in section
