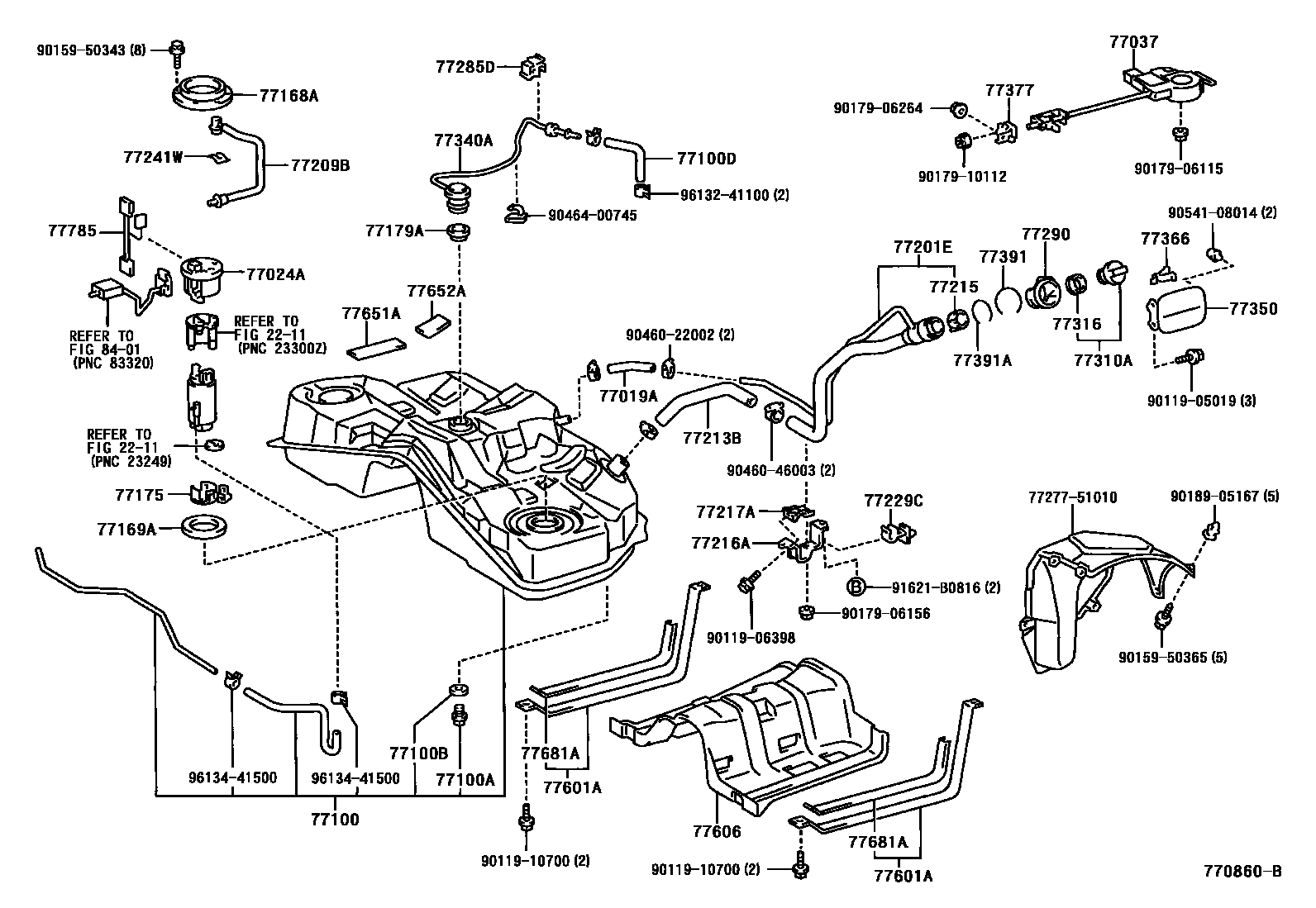

FUEL TANK & TUBE
2211
77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
sub77001-30551
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
sub95337-06020
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-30170
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77285DCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
7727751010TUBE, FUEL RETURN, NO.1
main77277-51010
9011905019
main90119-05019
9011906398
main90119-06398
9011910700
main90119-10700
9015950343
main90159-50343
9015950365
main90159-50365
9017906115
main90179-06115
9017906156
main90179-06156
9017906264
main90179-06264
9017910112
main90179-10112
9018905167
main90189-05167
9046022002
main90460-22002
9046046003
main90460-46003
9046400745
main90464-00745
9054108014
main90541-08014
91621B0816
main91621-B0816
9613241100
main96132-41100
9613441500
main96134-41500
55 parts on this diagram · 2 diagrams in section
