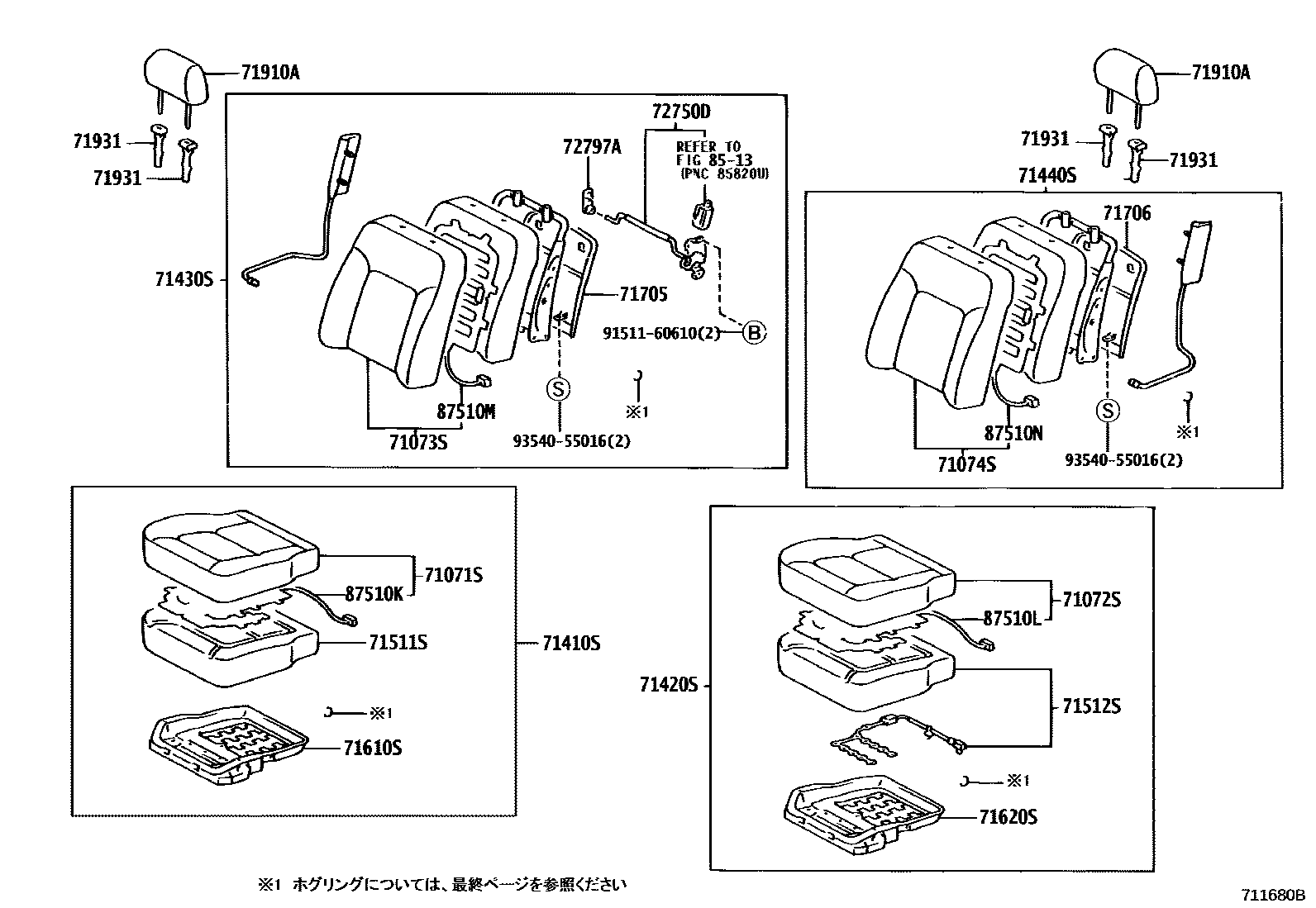

FRONT SEAT & SEAT TRACK

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-51090-A1i200008

IVORY,TRIM0#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-51090-A1i200008

IVORY,TRIM0#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-51080-A1i200008

IVORY,TRIM0#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-51060-A1i200008

IVORY,TRIM0#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-51090-A1i200008

***,IVORY,TRIM0#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-51090-A1i200008

***,IVORY,TRIM0#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-51080-A1i200008

IVORY,TRIM0#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-51060-A1i200008

IVORY,TRIM0#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-51020i200008

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-51020i200008

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-51010i200008

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-51010i200008

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-51020-A0i200008

IVORY,TRIM0#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-51020-A0i200008

IVORY,TRIM0#

71910AHEADREST ASSY, FRONT SEAT

main71910-51040-A0×2i200008

IVORY,TRIM0#

71931SUPPORT, FRONT SEAT HEADREST

main71930-28040-A1×2i200008

main71931-28050-A1×2i200008

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-51010i200008

72797ASPACER, LUMBAR SUPPORT

main72797-51010i200008

8513SEAT MOTOR & SEAT HEATER

→ Go to FIG 85-13

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-51010i200008

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-51030i200008

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-51020i200008

87510NHEATER ASSY, FRONT SEATBACK, LH

main87510-51020i200008

9151160610

main91511-60610

9354055016

main93540-55016

25 parts on this diagram · 3 diagrams in section
