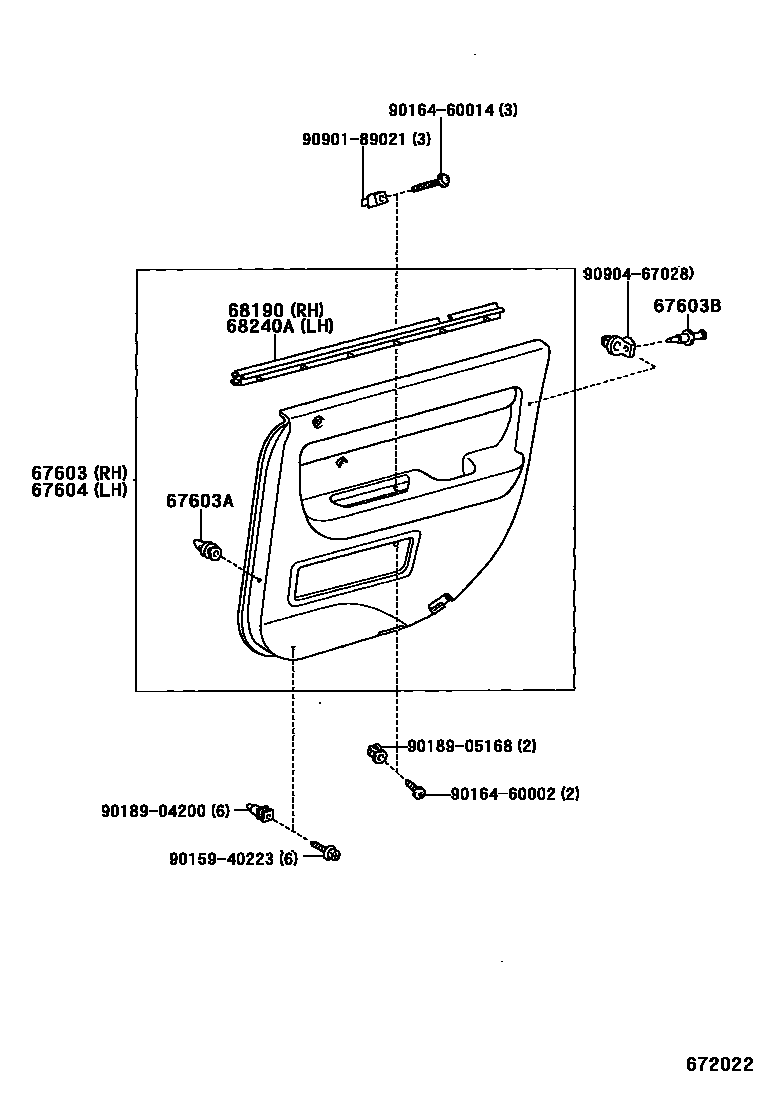

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-51050-A1iJCG17200008

IVORY,TRIM0#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-09206×4iJCG17200008

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-A0×4iJCG17200008

IVORY,TRIM0#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-51050-A1iJCG17200008

IVORY,TRIM0#

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-51020iJCG17200008

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-51020iJCG17200008

9015940223

main90159-40223

9016460002

main90164-60002

9016460014

main90164-60014

9018904200

main90189-04200

9018905168

main90189-05168

9090189021

main90901-89021

9090467028

main90904-67028

13 parts on this diagram · 2 diagrams in section
