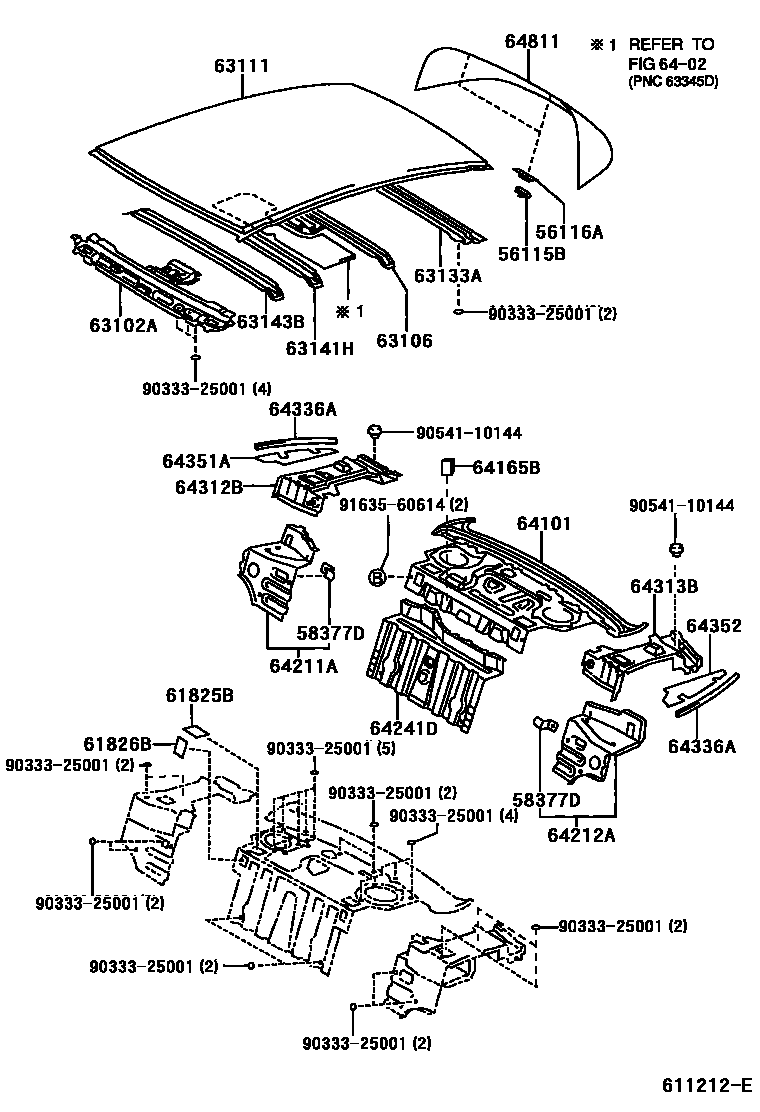

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010×2iJCG17200008

56116ASPACER, WINDSHIELD GLASS

main56116-22050×2iJCG17200008

58377DRETAINER, LOWER BACK TRIM

main58377-22020iJCG17200008

61825BPLATE, NOISE CONTROL, NO.2

main61825-51020×2iJCG17200008

61826BPLATE, NOISE CONTROL, NO.3

main61825-51020×2iJCG17200008

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-51020iJCG17200008

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-51020iJCG17200008

63111PANEL, ROOF

main63111-51020iJCG17200008

63133AFRAME, BACK WINDOW, UPPER

main63105-51900iJCG17200008

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-51020iJCG17200008

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-51020iJCG17200008

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

64101PANEL SUB-ASSY, UPPER BACK

main64101-51904iJCG17200008

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-51010iJCG17200008

64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-51020iJCG17200008

64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-51020iJCG17200008

64241DPANEL, ROOM PARTITION

main64241-51020iJCG17200008

64312BBRACKET, PACKAGE TRAY, RH

main64312-51900iJCG17200008

64313BBRACKET, PACKAGE TRAY, LH

main64313-51900iJCG17200008

64336APAD, PACKAGE TRAY TRIM SILENCER, SIDE

main64336-51010×2iJCG17200008

64351APAD, PACKAGE TRAY TRIM, NO.1

main64351-51010iJCG17200008

64352PAD, PACKAGE TRAY TRIM, NO.2

main64352-51010iJCG17200008

64811GLASS, BACK WINDOW

main64811-51050iJCG17200008

9033325001

main90333-25001

9054110144

main90541-10144

9163560614

main91635-60614

26 parts on this diagram · 1 diagram in section
