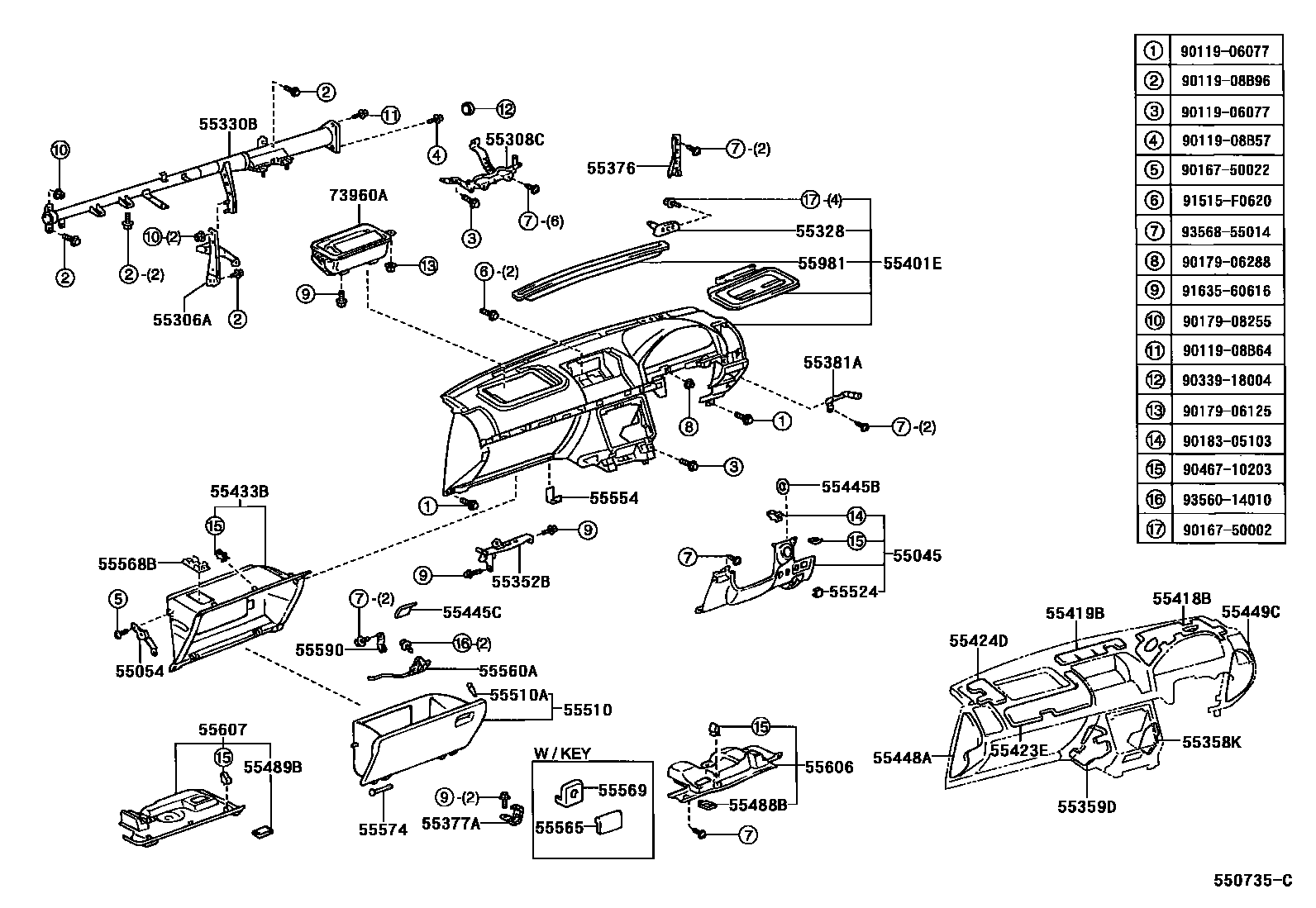

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-51010-A0iJCG17200008

IVORY,TRIM0#

55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

main55054-51010iJCG17200008

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-51010iJCG17200008

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-51010iJCG17200008

55328PIN, INSTRUMENT PANEL, NO.1

main55328-51020iJCG17200008

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-51010iJCG17200008

55352BBRACKET, CENTER CONSOLE, NO.2

main55352-51010iJCG17200008

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-51020iJCG17200008

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-51020iJCG17200008

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-51010iJCG17200008

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-51010iJCG17200008

55381ABRACKET, FINISH PANEL MOUNTING

main55381-51010iJCG17200008

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-51020-C0iJCG17200008

BLACK,TRIM0#

55418BSPACER,METER HOOD

main55418-51020iJCG17200008

55419BSPACER, METER HOOD, NO.2

main55419-51020iJCG17200008

55423ECUSHION, CENTER CLUSTER, NO.1

main55423-51020iJCG17200008

55424DCUSHION, CENTER CLUSTER, NO.2

main55424-51020iJCG17200008

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-51010iJCG17200008

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-30160-A1iJCG17200008

IVORY,TRIM0#

55445CPLATE, INSTRUMENT PANEL BOX

main55445-51010iJCG17200008

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-51020iJCG17200008

55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55449-51020iJCG17200008

55488BLENS, FRONT FOOT LAMP, NO.1

main55489-50010iJCG17200008

55489BLENS, FRONT FOOT LAMP, NO.2

main55489-50010iJCG17200008

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-51010-A0iJCG17200008

IVORY,TRIM0#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-05020iJCG17200008

55524COVER, SWITCH BACE HOLE

main55524-51010-A0iJCG17200008

IVORY,TRIM0#

55554SEAL, GLOVE COMPARTMENT DOOR

main55554-51010iJCG17200008

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-51010iJCG17200008

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-A1iJCG17200008

IVORY,TRIM0#

55568BPLATE, GLOVE COMPARTMENT DOOR FINISH

main55568-24020iJCG17200008

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-A1iJCG17200008

IVORY,TRIM0#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iJCG17200008

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-51010iJCG17200008

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-51010iJCG17200008

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-51011-A0iJCG17200008-200012

IVORY,TRIM0#

main55607-51012-A0iJCG17200012-200104

IVORY,TRIM0#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-51010-C0iJCG17200008

BLACK,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-51010iJCG17200008

9011906077

main90119-06077

9011908B57

main90119-08B57

9011908B64

main90119-08B64

9011908B96

main90119-08B96

9016750002

main90167-50002

9016750022

main90167-50022

9017906125

main90179-06125

9017906288

main90179-06288

9017908255

main90179-08255

9018305103

main90183-05103

9033918004

main90339-18004

9046710203

main90467-10203

91515F0620

main91515-F0620

9163560616

main91635-60616

9356014010

main93560-14010

9356855014

main93568-55014

54 parts on this diagram · 2 diagrams in section
