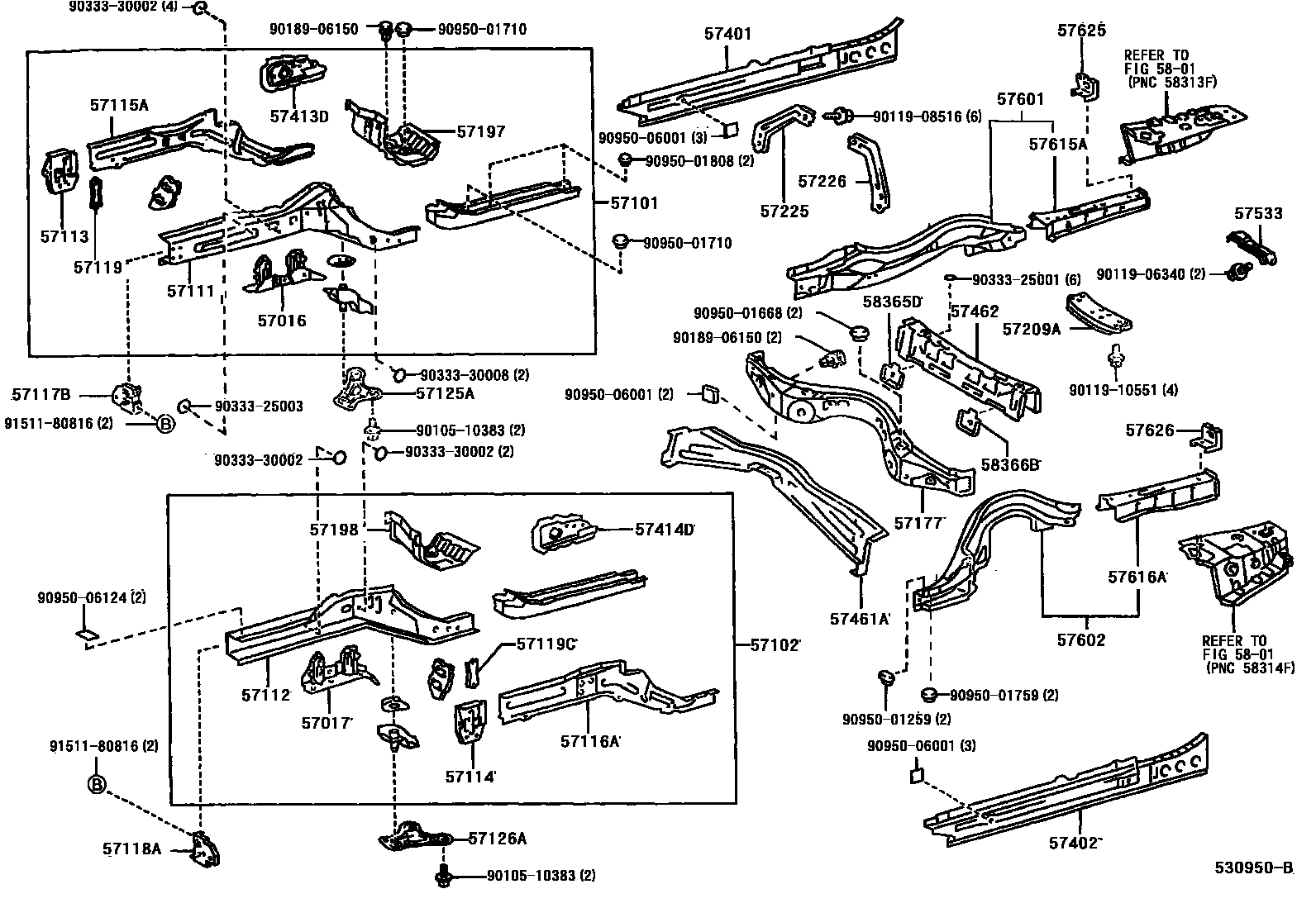

FLOOR SIDE MEMBER
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57119PLATE, FRONT SIDE MEMBER, FRONT
57119CPLATE, FRONT SIDE MEMBER, FRONT
57125APLATE, STRUT BAR BRACKET, RH
57126APLATE, STRUT BAR BRACKET, LH
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57413DEXTENSION, FLOOR SIDE, INNER RH
57414DEXTENSION, FLOOR SIDE, INNER LH
57461AMEMBER, CENTER FLOOR CROSS
57462MEMBER, CENTER FLOOR CROSS, NO.2
57533BRACE, FRONT FLOOR, CENTER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH
5801FLOOR PAN & LOWER BACK PANEL
58365DBRACKET, FUEL TANK SUPPORT, RH
58366BBRACKET, FUEL TANK SUPPORT, LH
9010510383
main90105-10383
9011906340
main90119-06340
9011908516
main90119-08516
9011910551
main90119-10551
9018906150
main90189-06150
9033325001
main90333-25001
9033325003
main90333-25003
9033330002
main90333-30002
9033330008
main90333-30008
9095001259
main90950-01259
9095001668
main90950-01668
9095001710
main90950-01710
9095001759
main90950-01759
9095001808
main90950-01808
9095006001
main90950-06001
9095006124
main90950-06124
9151180816
main91511-80816
55 parts on this diagram · 1 diagram in section
