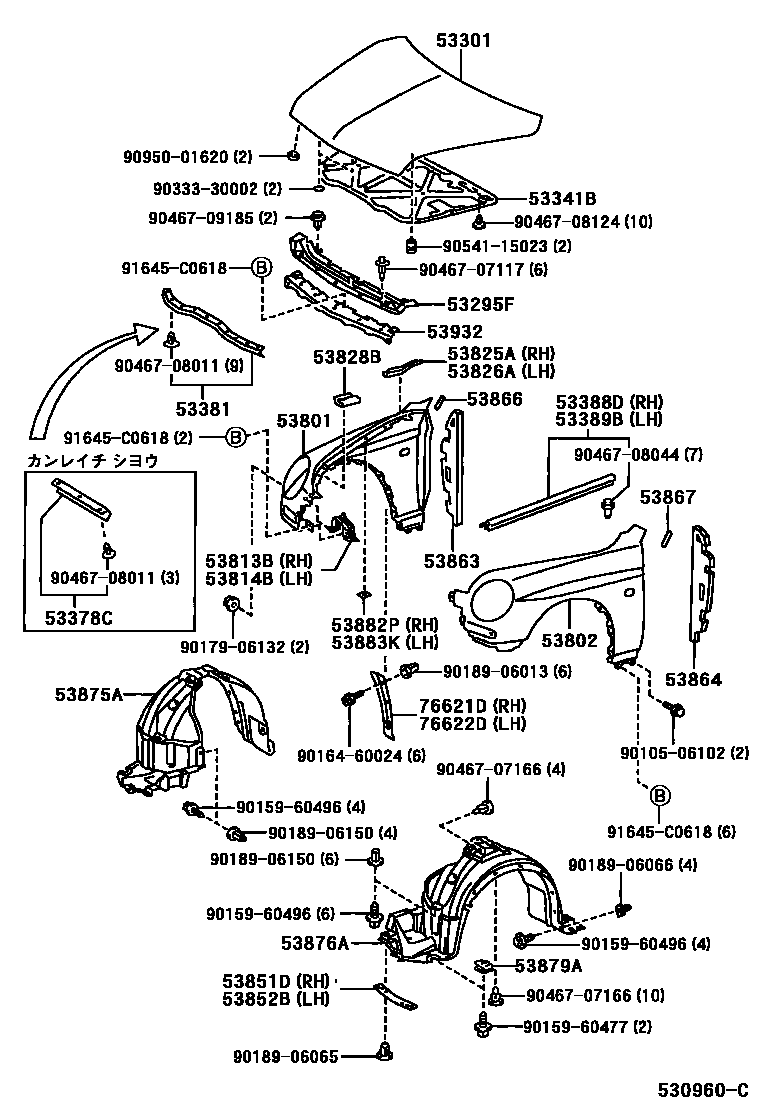

HOOD & FRONT FENDER
53295FDEFLECTOR, RADIATOR LOWER AIR
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53378CSEAL, HOOD AIR INTAKE DUCT
53381SEAL, HOOD TO RADIATOR SUPPORT
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813BEXTENSION, FRONT FENDER, RH
53814BEXTENSION, FRONT FENDER, LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53851DPAD, FRONT WHEEL OPENING EXTENSION, RH
53852BPAD, FRONT WHEEL OPENING EXTENSION, LH
53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH
53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
53932PANEL SUB-ASSY, FRONT END
76621DMUDGUARD, FRONT FENDER, RH
76622DMUDGUARD, FRONT FENDER, LH
9010506102
main90105-06102
9015960477
main90159-60477
9015960496
main90159-60496
9016460024
main90164-60024
9017906132
main90179-06132
9018906013
main90189-06013
9018906065
main90189-06065
9018906066
main90189-06066
9018906150
main90189-06150
9033330002
main90333-30002
9046707117
main90467-07117
9046707166
main90467-07166
9046708011
main90467-08011
9046708044
main90467-08044
9046708124
main90467-08124
9046709185
main90467-09185
9054115023
main90541-15023
9095001620
main90950-01620
91645C0618
main91645-C0618
47 parts on this diagram · 1 diagram in section
