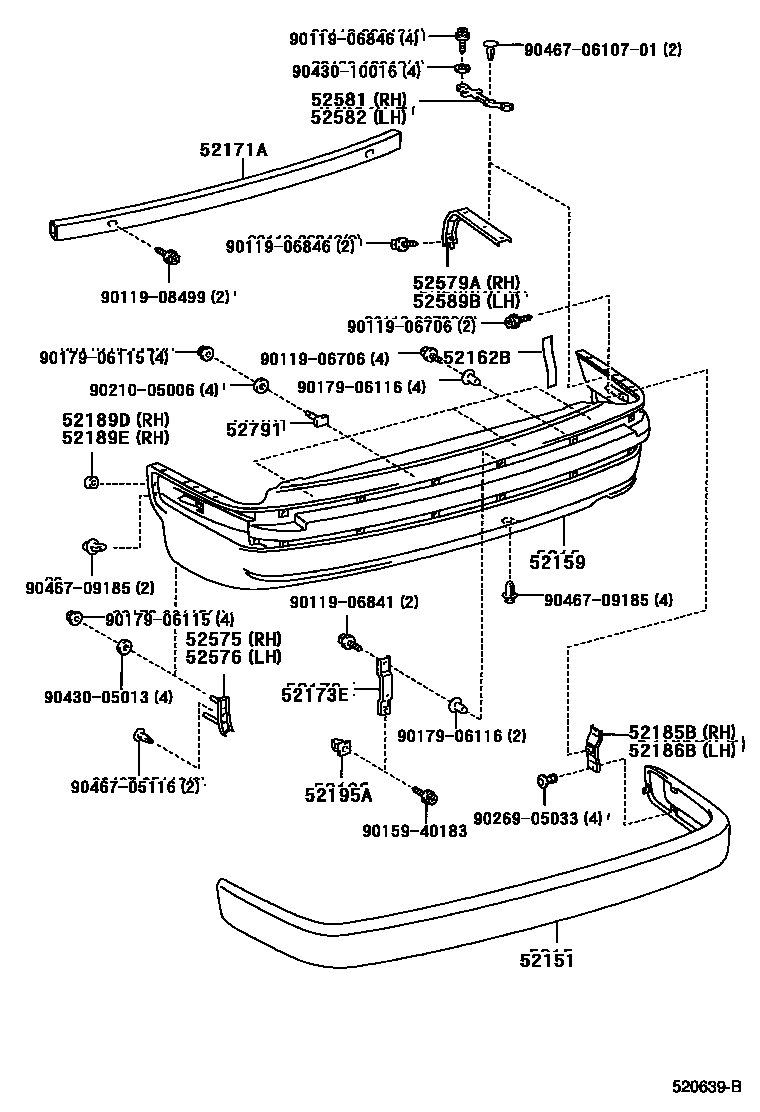

REAR BUMPER & BUMPER STAY
52151BUMPER ASSY, REAR
52159COVER, REAR BUMPER
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
52162BPLATE, REAR BUMPER, NO.1
52171AREINFORCEMENT, REAR BUMPER, NO.1
52173EBRACKET, REAR BUMPER BAR, RH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52189DBRACKET, REAR BUMPER SIDE, NO.3 RH
52189EBRACKET, REAR BUMPER SIDE, NO.3 LH
52195ASPACER, REAR BUMPER EXTENSION
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52579ARETAINER, REAR BUMPER SIDE, NO.3 RH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52589BRETAINER, REAR BUMPER SIDE, NO.3 LH
52791BOLT, BUMPER MOULDING SET, NO.1
9011906706
main90119-06706
9011906841
main90119-06841
9011906846
main90119-06846
9011908499
main90119-08499
9015940183
main90159-40183
9017906115
main90179-06115
9017906116
main90179-06116
9021005006
main90210-05006
9026905033
main90269-05033
9043005013
main90430-05013
9043010016
main90430-10016
9046705116
main90467-05116
904670610701
main90467-0610701
9046709185
main90467-09185
31 parts on this diagram · 1 diagram in section
