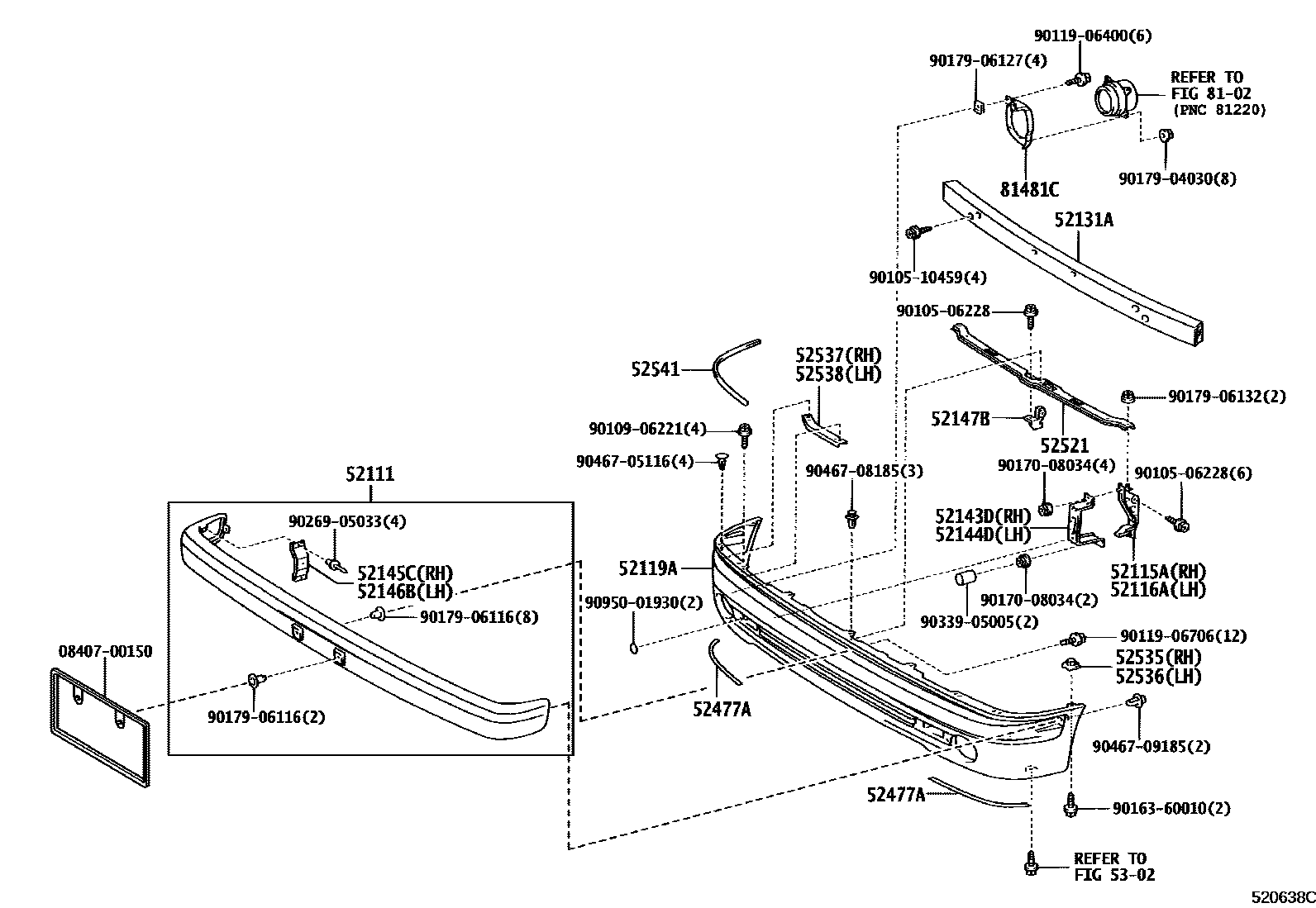

FRONT BUMPER & BUMPER STAY

52111BUMPER ASSY, FRONT

main52111-51010iJCG17200008

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-51020iJCG17200008

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-51020iJCG17200008

52119ACOVER, FRONT BUMPER

main52119-51030-C0iJCG17200008

BLACK,202

main52119-51030-J0iJCG17200008

BLUE MC.,8J9

main52119-51030-J1iJCG17200008

LT.GRAYISH BLUE M.M.,8M3

52131AREINFORCEMENT, FRONT BUMPER

main52131-51010iJCG17200008

52143DBRACKET, FRONT BUMPER SIDE, RH

main52143-51010iJCG17200008

52144DBRACKET, FRONT BUMPER SIDE, LH

main52143-51010iJCG17200008

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-51020iJCG17200008

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52145-51020iJCG17200008

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-51020iJCG17200008

52477AGUARD, FRONT BUMPER, NO.3

main52477-51010×2iJCG17200008

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-51010iJCG17200008

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30150iJCG17200008

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-30150iJCG17200008

52537RETAINER, FRONT BUMPER END, RH

main52537-51010iJCG17200008

52538RETAINER, FRONT BUMPER END, LH

main52538-51010iJCG17200008

52541PROTECTOR, FRONT BUMPER

main52541-51020×2iJCG17200008

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8102FOG LAMP

→ Go to FIG 81-02

81481CBRACKET, FOG LAMP

main81481-51010iJCG17200008

main81482-51010iJCG17200008

0840700150

main08407-00150

9010506228

main90105-06228

9010510459

main90105-10459

9010906221

main90109-06221

9011906400

main90119-06400

9011906706

main90119-06706

9016360010

main90163-60010

9017008034

main90170-08034

9017904030

main90179-04030

9017906116

main90179-06116

9017906127

main90179-06127

9017906132

main90179-06132

9026905033

main90269-05033

9033905005

main90339-05005

9046705116

main90467-05116

9046708185

main90467-08185

9046709185

main90467-09185

9095001930

main90950-01930

38 parts on this diagram · 1 diagram in section
