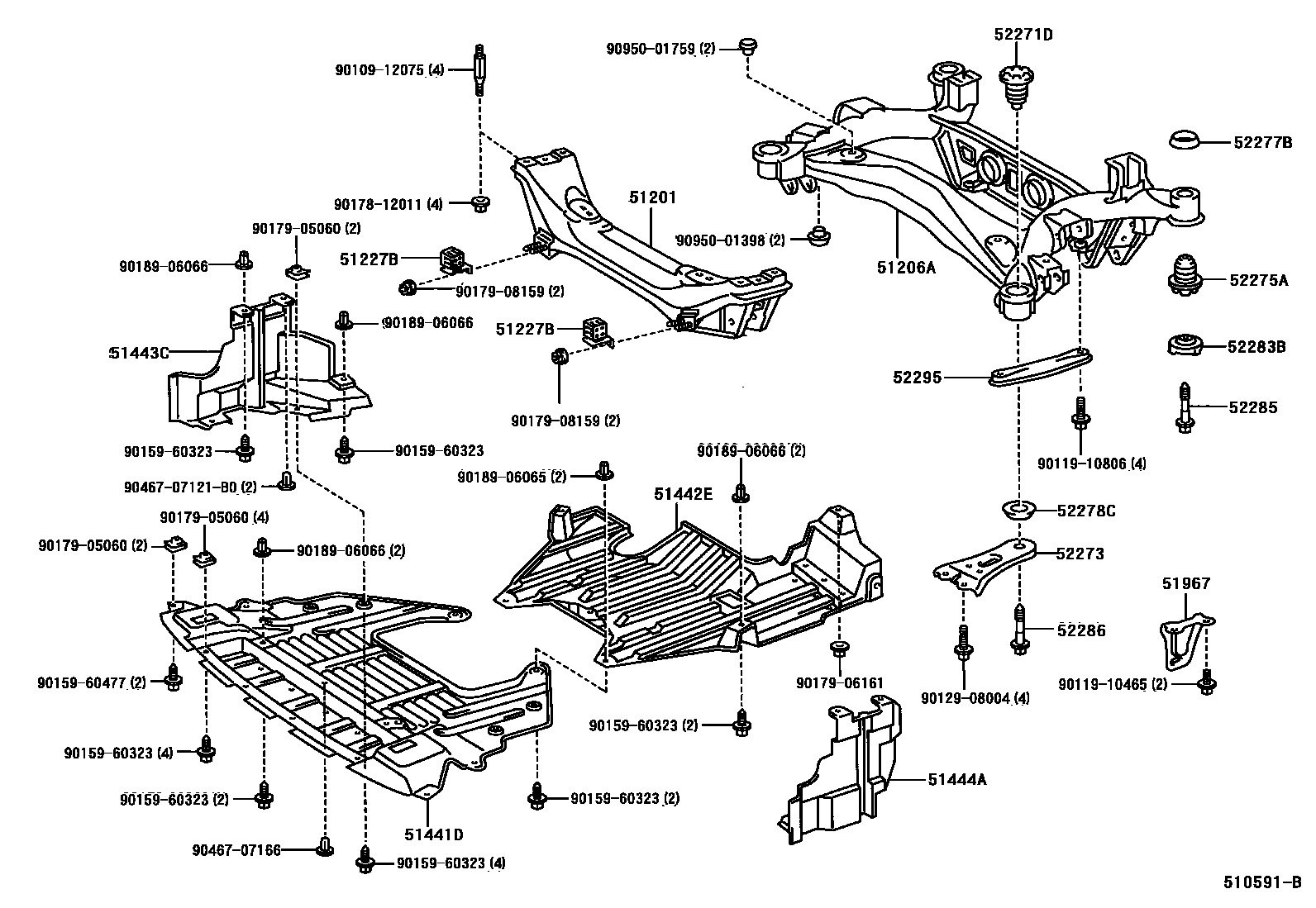

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-51020iJCG17200008

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-51030iJCG17200008

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-51010×2iJCG17200008

51441DCOVER, ENGINE UNDER

main51441-51010iJCG17200008

51442ECOVER, ENGINE UNDER, NO.2

main51420-51010iJCG17200008

51443CCOVER, ENGINE UNDER, REAR RH

main51443-51010iJCG17200008

51444ACOVER, ENGINE UNDER, REAR LH

main51444-51010iJCG17200008

51967HOOK, TRANSPORT, REAR

main51967-22070iJCG17200008

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-51010×2iJCG17200008

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-51010×2iJCG17200008

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30080×2iJCG17200008

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30020×2iJCG17200008

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-51010×2iJCG17200008

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050×2iJCG17200008

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2iJCG17200008

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010×2iJCG17200008

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010×2iJCG17200008

9010912075

main90109-12075

9011910465

main90119-10465

9011910806

main90119-10806

9012908004

main90129-08004

9015960323

main90159-60323

9015960477

main90159-60477

9017812011

main90178-12011

9017905060

main90179-05060

9017906161

main90179-06161

9017908159

main90179-08159

9018906065

main90189-06065

9018906066

main90189-06066

9046707121B0

main90467-07121B0

9046707166

main90467-07166

9095001398

main90950-01398

9095001759

main90950-01759

33 parts on this diagram · 1 diagram in section
