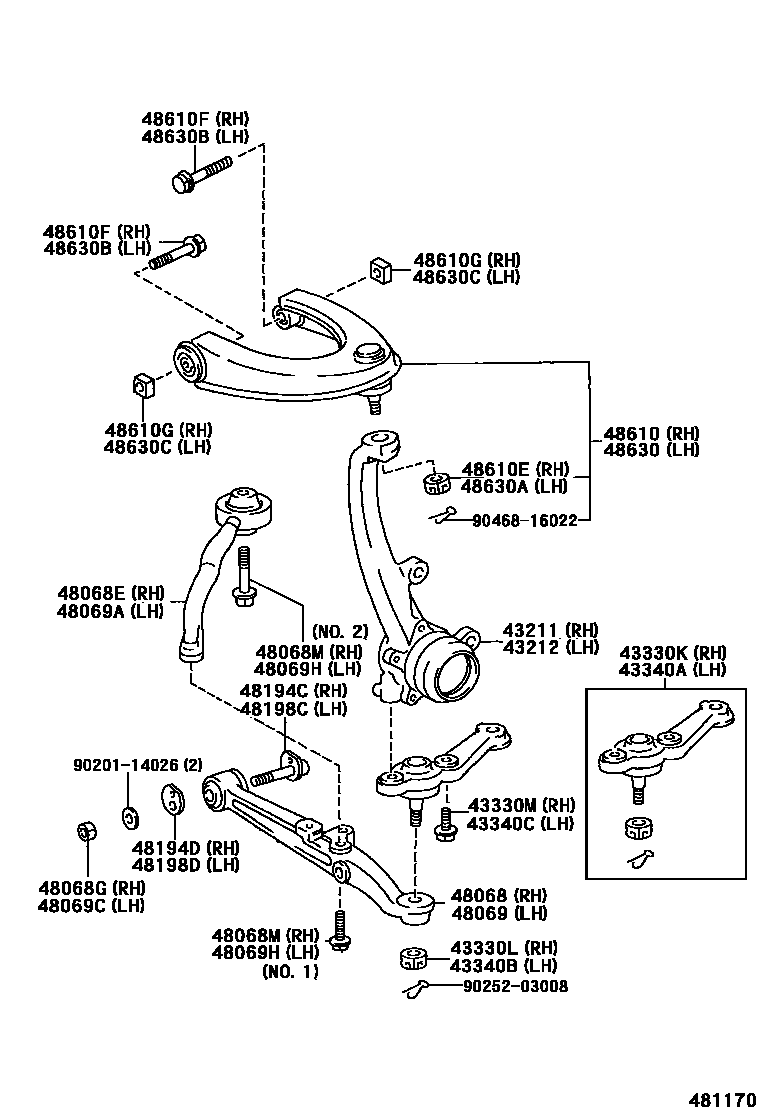

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-30190iJCG17200008-200104

43212KNUCKLE, STEERING, LH

main43212-30140iJCG17200008-200104

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29385iJCG17200008-200011

main43330-59085iJCG17200011

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iJCG17200008

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12141×2iJCG17200008

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29165iJCG17200008-200011

main43340-59085iJCG17200011

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iJCG17200008

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12141×2iJCG17200008

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-51010iJCG17200008

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48660-51020iJCG17200008

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90170-14012iJCG17200008

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053×2iJCG17200008

main90901-05010iJCG17200008

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-51010iJCG17200008

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48670-51020iJCG17200008

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90170-14012iJCG17200008

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053×2iJCG17200008

main90901-05010iJCG17200008

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22040iJCG17200008

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-14010iJCG17200008

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22040iJCG17200008

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-14010iJCG17200008

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-59025iJCG17200008

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12002iJCG17200008

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-10812×2iJCG17200008

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10010×2iJCG17200008

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-59025iJCG17200008

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12002iJCG17200008

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-10812×2iJCG17200008

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10010×2iJCG17200008

9020114026

main90201-14026

9025203008

main90252-03008

9046816022

main90468-16022

31 parts on this diagram · 2 diagrams in section
