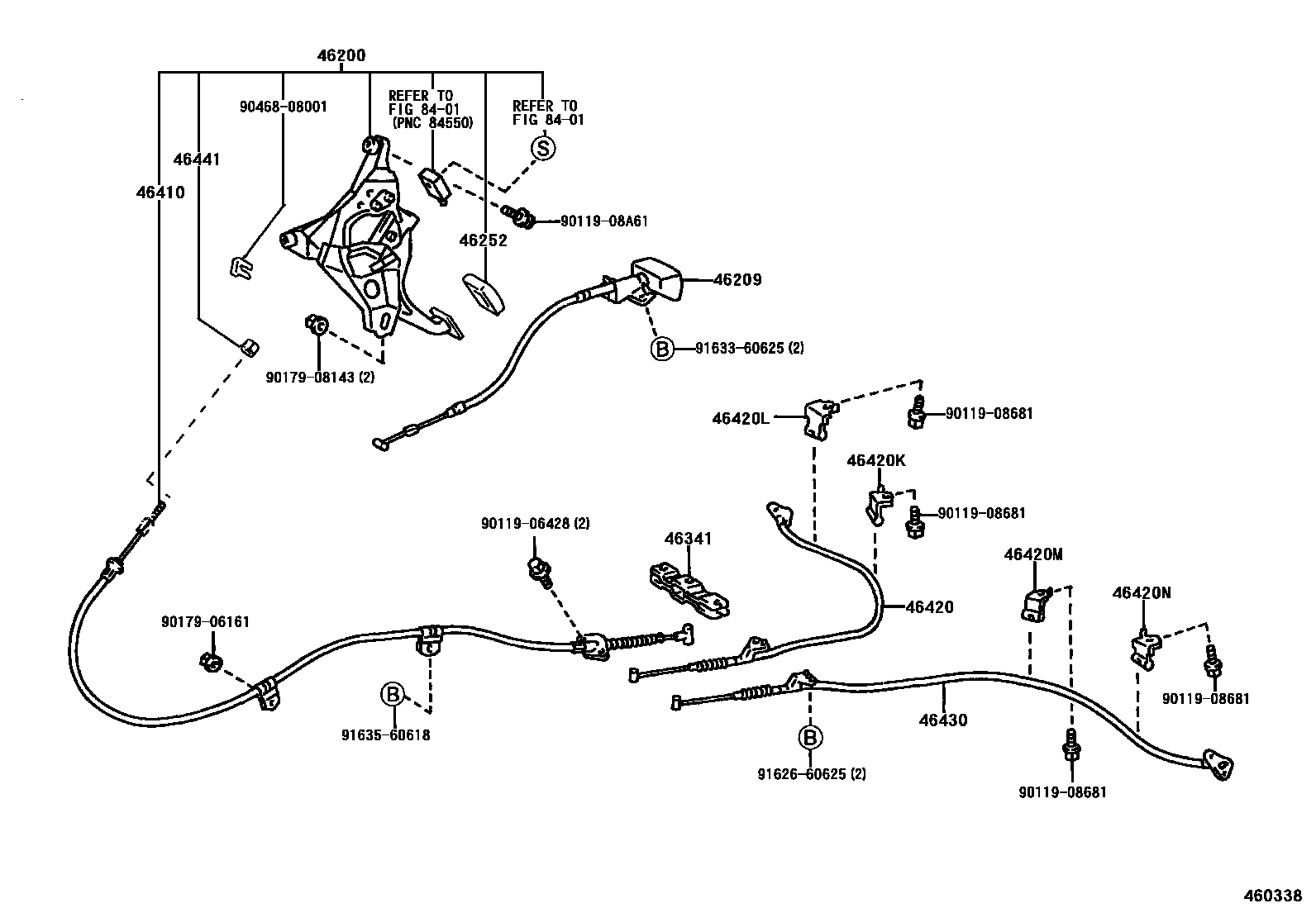

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-51011iJCG17200008

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-51010-A0iJCG17200008

IVORY,TRIM0#

46252PAD, PARKING PEDAL

main46252-50010iJCG17200008

46341EQUALIZER, PARKING BRAKE

main46341-24010iJCG17200008

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-51010iJCG17200008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-51011iJCG17200008-200010

CHUO HATSUJO

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-51010iJCG17200008

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-51020iJCG17200008

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46431-51010iJCG17200008

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-51020iJCG17200008

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-51011iJCG17200008-200010

CHUO HATSUJO

46441NUT, WIRE ADJUSTING, NO.1

main46441-51010iJCG17200008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906428

main90119-06428

9011908681

main90119-08681

9011908A61

main90119-08A61

9017906161

main90179-06161

9017908143

main90179-08143

9046808001

main90468-08001

9162660625

main91626-60625

9163360625

main91633-60625

9163560618

main91635-60618

22 parts on this diagram · 2 diagrams in section
