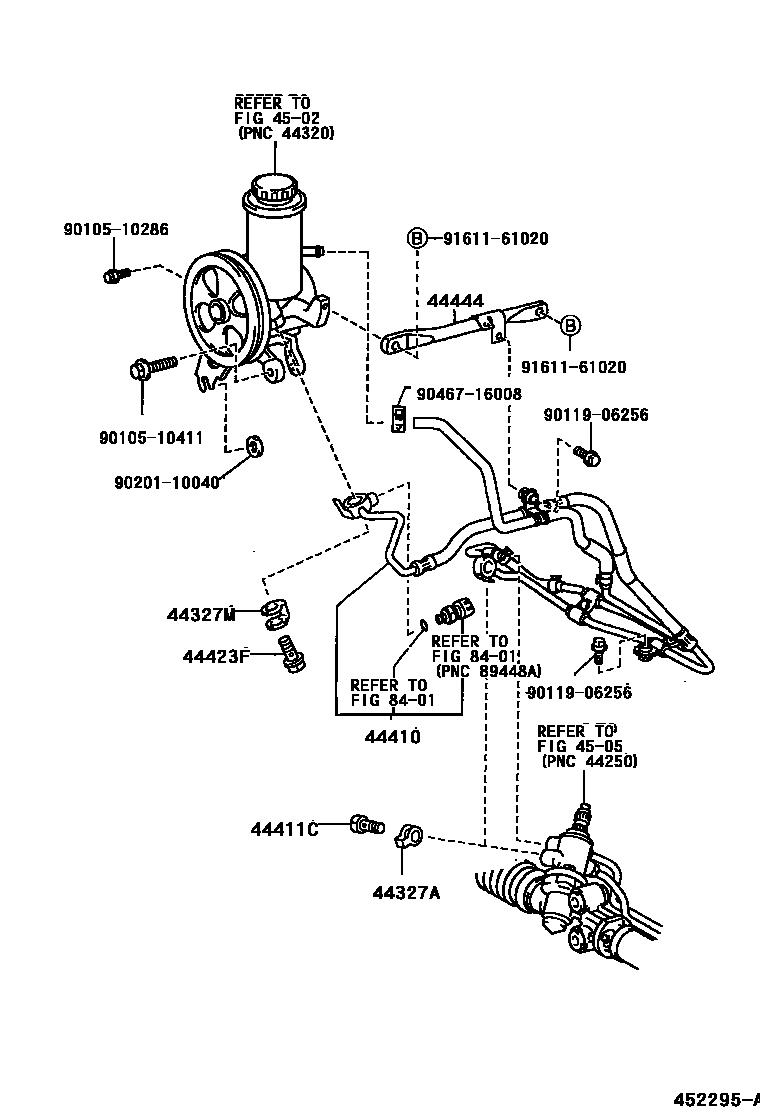

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iJCG17200008

44327MGASKET, PRESSURE PORT, NO.2

main44327-30040iJCG17200008

44410TUBE ASSY, PRESSURE FEED

main44410-30510iJCG17200008

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iJCG17200008

44423FBOLT, UNION

main90401-16034iJCG17200008

44444STAY, PUMP, REAR

main44444-51010iJCG17200008

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510286

main90105-10286

9010510411

main90105-10411

9011906256

main90119-06256

9020110040

main90201-10040

9046716008

main90467-16008

9161161020

main91611-61020

15 parts on this diagram · 1 diagram in section
