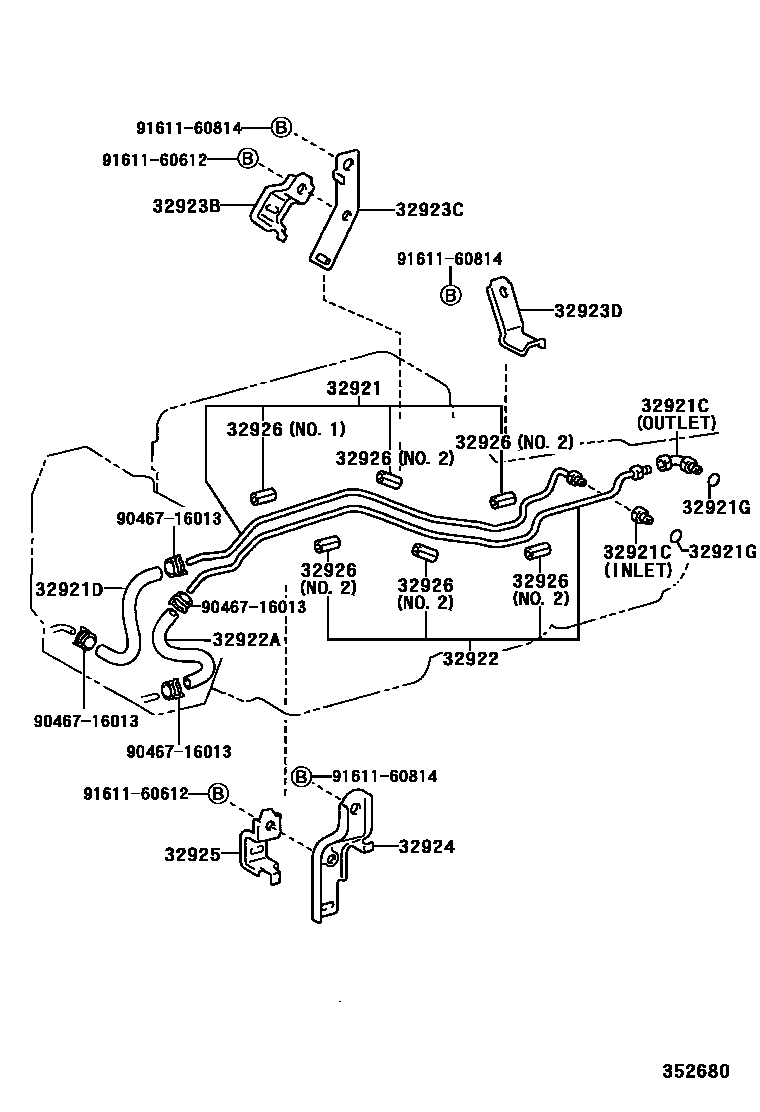

Toyota ORIGIN — OIL COOLER & TUBE (ATM)
32921CUNION(FOR OIL COOLER TUBE)
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922AHOSE(FOR OIL COOLER OUTLET)
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
9046716013
9161160612
9161160814
15 parts on this diagram · 1 diagram in section
OIL COOLER & TUBE (ATM) for Toyota ORIGIN
This section contains 15 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota ORIGIN. Key components include: TUBE, OIL COOLER INLET, NO.1, UNION(FOR OIL COOLER TUBE), HOSE(FOR OIL COOLER INLET), RING, O(FOR OIL COOLER TUBE UNION), TUBE, OIL COOLER OUTLET, NO.1.
