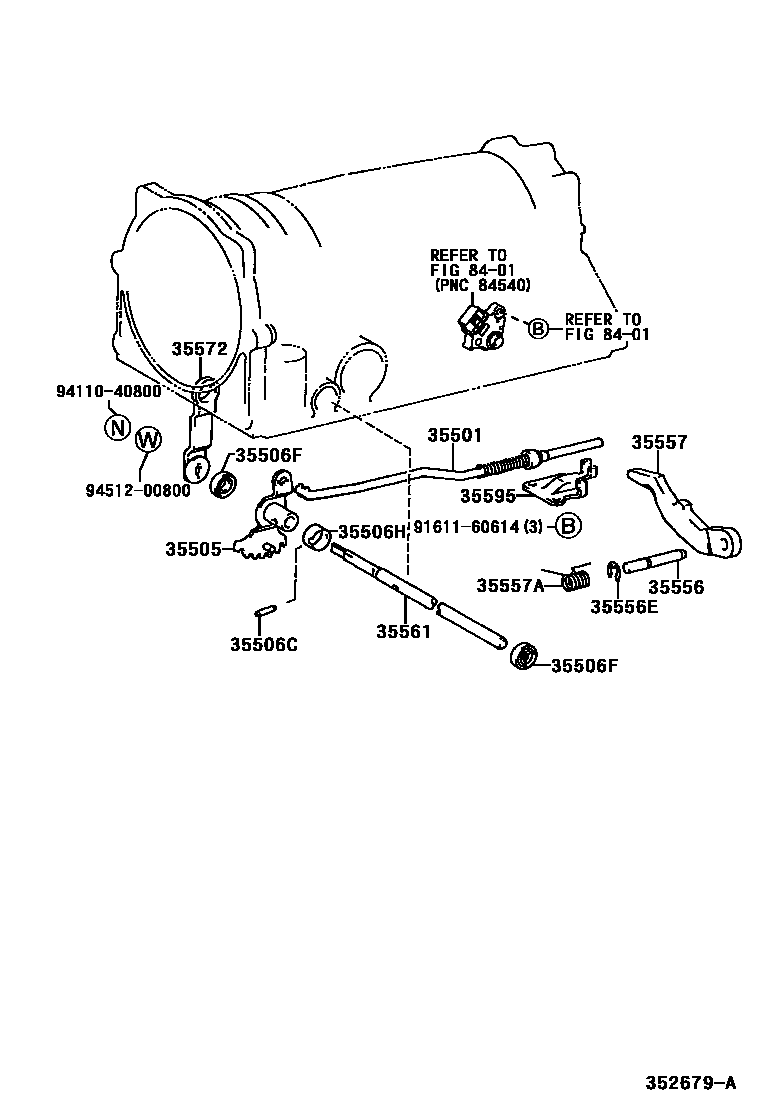

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iJCG17200008

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50010iJCG17200008

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJCG17200008

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iJCG17200008

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJCG17200008

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJCG17200008

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJCG17200008

35557PAWL, PARKING LOCK

main35557-30020iJCG17200008

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJCG17200008

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJCG17200008

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iJCG17200008

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJCG17200008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

16 parts on this diagram · 1 diagram in section
