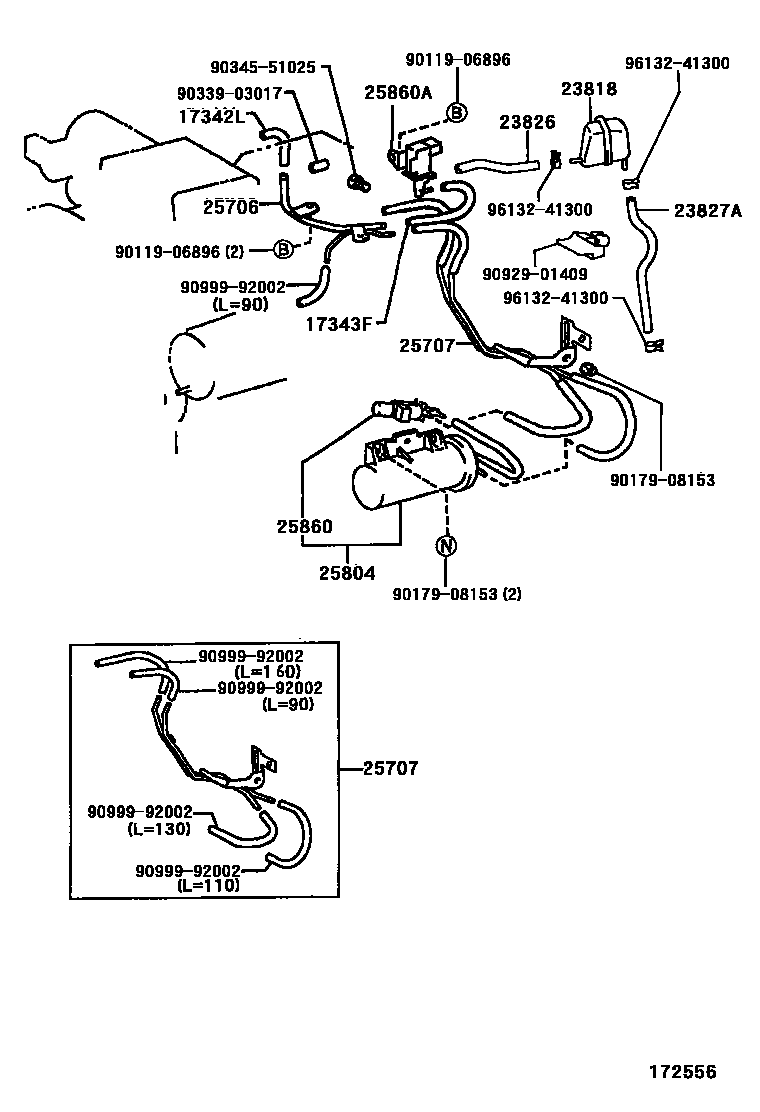

VACUUM PIPING

17342LHOSE, AIR, NO.2

main17342-46170i2JZGE..JCG17200008

17343FHOSE, AIR, NO.3

main17343-46100i2JZGE..JCG17200008

23818PIPE, FUEL VAPOR FEED

main23818-46110i2JZGE..JCG17200008

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-46030i2JZGE..JCG17200008

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-46030i2JZGE..JCG17200008

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-46090i2JZGE..JCG17200008

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-46090i2JZGE..JCG17200008

25804VALVE SET, VACUUM CONTROL

main25804-46060i2JZGE..JCG17200008

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-46010i2JZGE..JCG17200008

main90910-12124i2JZGE..JCG17200008

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12188i2JZGE..JCG17200008

9011906896

main90119-06896

9017908153

main90179-08153

9033903017

main90339-03017

9034551025

main90345-51025

9092901409

main90929-01409

9099992002

main90999-92002

9613241300

main96132-41300

17 parts on this diagram · 1 diagram in section
