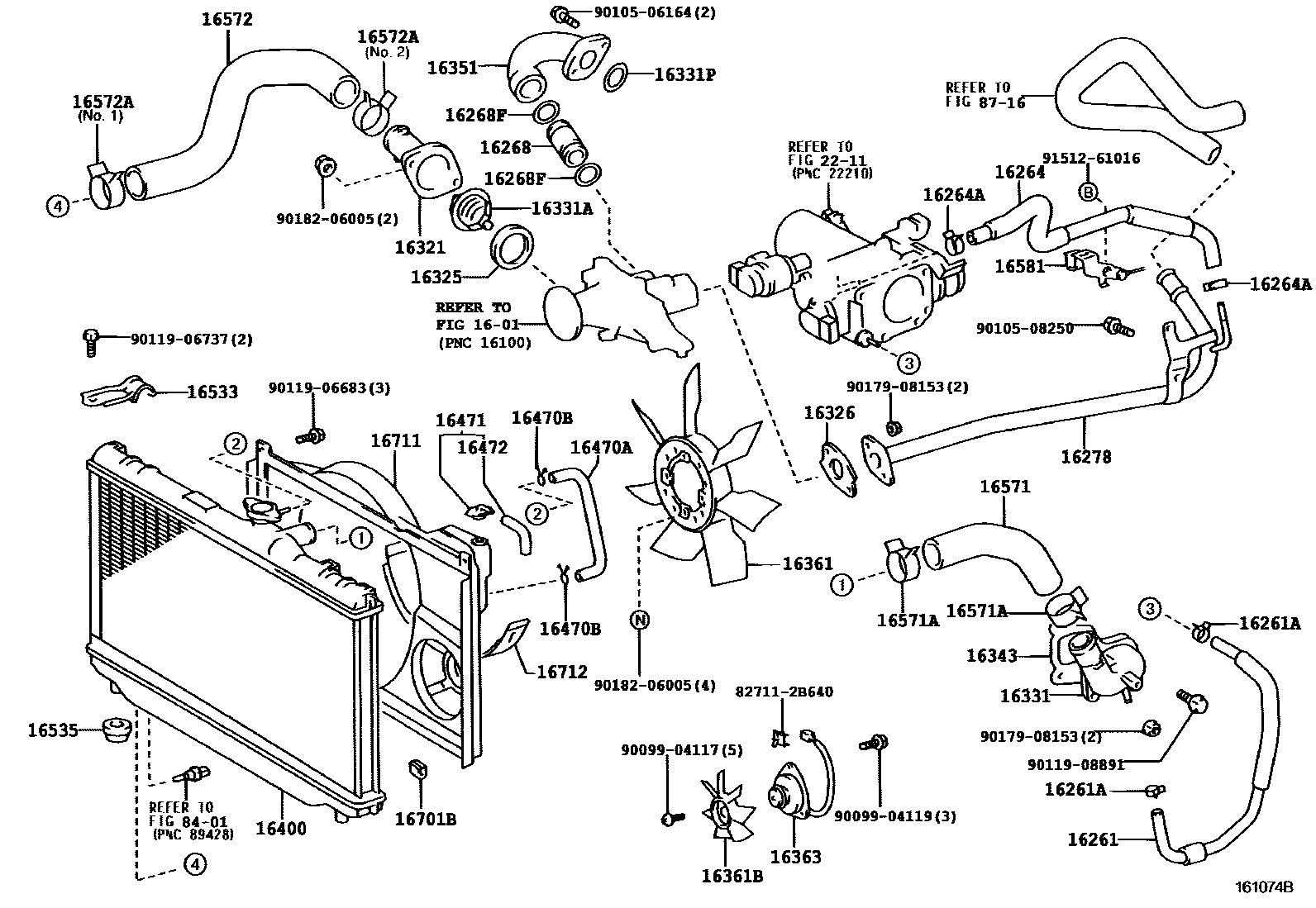

RADIATOR & WATER OUTLET
1601WATER PUMP
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16326GASKET, WATER INLET HOUSING, NO.2
16331OUTLET, WATER
16331ATHERMOSTAT
16331PRING,O(FOR WATER OUTLET)
16343GASKET, WATER OUTLET HOUSING
16351OUTLET, WATER BY-PASS
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581CLAMP, HOSE(FOR WATER HOSE)
16701BCUSHION, FAN SHROUD
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
2211FUEL INJECTION SYSTEM
8401SWITCH & RELAY & COMPUTER
8716HEATING & AIR CONDITIONING - WATER PIPING
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B640
9009904117
main90099-04117
9009904119
main90099-04119
9010506164
main90105-06164
9010508250
main90105-08250
9011906683
main90119-06683
9011906737
main90119-06737
9011908891
main90119-08891
9017908153
main90179-08153
9018206005
main90182-06005
9151261016
main91512-61016
48 parts on this diagram · 2 diagrams in section
