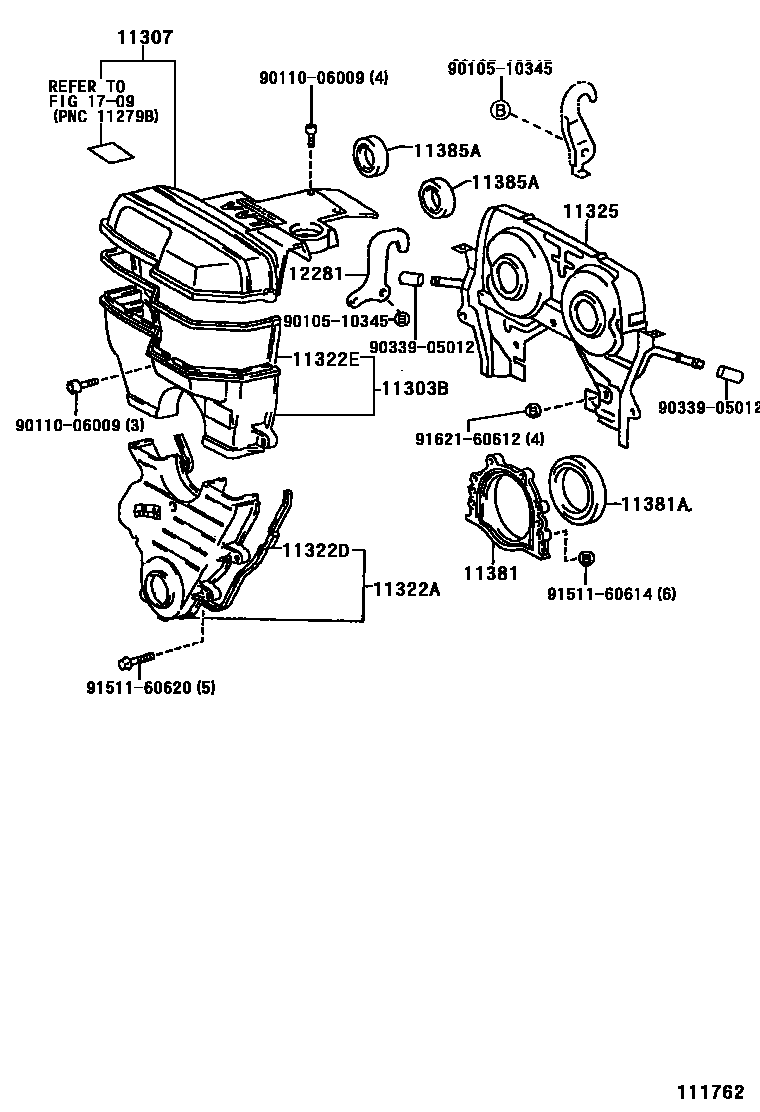

TIMING GEAR COVER & REAR END PLATE

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-46040i2JZGE..JCG17200008

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-46060i2JZGE..JCG17200008

11322ACOVER, TIMING BELT, NO.1

main11302-46031i2JZGE..JCG17200008

11322DGASKET, TIMING BELT COVER, NO.1

main11328-46041i2JZGE..JCG17200008

11322EGASKET, TIMING BELT COVER, NO.2

main11329-46040i2JZGE..JCG17200008

11325COVER, TIMING BELT, NO.4

main11325-46042i2JZGE..JCG17200008

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i2JZGE..JCG17200008

11381ASEAL, ENGINE REAR OIL

main90311-90006i2JZGE..JCG17200008

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-40020×2i2JZGE..JCG17200008

12281HANGER, ENGINE, NO.1

main12281-46050i2JZGE..JCG17200008

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9010510345

main90105-10345

9011006009

main90110-06009

9033905012

main90339-05012

9151160614

main91511-60614

9151160620

main91511-60620

9162160612

main91621-60612

17 parts on this diagram · 1 diagram in section
