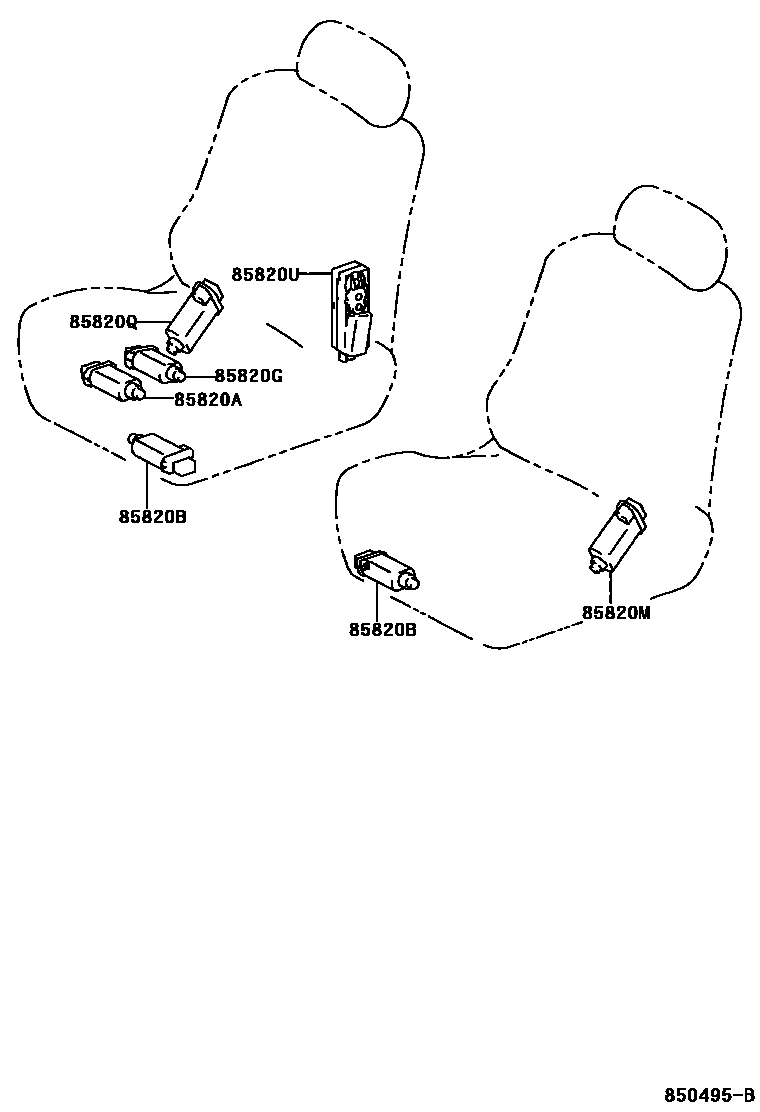

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-30510iJCG1#199805-200005

main85820-30710iJCG1#200006-200104

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-30510×2iJCG1#199805-200005

main85820-30710×2iJCG1#; JCG10,15200006-200104

85820GMOTOR ASSY, POWER SEAT

main85820-30510iJCG1#199805-200005

main85820-30710iJCG1#200006-200104

85820MMOTOR ASSY, POWER SEAT (FOR FRONT LH SEAT RECLINING)

main85820-30570iJCG1#199805-200005

main85820-30720iJCG1#200006-200104

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-30510iJCG1#199805-200005

main85820-30720iJCG1#200006-200104

85820UMOTOR ASSY, POWER SEAT(FOR LUMBAR SUPPORT)

main85820-30560iJCG1#199805-200104

6 parts on this diagram · 1 diagram in section
