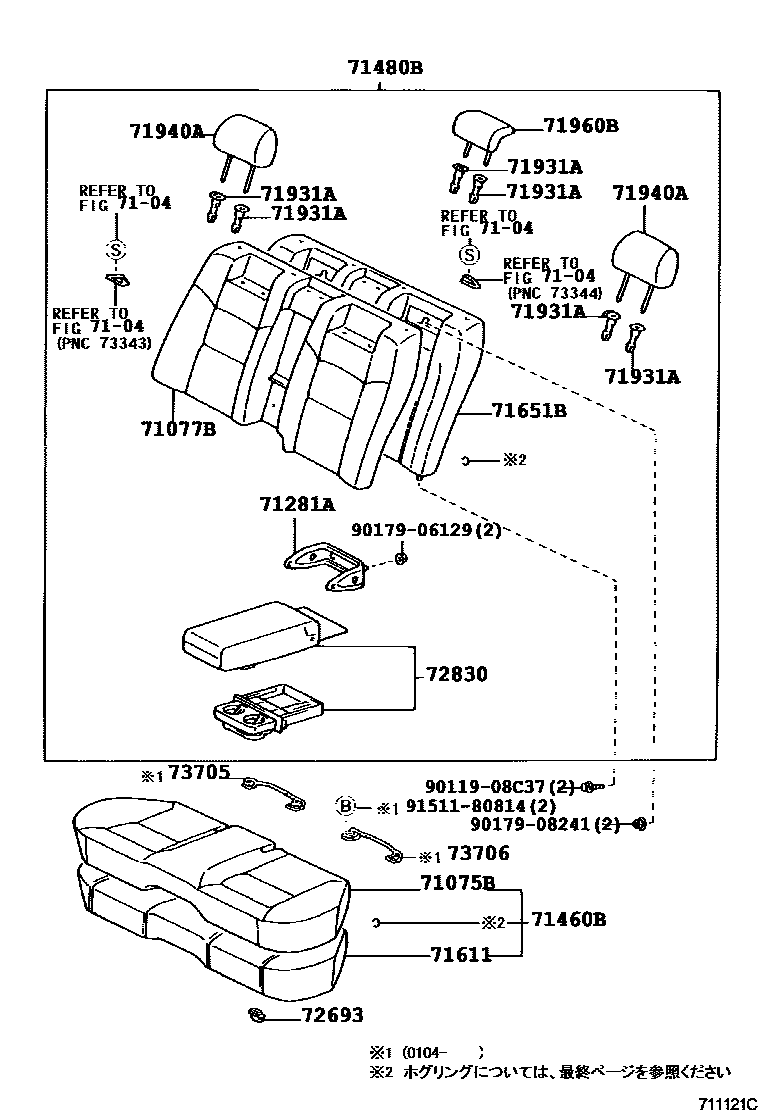

REAR SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
IVORY,TRIM00,01
BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
IVORY,TRIM00,01
BLACK,TRIM2#
PRIME SELECTION *(P),IVORY,TRIM05
71281AHINGE, REAR SEAT CENTER ARMREST
IVORY,TRIM00,01
BLACK,TRIM2#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
***,IVORY,TRIM0#
***,BLACK,TRIM2#
***,PRIME SELECTION *(P),IVORY,TRIM05
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
***,IVORY,TRIM0#
***,BLACK,TRIM2#
***,PRIME SELECTION *(P),IVORY,TRIM05
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
PRIME SELECTION *(P),IVORY,TRIM05
71960BHEADREST ASSY, REAR SEAT, CENTER
IVORY,TRIM00,01
PRIME SELECTION *(P),IVORY,TRIM0#
72693HOOK, REAR SEAT CUSHION LOCK
72830ARMREST ASSY, REAR SEAT, CENTER
IVORY,TRIM00,01
BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
9011908C37
main90119-08C37
9017906129
main90179-06129
9017908241
main90179-08241
9151180814
main91511-80814
19 parts on this diagram · 2 diagrams in section
