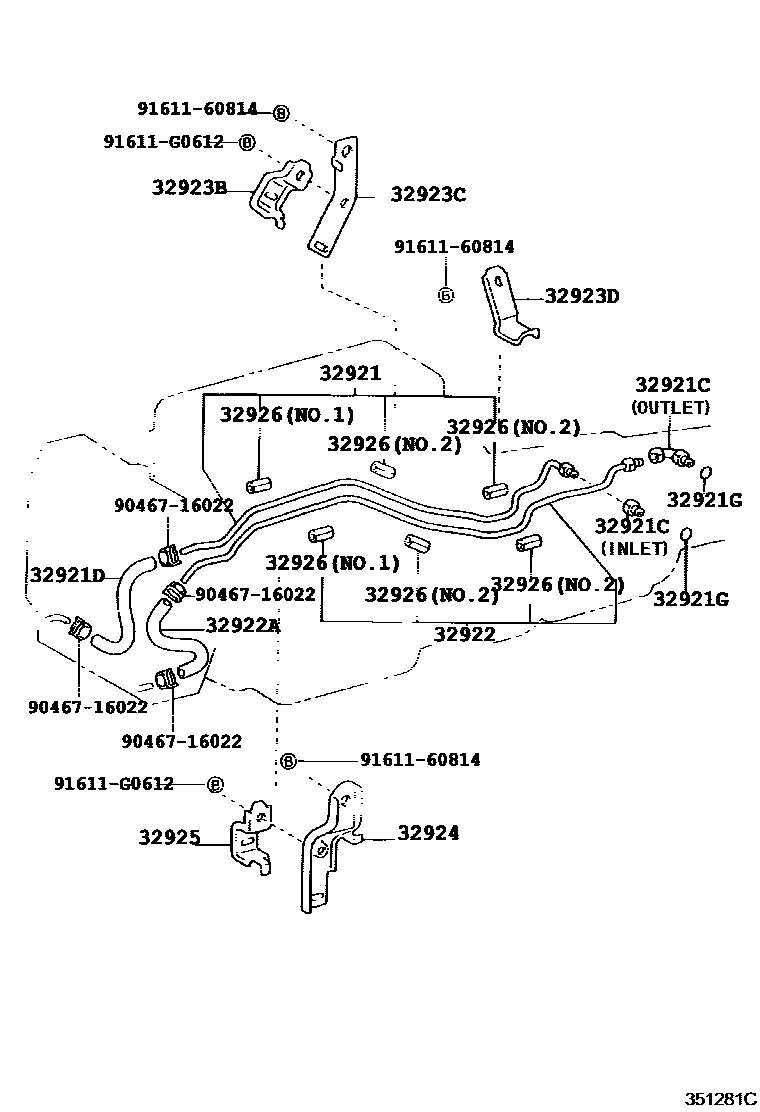

OIL COOLER & TUBE (ATM)

0001 1A340E,A650E 0003 1A340H 0004 1A650E

32921TUBE, OIL COOLER INLET, NO.1

main32921-22590iJCG10200104-200106

main32921-51010iJCG11200104-200706

main32921-51020iJCG15199912-200104

main32921-51030iJCG10200106-200508

main32921-53080iJCG10200509-200706

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iJCG10,11200104

main90407-16009iJCG1#199805-200104

main90407-16012iJCG15200104

32921DHOSE(FOR OIL COOLER INLET)

main90445-17069iJCG10200106

main90445-17100iJCG15200104

main90445-17101iJCG10200104-200106

main90445-17102iJCG10,11199805-200104

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iJCG1#199805-200104

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22790iJCG10200104-200508

main32922-51010iJCG10,11199805-200104

main32922-51020iJCG15199912-200104

main32922-53060iJCG10200509

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17083iJCG10200509

main90445-17096iJCG10200104-200509

main90445-17134iJCG10,11199805-200104

main90445-17166iJCG15200104

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-50020iJCG10,11199805-200104

main32929-51010iJCG15200104

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32923-30190iJCG10,11199805-200104

main32924-51010iJCG15200104

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main32929-50020iJCG15200104

main32929-51010iJCG10,11200104

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-51010iJCG10,11199805-200104

32925CLAMP, OIL COOLER TUBE, NO.3

main32929-50020iJCG10,11199805-200104

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iJCG11,15200104

main32926-30030×4iJCG1#199805-200104

9046716022

main90467-16022

9161160814

main91611-60814

91611G0612

main91611-G0612

15 parts on this diagram · 3 diagrams in section
