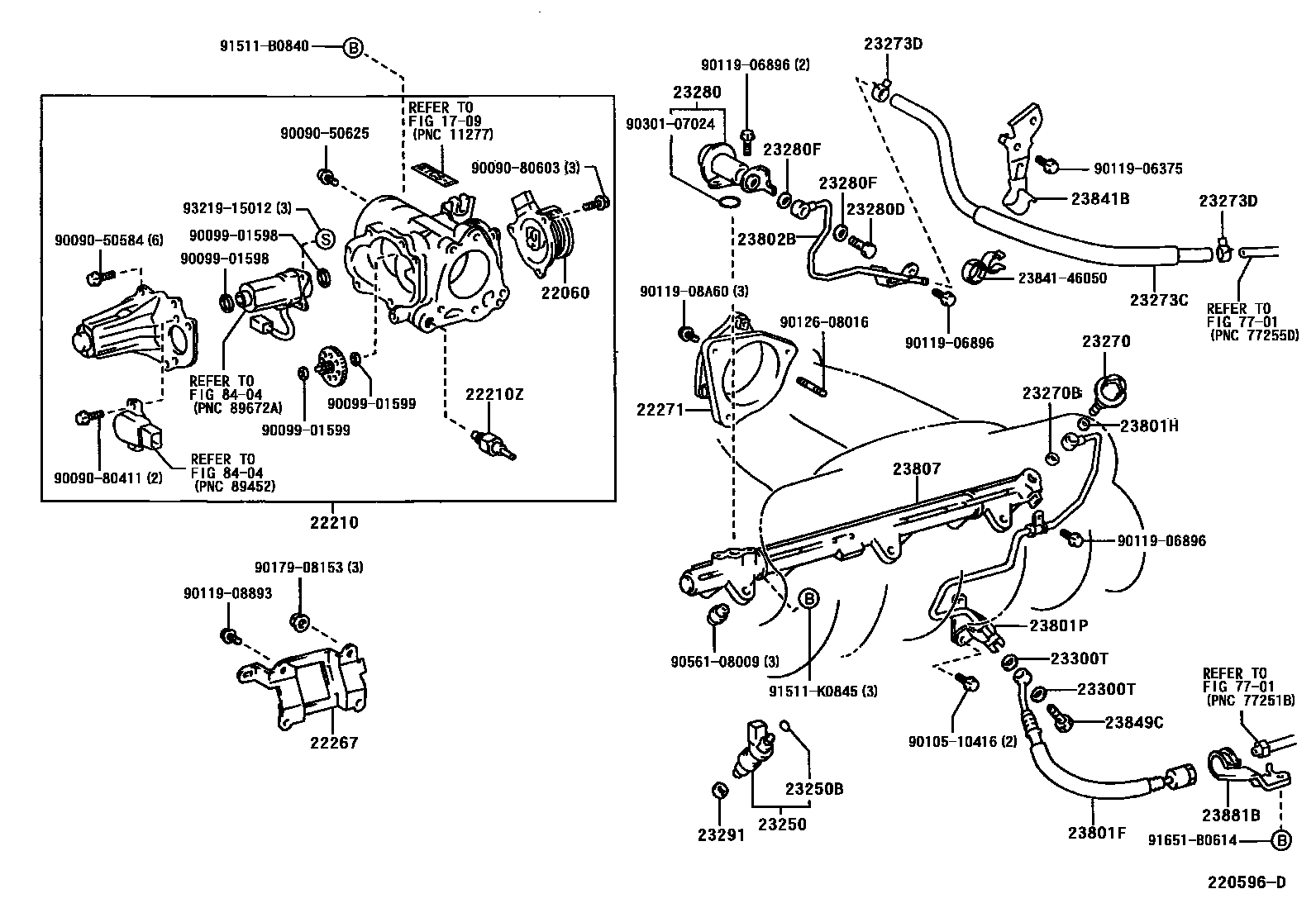

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1

1709

22060LEVER ASSY, THROTTLE W/SENSOR

main22060-46010i2JZGE..JCG11199805-200104

main22060-46030i1JZGE..JCG10199805-199905

sub22060-46031

main22060-46031i1JZGE..JCG10199905-200104

main22060-46060i1JZGE..JCG15199912-200104

22210BODY ASSY, THROTTLE

main22030-46130i2JZGE..JCG11199805-200104

main22030-46140i1JZGE..JCG10199805-200104

main22030-46200i1JZGE..JCG15199912-200104

main22030-46240i2JZFSE..JCG11200104

main22030-46250i1JZFSE..JCG10,15200104

22210ZTHERMOSTAT, MANIFOLD

main90916-03104i2JZGE..JCG11199805-200104

main90916-03105i1JZGE..JCG10,15199805-200104

22267BRACKET, THROTTLE BODY

main22267-46030i2JZGE..JCG11199805-200104

main22267-46040i1JZGE..JCG10,15199805-200104

main22267-46070i1JZFSE,2JZFSE..JCG1#200104

22271GASKET, THROTTLE BODY

main22271-46050i1JZGE..JCG10,15199805-200104

main22271-46070i2JZGE..JCG11199805-200104

main22271-46100i1JZFSE,2JZFSE..JCG1#200104

23250INJECTOR ASSY, FUEL

main23209-46080i1JZGE..JCG10,15199805-200104

main23209-46090i2JZGE..JCG11199805-200104

main23209-49046i2JZFSE..JCG11200104-200108

main23209-49055i1JZFSE..JCG10,15200104-200108

sub23209-49056

main23209-49056i1JZFSE..JCG10,15200108-200505

sub23209-49057

main23209-49057i1JZFSE..JCG10,15200505-200506

sub23209-49058

main23209-49058-A0i1JZFSE..JCG10,15200506

MARK BLACK

main23209-49058-B0i1JZFSE..JCG10,15200506

MARK BROWN

main23209-49065i2JZFSE..JCG11200108-200505

sub23209-49066

main23209-49066i2JZFSE..JCG11200505-200506

sub23209-49067

main23209-49067-A0i2JZFSE..JCG11200506

MARK BLACK

main23209-49067-B0i2JZFSE..JCG11200506

MARK BROWN

23250BRING, O(FOR FUEL INJECTOR)

main90301-06013i1JZFSE,2JZFSE..JCG1#200104-200506

sub90301-06018

main90301-06018i1JZFSE,2JZFSE..JCG1#200506

main90301-07001i1JZGE..JCG10199805-199812

main90301-07024i1JZGE..JCG10,15199805-200104

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i1JZFSE,2JZFSE..JCG1#200410

sub23207-31021

main23207-46021i1JZGE,2JZGE..JCG1#199805-200104

main23207-46030i1JZFSE,2JZFSE..JCG1#200104-200302

sub23207-46031

main23207-46031i1JZFSE,2JZFSE..JCG1#200302-200410

sub23207-31010

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010i1JZFSE,2JZFSE..JCG1#200104

main90430-12026i1JZGE,2JZGE..JCG1#199805-200104

23273CHOSE, FUEL, NO.2

main23271-46230i1JZGE..JCG10199805-200004

main23271-46231i1JZGE..JCG10200004-200104

main23273-46011i1JZFSE,2JZFSE..JCG10,11200104

main23273-46030i1JZGE..JCG15199912-200004

main23273-46031i1JZGE..JCG15200004-200104

main23273-46060i1JZFSE,2JZFSE..JCG1#200104

main23273-46070i1JZFSE..JCG15200104

23273DCLIP(FOR FUEL HOSE NO.2)

main90467-13039i1JZGE..JCG10,15199805-200204

sub96135-51300

main96135-41100i1JZFSE,2JZFSE..JCG1#200104-200204

sub96135-51100

main96135-51100i1JZFSE,2JZFSE..JCG1#200204

main96135-51300i1JZFSE,2JZFSE..JCG1#200204

23280REGULATOR ASSY, FUEL PRESSURE

main23280-46010i1JZGE..JCG10,15199805-200104

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-10038i1JZGE..JCG10,15199805-200104

main90401-12097i1JZFSE,2JZFSE..JCG1#200104

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-10012i1JZGE..JCG10,15199805-200104

23291INSULATOR, INJECTOR VIBRATION

main23291-46010i1JZGE..JCG10,15199805-200104

main23291-62010i2JZGE..JCG11199805-200104

23300TGASKET(FOR FUEL FILTER)

main90430-12026i1JZGE,2JZGE..JCG1#199805-200104

23801FHOSE, FUEL, NO.1

main23271-46240i1JZFSE..JCG15199912-200104

main90923-01422i1JZGE,2JZGE..JCG10,11199805-200104

23801HGASKET(FOR FUEL PIPE)

main90430-14008i1JZGE,2JZGE..JCG1#199805-200104

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-46031i2JZGE..JCG11199805-200104

main23801-46070i1JZGE..JCG10,15199805-200104

main23801-46081i2JZFSE..JCG11200104

main23801-46110i1JZFSE..JCG10,15200104

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-46070i1JZGE..JCG10,15199805-200104

main23802-46090i1JZFSE,2JZFSE..JCG1#200104-200701

sub23802-46091

main23802-46091i1JZFSE,2JZFSE..JCG1#200701

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-46030i2JZGE..JCG11199805-200104

sub23807-46031

main23807-46040i1JZGE..JCG10,15199805-200104

sub23807-46041

main23807-46050i2JZFSE..JCG11200104-200108

sub23807-46051

main23807-46060i1JZFSE..JCG10,15200104-200108

main23807-46061i1JZFSE,2JZFSE..JCG1#200108

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-46031i1JZGE..JCG10,15199805-200004

main23841-46050i1JZFSE..JCG15200104

main23841-46060i1JZFSE,2JZFSE..JCG1#200104

main23841-46080i1JZGE..JCG10,15200004-200104

23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)

main90401-12097i1JZGE,2JZGE..JCG1#199805-200104

23881BBRACKET, FUEL HOSE

main23881-46030i1JZGE,2JZGE..JCG10,11199805-200104

main23881-46040i1JZFSE..JCG15199912-200104

7701

8404

2384146050CLAMP, FUEL PIPE(HOSE), NO.1

main23841-46050

9009050584

main90090-50584

9009050625

main90090-50625

9009080411

main90090-80411

9009080603

main90090-80603

9009901598

main90099-01598

9009901599

main90099-01599

9010510416

main90105-10416

9011906375

main90119-06375

9011906896

main90119-06896

9011908893

main90119-08893

9011908A60

main90119-08A60

9012608016

main90126-08016

9017908153

main90179-08153

9030107024

main90301-07024

9056108009

main90561-08009

91511B0840

main91511-B0840

91511K0845

main91511-K0845

91651B0614

main91651-B0614

9321915012

main93219-15012
