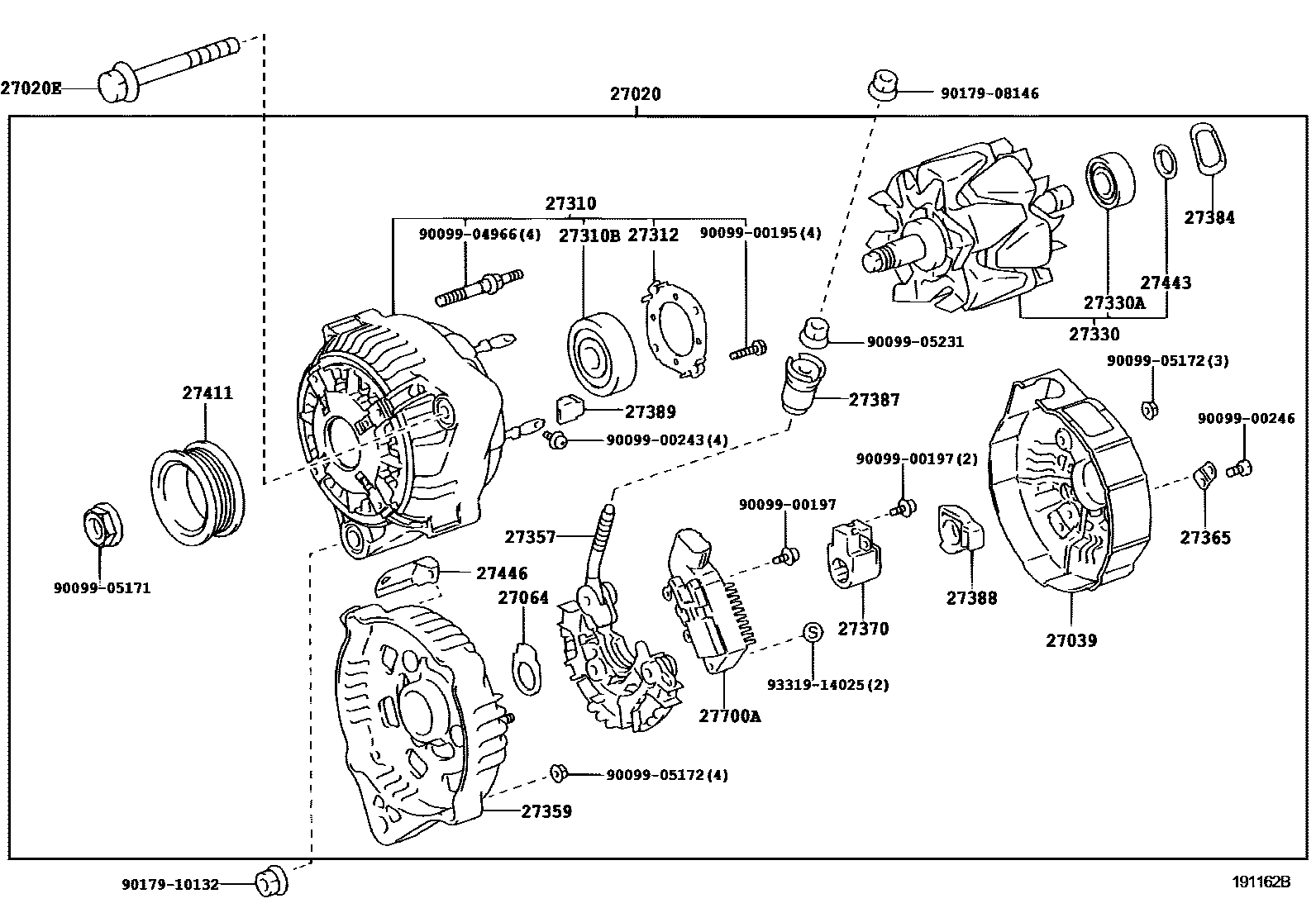

ALTERNATOR

0001 112V 80A,100A 0002 112V 100A 0003 112V 100A 0004 112V 130A

27020ALTERNATOR ASSY

main27060-46280i2JZGE..JCG11199805-200104

main27060-46290i1JZGE..JCG10199805-200104

main27060-46300i1JZGE..JCG15199912-200103

main27060-46301i1JZGE..JCG15200103-200104

sub27060-46300

main27060-46320i1JZFSE..JCG10,15200104

27020EBOLT(FOR ALTERNATOR)

main91512-61050i1JZFSE,2JZFSE..JCG1#199805-200104

27039COVER, ALTERNATOR REAR END

main27039-20130i1JZFSE..JCG10,15200104-200602

main27039-22050i1JZGE..JCG10200101-200104

12V 80A

main27039-46170i1JZGE,2JZGE..JCG11,15199805-200101

12V 100A

main27039-46190i1JZGE..JCG10199805-200101

12V 80A

sub27039-22050

main27039-46310i1JZGE,2JZGE..JCG11,15200101-200104

12V 100A

main27039-46360i1JZFSE..JCG10,15200602

27064SEAL, ALTERNATOR PLATE

main27064-20130i1JZFSE..JCG10,15200104-200602

main27064-42010i1JZFSE..JCG10,15200104-200602

main27064-42010i1JZGE,2JZGE..JCG1#199805-200104

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-46090i2JZGE..JCG11199805-200104

12V 100A

main27310-46160i1JZGE..JCG15199912-200104

12V 100A

main27310-46290i1JZGE..JCG10199805-200104

12V 80W

main27310-46350i1JZFSE..JCG10,15200104

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i1JZFSE..JCG10,15200104-200611

sub90099-10223

main90099-10192i1JZGE,2JZGE..JCG1#199805-200104

main90099-10223i1JZFSE..JCG10,15200612

27312PLATE, RETAINER

main27312-42010i1JZGE,2JZGE..JCG1#199805-200104

main27312-72100i1JZFSE..JCG10,15200104

27330ROTOR ASSY, ALTERNATOR

main27330-20130i1JZFSE..JCG10,15200104-200602

sub27330-33090

main27330-33090i1JZFSE..JCG10,15200602

main27330-46090i2JZGE..JCG11199805-200104

main27330-46290i1JZGE..JCG10199805-200104

sub27330-74550

main27330-50070i1JZGE..JCG15199912-200004

sub27330-20070

main27330-62180i1JZGE..JCG15200004-200104

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10194i1JZGE,2JZGE..JCG1#199805-200104

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-46310i1JZGE,2JZGE..JCG11,15199805-200104

main27357-46320i1JZGE..JCG10199805-200104

27359FRAME, ALTERNATOR RECTIFIER END

main27359-46100i1JZGE,2JZGE..JCG11,15199805-200104

12V 100A

main27359-46290i1JZGE..JCG10199805-200104

12V 80W

27365PLATE, TERMINAL

main27365-55080i1JZGE,2JZGE..JCG1#199805-200104

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1JZFSE..JCG10,15200104-200602

main27370-27060i1JZFSE..JCG10,15200602

main27370-75060i1JZGE,2JZGE..JCG1#199805-200104

27384WASHER

main27384-50030i1JZGE,2JZGE..JCG1#199805-200104

27387INSULATOR, TERMINAL

main27387-42040i1JZGE,2JZGE..JCG1#199805-200104

main27387-50310i1JZFSE..JCG10,15200104

27388COVER, ALTERNATOR BRUSH

main27388-42010i1JZGE,2JZGE..JCG1#199805-200104

27389INSULATOR, TERMINAL

main27389-42010i1JZGE,2JZGE..JCG1#199805-200104

27411PULLEY, ALTERNATOR

main27411-46080i1JZGE,2JZGE..JCG1#199805-200104

27443COVER, ALTERNATOR BEARING

main27443-0A020i1JZGE..JCG15199912-200004

main27443-63020i1JZGE..JCG15199912-200004

main27443-63020i1JZGE,2JZGE..JCG10,11199805-200104

main27443-63020i1JZGE..JCG15200004-200104

12V 100A

27446CLIP, ALTERNATOR CORD

main27446-46160i2JZGE..JCG11199805-200104

12V 100A

main27446-46230i1JZGE..JCG10199805-200104

12V 80W

main27446-46330i1JZGE..JCG15199912-200104

12V 100A

main27446-46350i1JZFSE..JCG10,15200104

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1JZGE,2JZGE..JCG1#199805-200104

main27700-46060i1JZGE..JCG15200008-200104

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905171

main90099-05171

9009905172

main90099-05172

9009905231

main90099-05231

9017908146

main90179-08146

9017910132

main90179-10132

9331914025

main93319-14025

32 parts on this diagram · 4 diagrams in section
