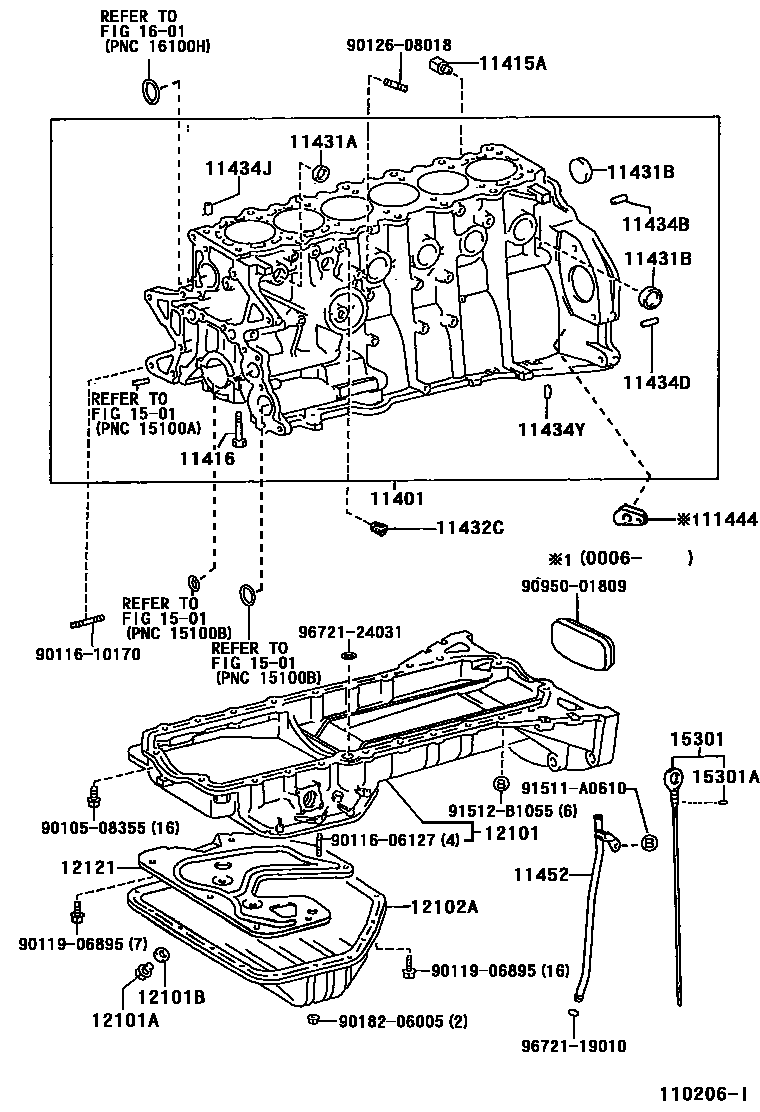

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
sub11401-49725
sub11401-49668
sub11401-49775
sub11401-49765
sub11401-49707
sub11401-49726
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11432CPLUG, W/HEAD TAPER SCREW, NO.3
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11444PLUG, HOLE
11452GUIDE, OIL LEVEL GAGE
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
1501
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
1601
9010508355
main90105-08355
9011606127
main90116-06127
9011610170
main90116-10170
9011906895
main90119-06895
9012608018
main90126-08018
9018206005
main90182-06005
9095001809
main90950-01809
91511A0610
main91511-A0610
91512B1055
main91512-B1055
9672119010
main96721-19010
9672124031
main96721-24031
32 parts on this diagram · 4 diagrams in section
