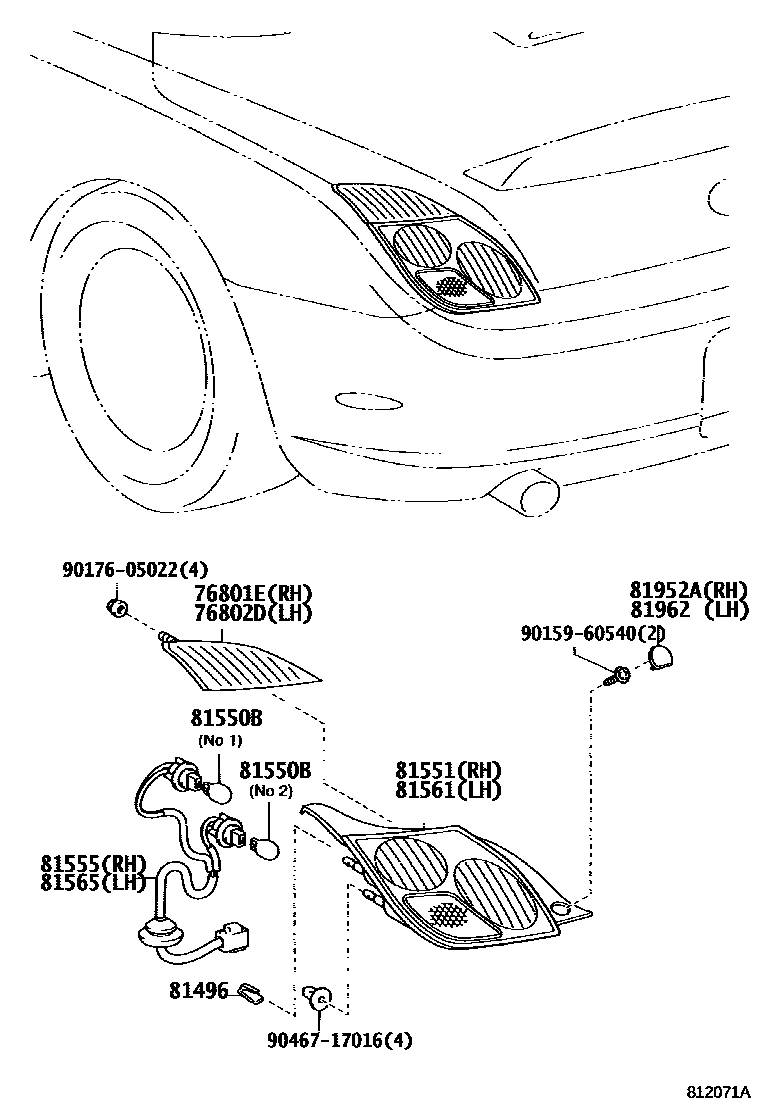

REAR COMBINATION LAMP

0001 1 0002 1

76801EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH

main76801-24010iUZZ40200104-200508

main76801-24020iUZZ40200508

76802DGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH

main76802-24010iUZZ40200104-200508

main76802-24020iUZZ40200508

81496GUIDE, REAR COMBINATION LAMP

main81496-24020×2iUZZ40200104-200508

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×2iUZZ40200104-200508

main90981-13044×2iUZZ40200104-200508

main90981-15021×2iUZZ40200508-201007

81551LENS, REAR COMBINATION LAMP, RH

main81551-24080iUZZ40200104-200508

main81551-24140iUZZ40200508-200610

main81551-24141iUZZ40200611

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24080iUZZ40200104-200508

main81555-24140iUZZ40200508-200610

81561LENS, REAR COMBINATION LAMP, LH

main81561-24080iUZZ40200104-200508

main81561-24140iUZZ40200508-200610

main81561-24141iUZZ40200611

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-24080iUZZ40200104-200508

main81555-24140iUZZ40200508-200610

81952ACOVER, REAR LAMP, RH

main81952-22010iUZZ40200104-200508

81962COVER, REAR LAMP, LH

main81952-22010iUZZ40200104-200508

9015960540

main90159-60540

9017605022

main90176-05022

9046717016

main90467-17016

13 parts on this diagram · 2 diagrams in section
